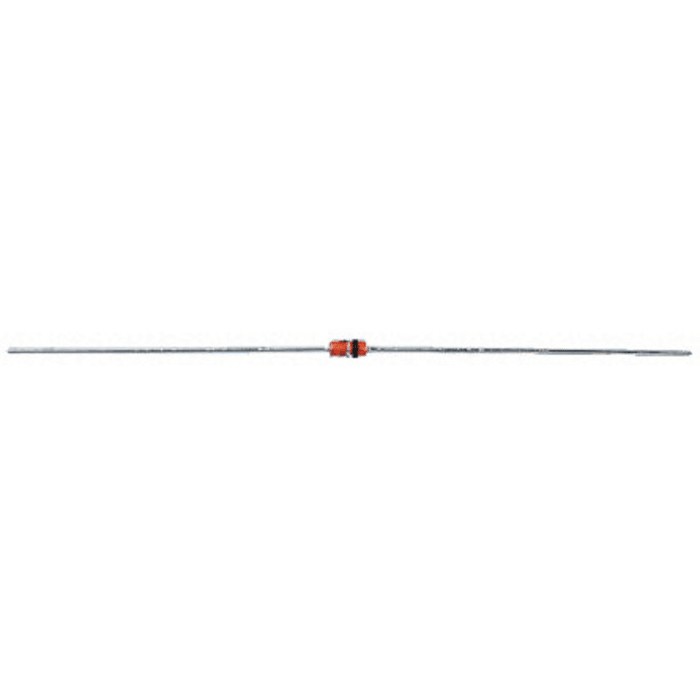

onsemi Zener Diode 12V 500mW Through Hole 2-Pin SOD-27 Single General Purpose 1N5242BTR

Free Delivery in India | Lowest Global Shipping Charges

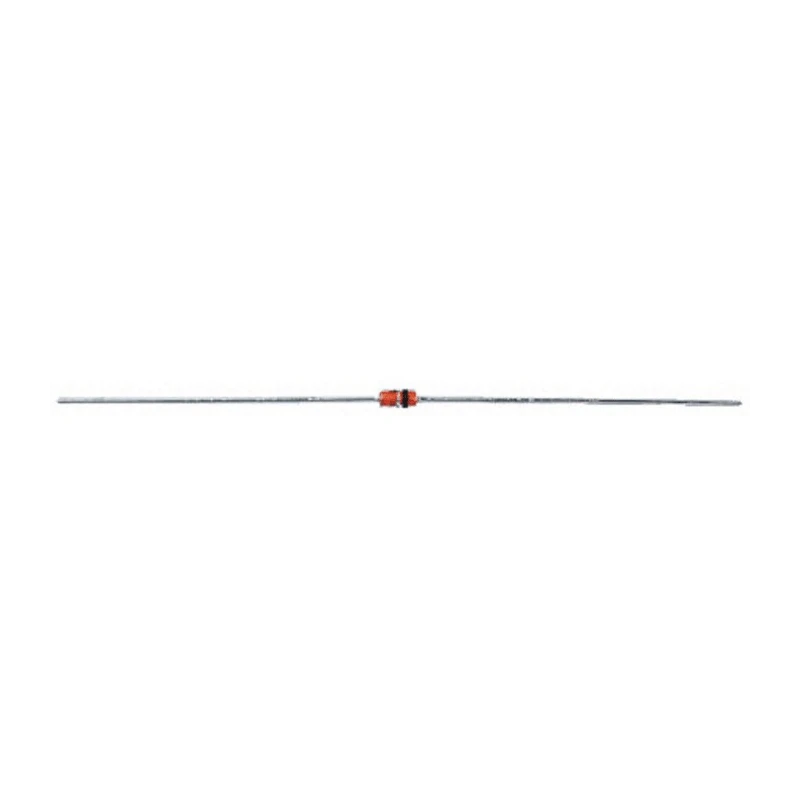

onsemi Zener Diode 12V 500mW Through Hole 2-Pin SOD-27 Single General Purpose 1N5242BTR

Name: onsemi Zener Diode 12V 500mW Through Hole 2-Pin SOD-27 Single General Purpose 1N5242BTR
Brand: onsemi
SKU: 374078
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.91mm
Length	4.56mm
Model	1N5242BTR
Mount Type	Through Hole
Series	1N52
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	12V
Zener Type	General Purpose
Maximum Zener Impedance	600Ω

Key Features

The diode has a nominal Zener voltage of 12 volts.
It features a power dissipation rating of 500 milliwatts.
The component is mounted through hole with a 2-pin SOD-27 package style.
The Zener voltage tolerance is ±5 percent, suitable for voltage regulation applications.
The device operates reliably between -65°C and 200°C temperature range.
Maximum reverse leakage current is 1 microampere ensuring efficient operation.
Maximum Zener impedance of 600 ohms supports stable voltage characteristics.
Test current is 20 milliamperes for standardized voltage testing.

Product Description

onsemi 1N5242BTR is a reliable, single element Zener diode with a nominal voltage of 12V designed for general purpose voltage regulation and reference applications.

This diode supports a maximum power dissipation of 500mW and comes in a compact 2-pin through hole SOD-27 package, allowing for easy mounting in various types of electronic assemblies.

The device has an operating temperature range from -65°C to 200°C, making it suitable for harsh industrial environments and a wide range of electronic applications. This Zener diode features a 5% voltage tolerance and a maximum reverse leakage current of only 1μA, ensuring precise voltage regulation and low leakage for sensitive circuits.

Its maximum Zener impedance of 600Ω and test current rating of 20mA guarantee stable voltage performance under typical operating conditions. The diode configuration is single element, ideal for discrete semiconductor uses.

Aftermarket and design engineers use it for voltage stabilization, clipping, and surge protection in circuits. Its through-hole mounting type and SOD-27 package type make it compatible with standard PCB designs. This Zener diode is suited for industrial, laboratory, electronic manufacturing, and power management sectors.

With no automotive certification, it is intended primarily for general purpose use in electronics projects and equipment. Browse more semiconductor components and Zener Diodes at EnvMart for reliable industrial sourcing.
