| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N5241BTR |
| Mount Type | Through Hole |
| Series | 1N52 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 22Ω |

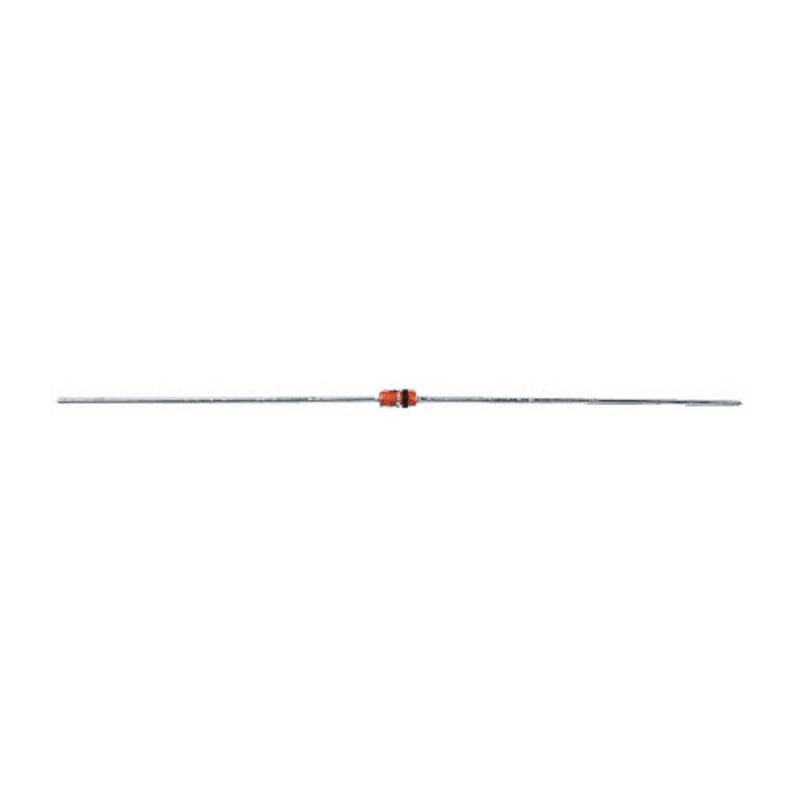

onsemi 1N5241BTR is a single element General Purpose Zener Diode designed for reliable voltage regulation in electronic circuits. It comes in a compact 2-pin SOD-27 through-hole package with a maximum power dissipation of 500 mW, making it suitable for various semiconductor applications.
This diode features a nominal Zener voltage of 11 V with a ±5% tolerance and a typical voltage temperature coefficient of 0.08%/°C, delivering consistent performance over a broad temperature range from -65°C to 200°C. Its low maximum reverse leakage current of 2 μA and maximum Zener impedance of 22 Ω make it an efficient component for protecting sensitive electronics.
The device's physical size includes a length of 4.56 mm and height of 1.91 mm, facilitating easy PCB integration. Tested at 20 mA, it suits voltage stabilization functions in electronics manufacturing, automotive circuitry, industrial controls, and power supplies.
Zener diodes like the onsemi 1N5241BTR are essential in industrial, laboratory, manufacturing, and electronic design settings, providing stable voltage references and protection against voltage surges. Their through-hole packaging supports robust assembly processes, including automated insertion on reels for efficiency.
The diode has a nominal Zener voltage of 11 V suitable for voltage regulation applications. It features a 2-pin SOD-27 package designed for reliable through-hole mounting. The device supports a maximum power dissipation of 500 mW and a test current of 20 mA.
Operating temperature range is wide, from -65°C up to 200°C ensuring robust performance. Maximum Zener impedance is 22 Ω contributing to stable voltage characteristics. Maximum reverse leakage current is limited to 2 μA enhancing device efficiency.
Compact physical dimensions with length 4.56 mm and height 1.91 mm. Zener voltage tolerance is ±5% providing precise voltage regulation. Ideal for electronic component assembly in industrial, automotive, and consumer electronics applications.
Series designation is 1N52, classifying it within a known range of Zener diodes. Explore the comprehensive range of Zener Diodes and semiconductor components at EnvMart to meet your technical and production needs.
