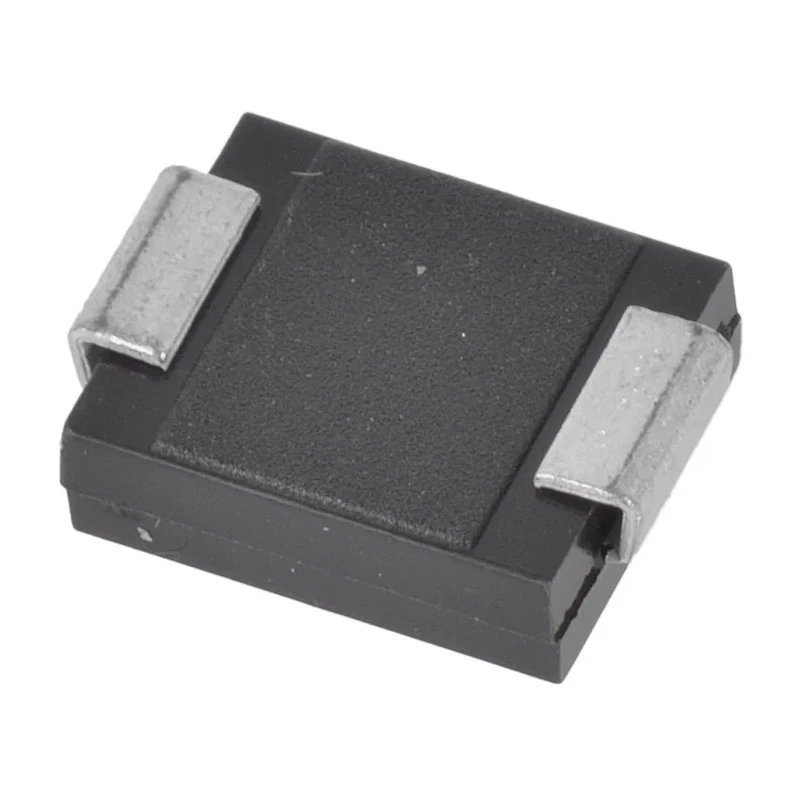

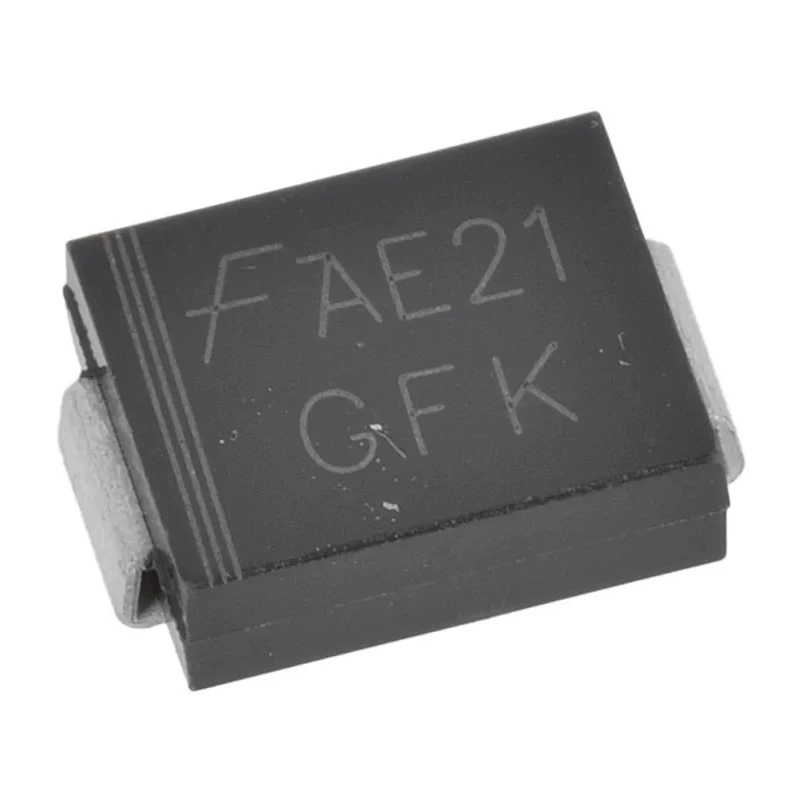

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount DO-214 Package SMCJ30A

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount DO-214 Package SMCJ30A

Name: Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount DO-214 Package SMCJ30A
Brand: Taiwan Semiconductor
SKU: 373750
Price: 0.36 USD
Availability: InStock



Category TVS Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.75mm
Length	7.15mm
Model	SMCJ30A
Width	6.25mm
Mount Type	Surface
Series	SMCJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	48.4V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	33.3V
Maximum Reverse Stand-off Voltage Vwm	30V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	31A
Maximum Reverse Leakage Current	5μA

Key Features

Designed for transient voltage suppression in electronic circuits.
Single diode configuration in a compact surface mount footprint.
Minimum breakdown voltage of 33.3 volts ensures reliable protection.
Maximum peak pulse current of 31 amps for robust surge handling.
Operates within temperature range from -55°C to 150°C.
Clamping voltage rated at 48.4 volts for effective voltage limiting.
Low maximum reverse leakage current of 5 microamperes for minimal power loss.
Compact dimensions with length 7.15 mm, width 6.25 mm, and height 2.75 mm.

Product Description

Taiwan Semiconductor SMCJ30A is a 1-Element Uni-Directional TVS diode designed to protect sensitive electronic circuits from voltage spikes and transient surges. Featuring a peak pulse power dissipation of 1.5 kW and a 2-pin DO-214 surface mount package, it offers reliable, compact, and efficient transient voltage suppression.

This diode supports a minimum breakdown voltage of 33.3 V, ensuring it activates at the correct voltage threshold to safeguard components. It presents a maximum peak pulse current of 31 A and a clamping voltage of 48.4 V for effective voltage control. With low maximum reverse leakage current of 5 μA, it minimizes additional power dissipation in circuits.

Operating in a wide temperature range from -55°C to 150°C, the SMCJ30A is suitable for diverse industrial and automotive electronic applications where robust durability and thermal stability are required.

The device's compact surface mount DO-214 package measures 7.15 mm in length, 6.25 mm in width, and 2.75 mm in height, making it suitable for high-density board layouts and automated assembly processes.

Single-element, uni-directional TVS Diode for effective surge protection. Surface mount DO-214 package compatible with automated PCB assembly. High peak pulse power of 1.5 kW for transient voltage suppression. Wide operating temperature range from -55°C to 150°C.

Low reverse leakage current for efficient electrical performance. FBI standard compliance ensures manufacturing and operational quality.

This transistor voltage suppressor diode is ideal for industrial electronics, power management systems, instrumentation, and automotive electronics requiring effective transient voltage protection to improve longevity and reliability.
