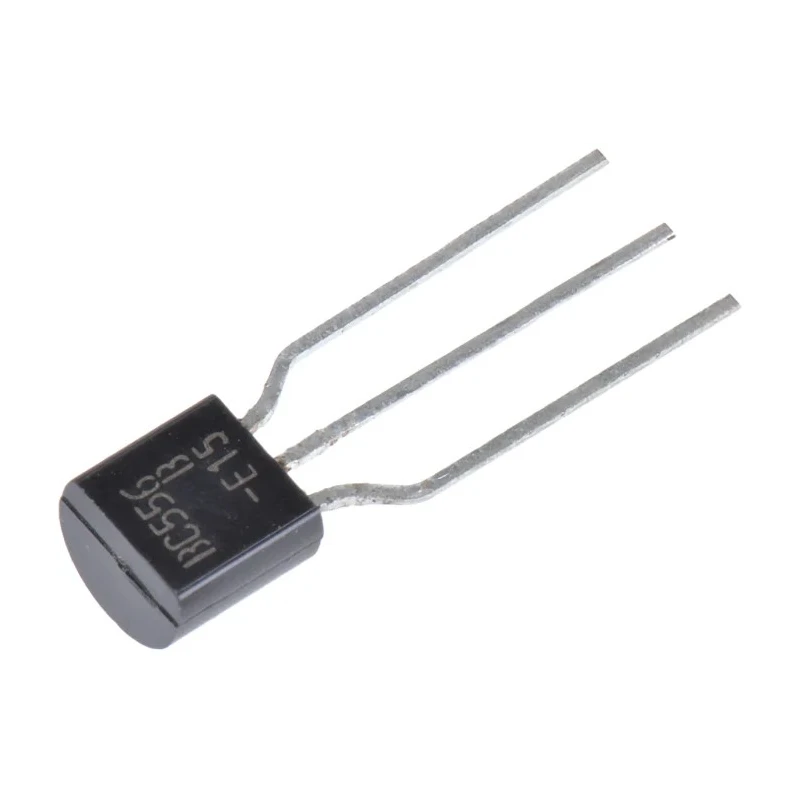

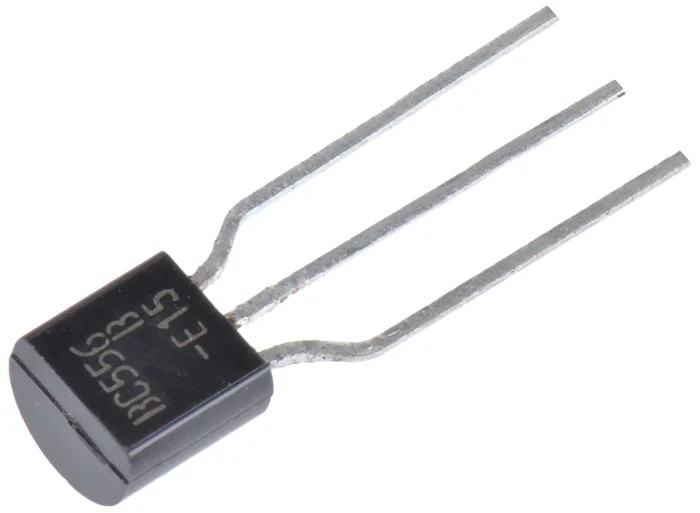

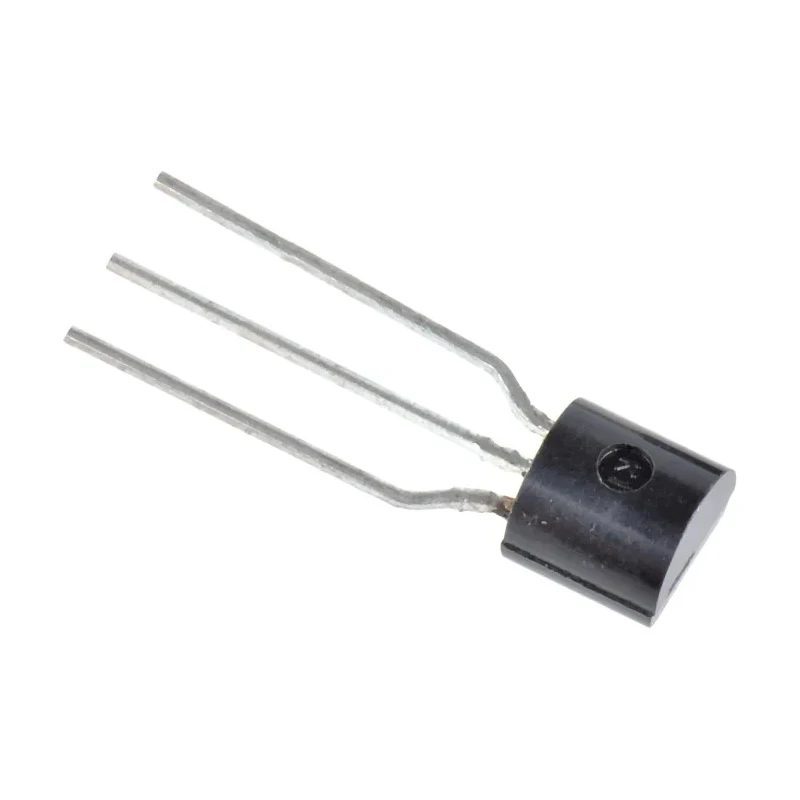

onsemi Small Signal PNP Transistor BC556BTFR 3-Pin TO-92, -65 V, -100 mA, 500 mW Power, Through Hole Mount BC556BTFR

onsemi BC556BTFR Small Signal PNP Transistor is a versatile bipolar junction transistor housed in a compact 3-pin TO-92 package designed for through hole mounting. It supports a maximum DC collector current of -100 mA and can tolerate a maximum collector-emitter voltage of -65 V. With a power dissipation capacity of 500 mW, this transistor delivers reliable performance in low power amplification circuits.

The device is built for robust operation across a wide temperature range from -55°C to 150°C. Its minimum DC current gain (hFE) is 120, providing efficient amplification for various signal processing applications. The maximum transition frequency of 10 MHz enables its use in moderate frequency circuits in industrial and electronic applications.

Physically, the transistor's small size, measuring 5.2 mm in length, 4.19 mm in width, and 18.03 mm in height, allows easy integration into compact circuit boards. Its single transistor configuration and PNP polarity offer standard transistor switching and amplification functions.

This component is ideal for use in industrial electronics, telecommunications, signal processing, and general-purpose amplification circuits. It is suitable for design engineers seeking reliable, small signal PNP transistors for diverse applications.

3-Pin TO-92 package with through hole mount facilitates easy assembly and soldering. Maximum DC collector current of -100 mA supports low current applications. Maximum power dissipation of 500 mW ensures safe operation under typical load conditions.

Wide operating temperature range from -55°C to 150°C provides durability in harsh environments. Minimum DC current gain (hFE) of 120 supports effective signal amplification. Maximum transition frequency of 10 MHz enables use in moderate frequency circuits.

Compact dimensions support space-constrained electronic designs. Designed for small signal applications in industrial and telecommunications circuits.

This onsemi BC556BTFR transistor is a reliable choice for engineers requiring a compact, efficient PNP transistor for diverse electronics solutions. Browse more bipolar transistor options and other semiconductor components at EnvMart.
