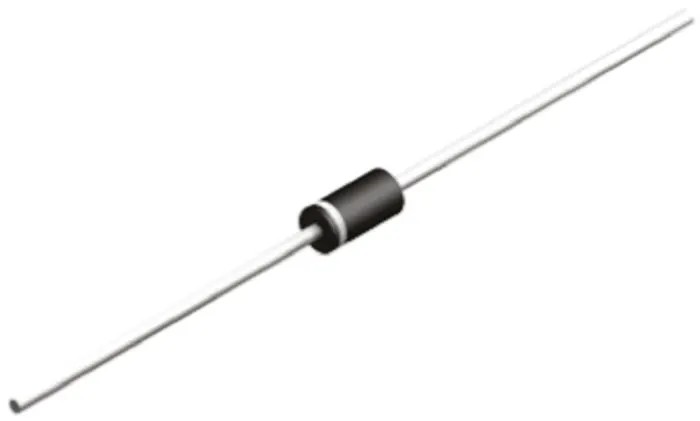

onsemi Zener Diode 15 V 3 W Through Hole 2-Pin Case 017AA 1N5929BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5929BRLG |
| Mount Type | Through Hole |
| Series | 1N5929B |
| Maximum Operating Temperature | 200°C |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 250nA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 9Ω |
Key Features
- This Zener diode features a single element configuration.
- It offers a voltage tolerance of ±5% ensuring voltage regulation accuracy.
- The device operates safely from -65°C up to 200°C ambient temperatures.
- Maximum Zener impedance is rated at 9Ω at a test current of 25 mA.
- The reverse leakage current is low, max 250 nA, enhancing reliability.
- The package type is Case 017AA suitable for standard through-hole mounting.
- This diode is designed as a voltage regulator in industrial and electronic circuits.
Product Description
onsemi 1N5929BRLG Zener Diode is a high reliability discrete semiconductor designed to provide voltage regulation at 15 V nominal Zener voltage, suitable for power dissipation up to 3 W. The device is configured as a single element diode supplied in a standard through hole 2-pin Case 017AA package, enabling easy integration in industrial and electronic PCB designs.
The diode maintains a voltage tolerance of ±5%, ensuring stable voltage regulation in demanding applications. It supports a maximum Zener impedance of 9Ω measured at a test current of 25 mA, which helps maintain consistent performance and low noise in voltage regulation tasks.
With a maximum operating temperature of 200°C and a minimum operating temperature of -65°C, the diode is suitable for harsh environments including industrial, manufacturing, power supply stabilization, and electronic instrumentation use cases.
The device exhibits a low maximum reverse leakage current of only 250 nA, contributing to efficient power management and minimal power loss. Its compact dimensions, a height of 2.7 mm and length of 5.2 mm, allow it to fit in tightly spaced PCB layouts while providing reliable mechanical robustness.
This Zener diode is ideal for use in industrial electronics, power regulation circuits, electronic instrumentation, and general semiconductor device applications where precision voltage control is required.
Single-element Zener Diode configuration for stable voltage regulation. Nominal Zener voltage rated at 15 V with ±5% tolerance. Maximum power dissipation of 3 W suitable for moderate power applications. Through-hole mounting with 2-pin Case 017AA package ensuring compatibility.
Operating temperature range from -65°C to 200°C for extended reliability. Test current at 25 mA with maximum Zener impedance of 9Ω guarantees performance. Low maximum reverse leakage current of 250 nA aids efficiency. Compact physical dimensions facilitate PCB assembly in constrained spaces.
onsemi products are recognized for their quality and reliability in manufacturing, laboratory instrumentation, and industrial electronics. This diode supports various applications requiring precise voltage regulation and protection.
Explore more semiconductor components and discrete devices in EnvMart's extensive range to support your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 15 V, with a voltage tolerance of ±5%.
This model can dissipate a maximum power of 3 W, making it suitable for moderate power applications.
The diode operates within a temperature range of -65°C to 200°C, allowing it to function in harsh environments.
The maximum reverse leakage current for this diode is 250 nA, contributing to efficient power management.
It features a through-hole mounting design, specifically in a 2-pin Case 017AA package.
The maximum Zener impedance is rated at 9Ω at a test current of 25 mA.
The diode has a height of 2.7 mm and a length of 5.2 mm, making it compact for PCB layouts.
This diode is configured as a single element Zener diode, designed for stable voltage regulation.
It is designed for voltage regulation in industrial electronics, power supply stabilization, and electronic instrumentation.
The Zener diode is manufactured by onsemi, recognized for quality in semiconductor devices.
The country of origin for this Zener diode is India.
This model belongs to the 1N5929B series of Zener diodes.
