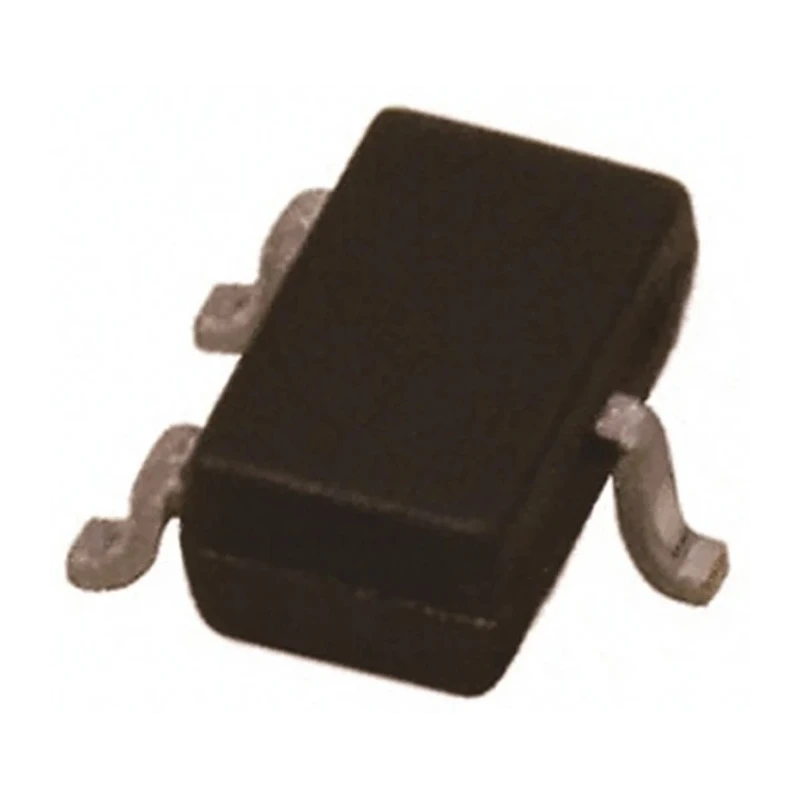

Nexperia 5.6 V Avalanche Zener Diode Single 250 mW 3.5 % Tolerance Surface Mount SOT-23 PLVA656A,215

Nexperia PLVA656A,215 is a single avalanche Zener diode with a nominal Zener voltage of 5.6 V. This surface mount device comes in a small SOT-23 package optimized for space-constrained PCB layouts. The diode supports a maximum power dissipation of 250 mW, making it ideal for voltage regulation and reference applications in various electronic circuits.

Featuring a 3.5% voltage tolerance, this Zener diode maintains reliable voltage stability under varying electrical conditions. The test current is specified at 0.25 mA, with a maximum reverse leakage current limited to 1 µA, ensuring minimal leakage and efficient operation. The device can safely operate at temperatures up to 150°C, suitable for automotive and industrial electronics.

The PLVA656A,215 diode exhibits a typical voltage temperature coefficient of 1.9 mV/K, allowing it to function accurately over temperature fluctuations. It complies with EU and CN RoHS environmental standards and meets the automotive-grade AEC-Q101 certification, highlighting its robustness for automotive use cases.

The compact dimensions, with a height of 1.1 mm and length of 3 mm, contribute to an easy integration on printed circuit boards where space is limited. Single avalanche Zener diode configuration with 5.6 V nominal voltage.

Surface mount package type SOT-23 with three pins for compact PCB integration. Maximum power dissipation rated at 250 mW ensuring efficient thermal management. Voltage tolerance of ±3.5% for stable and precise voltage regulation.

Test current of 0.25 mA with maximum reverse leakage current of 1 microampere. Operating temperature up to 150°C suitable for demanding electronic environments. Typical voltage temperature coefficient of 1.9 mV/K to maintain performance across temperature variations.

Compliant with EU and CN RoHS standards and qualified to automotive AEC-Q101 standard. Compact height of 1.1 mm and length of 3 mm providing versatile surface mount design. Manufactured in China ensuring consistent quality from a reputed semiconductor brand.

This Zener Diode is optimized for industrial, automotive, electronics manufacturing, and laboratory applications requiring precise voltage regulation and protection. Explore more high-quality semiconductors and electronic components from Nexperia and other top brands at EnvMart for reliable sourcing and technical excellence.
