onsemi 1N5956BRLG 200 V Zener Diode Single 3 W 5% Through Hole 2-Pin DO-41 1N5956BRLG

Free Delivery in India | Lowest Global Shipping Charges

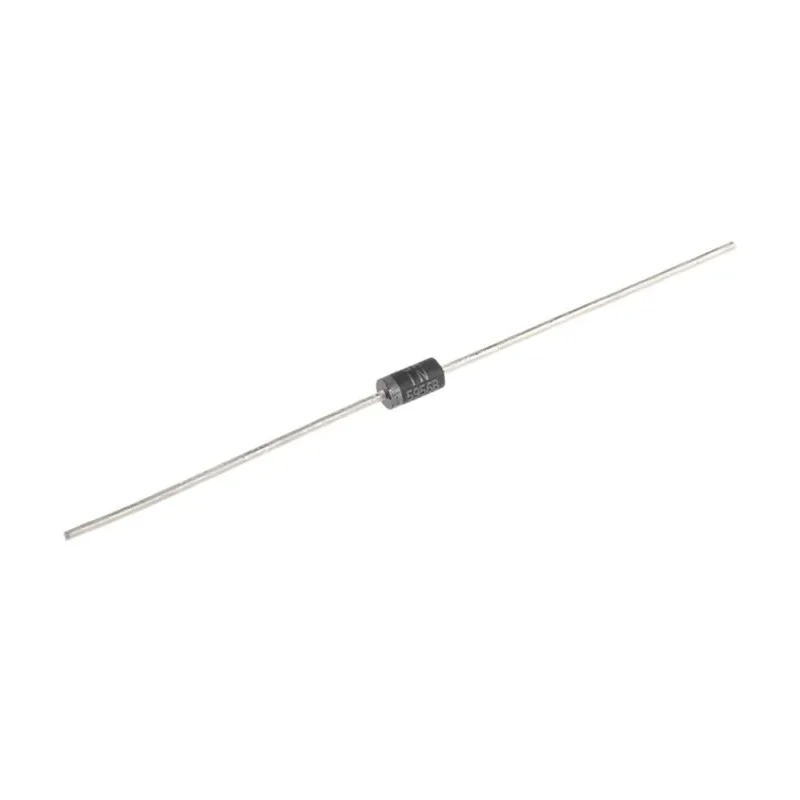

onsemi 1N5956BRLG 200 V Zener Diode Single 3 W 5% Through Hole 2-Pin DO-41 1N5956BRLG

Name: onsemi 1N5956BRLG 200 V Zener Diode Single 3 W 5% Through Hole 2-Pin DO-41 1N5956BRLG
Brand: onsemi
SKU: 373134
Price: 0.13 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.7mm
Length	5.2mm
Model	1N5956BRLG
Mount Type	Through Hole
Series	1N5913B
Maximum Operating Temperature	200°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	3W
Diode Configuration	Single
Test Current It	1.9mA
Maximum Reverse Leakage Current	250nA
Nominal Zener Voltage Vz	200V
Zener Type	Voltage Regulator
Maximum Zener Impedance	1200Ω

Key Features

The diode features a power dissipation capacity of 3 watts for effective heat handling.
Its Zener voltage tolerance is ±5%, ensuring stable voltage regulation.
Constructed with a DO-41 package type for through-hole mounting convenience.
Designed with 2 pins and a single diode configuration for simple circuit integration.
Operates reliably within a temperature range of -65°C to 200°C for various industrial environments.
Maximum Zener impedance is 1200 ohms to maintain performance under test current.
Minimal reverse leakage current of 250 nanoamps ensures energy efficiency.
Compact dimensions of 5.2 mm length and 2.7 mm height optimize PCB space utilization.

Product Description

onsemi 1N5956BRLG Zener Diode Single 3 W 5% Through Hole 2-Pin DO-41 is a semiconductor device engineered to provide stable voltage regulation in electronic circuits. This diode features a nominal Zener voltage of 200 V, capable of handling a maximum power dissipation of 3 W, making it suitable for various power regulation applications.

Designed as a single diode with a DO-41 package, it offers ease of through-hole mounting with two pins for secure PCB integration. Its voltage tolerance of ±5% guarantees precise voltage stabilization, while the maximum Zener impedance of 1200 ohms supports consistent performance at the specified test current of 1.9 mA.

The diode exhibits very low maximum reverse leakage current of 250 nA, enhancing efficiency and reliability in sensitive electronic applications. It functions effectively across a broad temperature range from -65°C to 200°C, suitable for industrial, automotive, and laboratory uses.

Compact dimensions measuring 5.2 mm in length and 2.7 mm in height optimize printed circuit board real estate without compromising thermal and electrical performance. The device is part of the 1N5913B series and does not carry automotive-specific standards but meets general industrial semiconductor requirements.

The diode configuration is single element per chip designed for voltage regulation control. Optimal for power dissipation demands up to 3 watts with steady 200 V Zener voltage. Installation is facilitated by the through-hole mounting design and DO-41 package.

Temperature specifications assure durability across harsh environmental conditions. Compact size ensures compatibility with a wide range of PCB layouts and designs. Ideal for electronic components, discrete semiconductor, power and connector applications.

This onsemi Zener diode is suitable for demanding industrial electronics, power supply regulation, and voltage reference tasks. It supports manufacturing and repair operations requiring durable and precise voltage regulators. Explore additional semiconductor components and electronic parts at EnvMart for comprehensive solutions.

Explore more products in our Zener Diodes category.
