| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN20NG00D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 20nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 370mA |
| Pin Count | 2 |
| Maximum DC Resistance | 270mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 4GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

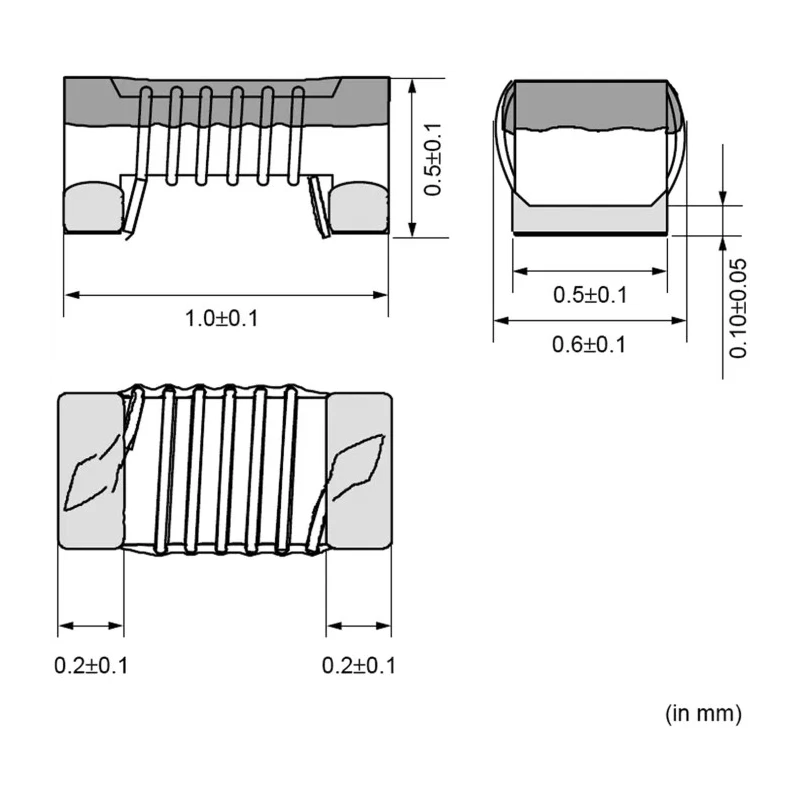

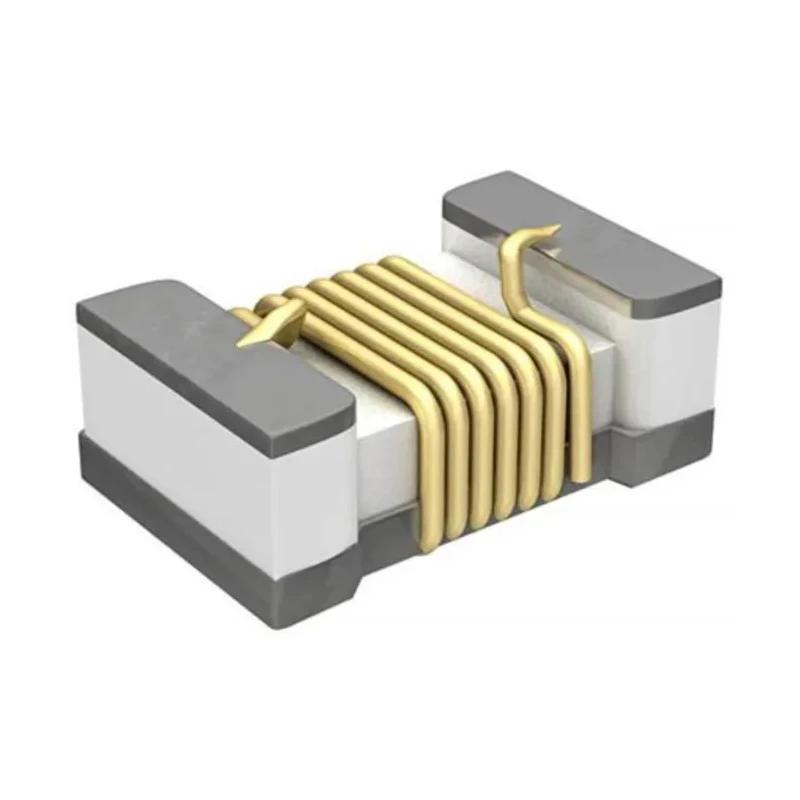

Murata LQW15AN20NG00D is a high-quality unshielded wirewound surface mount inductor designed for high-frequency circuit applications. It possesses a compact 0402 package with precise 20 nH inductance and a tight tolerance of ±2 %. This inductor features a ferrite core that supports stable inductance characteristics and low core loss, making it suitable for VHF and UHF range applications.
The device supports a maximum DC current of 370 mA and offers a maximum DC resistance of 270 mΩ to minimize power dissipation. It operates effectively over a broad temperature range from -55°C to 125°C, catering to demanding environmental conditions. The termination style is solder, enabling soldering onto PCBs with automated surface mount technology processes.
Typical applications include wireless communication devices such as Bluetooth, GSM, and WLAN equipment where low inductance tolerance and high self-resonant frequency (up to 4 GHz) are critical. The inductor exhibits a minimum quality factor (Q) of 25, ensuring signal integrity and performance in RF circuits.
Manufactured in Japan and fully RoHS compliant, the LQW15AN20NG00D is distributed on paper tape reels, facilitating efficient insertion into production machinery and improving manufacturing throughput and yield.
Unshielded wirewound construction with ferrite core. Compact 0402 surface mount package size. Inductance of 20 nH with ±2 % tolerance. 370 mA maximum DC current rating. 270 mΩ maximum DC resistance for low power loss. Wide operating temperature range: -55°C to 125°C.
Minimum quality factor (Q) of 25 at high frequencies. Maximum self-resonant frequency of 4 GHz. Solder termination style suitable for automated PCB assembly. RoHS compliant and manufactured in Japan. Supplied on paper tape for manufacturing ease.
This Murata surface mount inductor series is ideal for industrial, telecommunications, and electronics manufacturing sectors requiring reliable, high-performance inductors for RF and high-frequency applications. Browse the full range of Surface Mount Inductors on EnvMart for comprehensive solutions.
