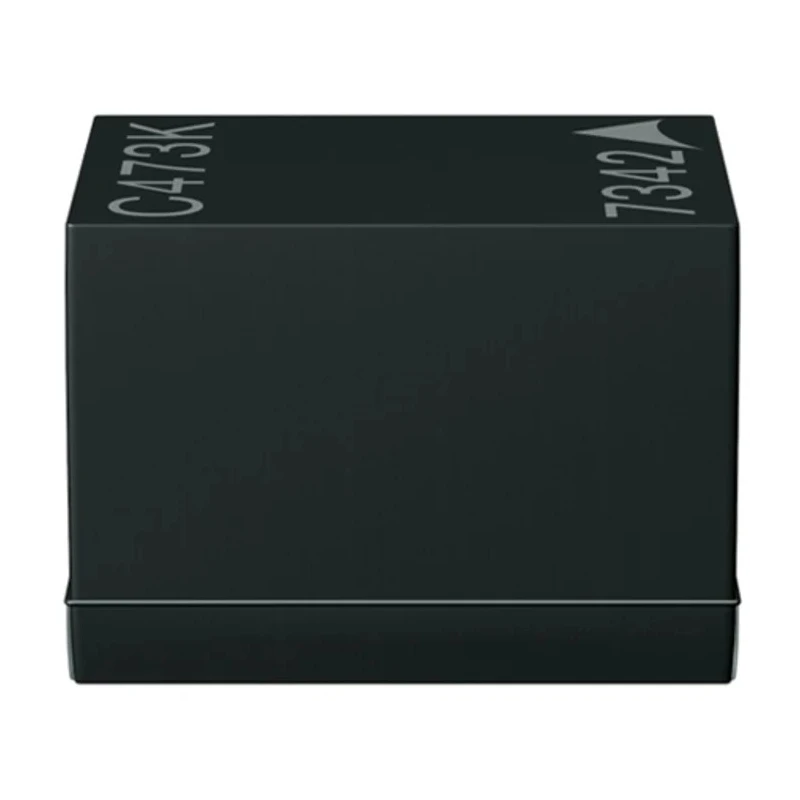

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 220 μH ±10 % 115 mA Idc Q:30 B82432C1224K000

TDK presents the B82432C1224K000 SIMID Series shielded wirewound surface mount inductor with a ferrite core, featuring a nominal inductance of 220 μH with ±10 % tolerance. This component supports a maximum DC current of 115 mA and exhibits a high-quality factor (Q) of 30, making it ideal for applications requiring efficient energy storage and filtering.

The inductor is designed in a compact 1812 package with precise dimensions of 4.5 mm length, 3.2 mm height, and 3.2 mm depth, optimized for surface mount assembly. The ferrite core provides effective electromagnetic shielding, minimizing interference in sensitive electronic circuits.

Operating reliably over a broad temperature range from -55°C to 150°C, this inductor maintains stable performance even in harsh environmental conditions. It features a maximum DC resistance of 7.5 ohms, ensuring minimal energy loss during operation.

Manufactured with molded wirewound construction, the device complies with RoHS standards, reflecting its environmentally-friendly design. Its maximum self-resonant frequency of 6 MHz allows suitability for various high-frequency industrial and automotive electronics applications.

This TDK SIMID inductor is well-suited for use in filtering power supply voltages, coupling and decoupling signals, antenna systems, telecommunications, automotive electronics, and general industrial electronics. Its packaging on tape and reel format enables efficient automated PCB assembly.

Country of origin: Hungary. Compact 1812 surface mount package for easy PCB integration. Ferrite core shields electromagnetic interference effectively. Wide operating temperature range: -55°C to 150°C. Low DC resistance of 7.5 ohms reduces power loss.

High quality factor of 30 for superior performance. RoHS compliant with environmentally friendly materials. Molded wirewound construction enhances durability. Maximum self-resonant frequency of 6 MHz for varied frequency use.

Tape and reel packaging supports automated manufacturing. Manufactured in Hungary maintaining high quality standards. Explore our Electronics & Electricals category for more Surface Mount Inductors and related components to meet your industrial and laboratory requirements.
