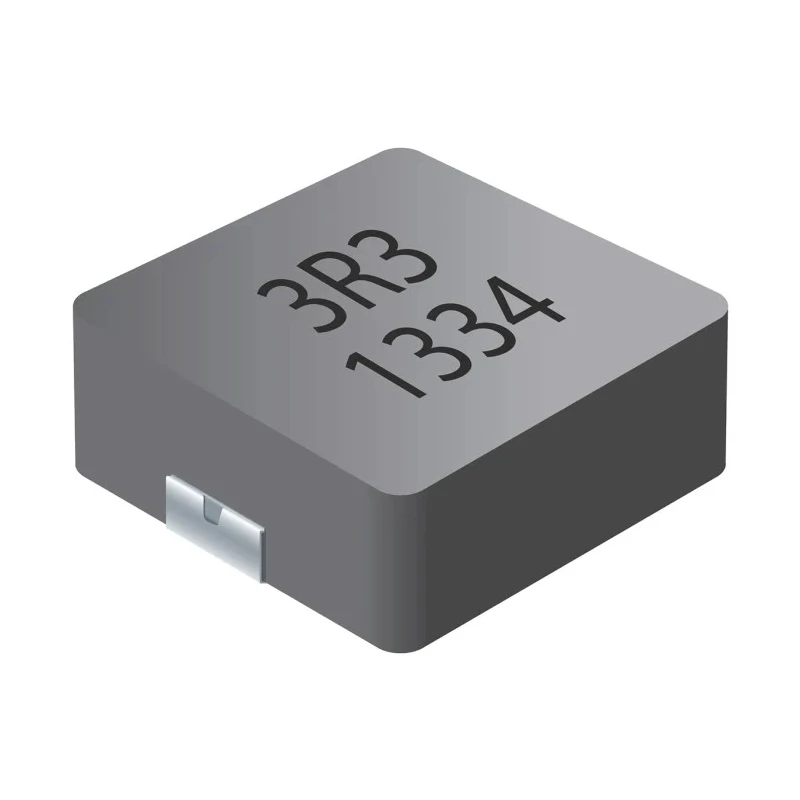

Bourns Shielded Wirewound Surface Mount Inductor 3.3 μH ±20% 18 A IDC Carbonyl Powder Core SRP1265A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.2mm |
| Length | 13.5mm |
| Model | SRP1265A |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRP1265A |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 1265 |
| Maximum DC Current | 18A |
| Pin Count | 2 |
| Maximum DC Resistance | 6.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features shielded construction for minimized electromagnetic interference.
- Constructed with a high saturation carbonyl powder core for enhanced performance.
- AEC-Q200 qualified ensuring automotive industry reliability.
- Suitable for high current applications up to 18 A DC.
- RoHS compliant and halogen free for environmental safety.
- Wirewound construction providing stable inductance characteristics.
- Maximum operating temperature up to 150°C for harsh environments.
- Packaged in reel form factor with a 1265 case size.
Product Description
Bourns SRP1265A is a magnetically shielded wirewound surface mount power inductor designed with a carbonyl powder core, offering a nominal inductance of 3.3 μH with a tolerance of ±20%. The inductor supports a maximum DC current of 18 A, making it suitable for high current applications in demanding environments.
This device features a compact 1265 package case with dimensions of length 13.5 mm, height 6.2 mm, and depth 12.5 mm. It incorporates solder termination style and a shielded construction to reduce electromagnetic interference, which is critical for automotive and industrial electronics.
Certified to the automotive AEC-Q200 standard, the SRP1265A ensures reliability and durability under rigorous operating conditions, including a minimum operating temperature of -40°C and maximum operating temperature of 150°C. The maximum DC resistance is low at 6.8 mΩ, enhancing efficiency in power applications.
The core material used is carbonyl powder, which provides high saturation current performance and a minimum quality factor of 20 at relevant frequencies. The maximum self-resonant frequency is rated at 20 MHz. This inductor is molded and RoHS compliant, ensuring environmental and safety standards compliance.
Typical applications include automotive systems such as driver assistance, information and entertainment systems, lighting systems, as well as power supplies and DC-DC converters in industrial and commercial sectors. The product is supplied on reels for ease of automated assembly.
Shielded wirewound construction reduces EMI. Carbonyl powder core for high saturation current handling. AEC-Q200 qualified for automotive compliance. Wide operating temperature range from -40°C to 150°C. Low DC resistance of 6.8 mΩ for efficient power delivery.
Molded design ensures mechanical robustness. Compliance with RoHS and halogen-free standards. Ideal for high current DC-DC converters and automotive systems. Reel packaging suited for automated PCB assembly lines.
Explore the Electronics & Electricals category for advanced inductors and surface mount solutions suited for automotive, industrial, and commercial electronics manufacturing at EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 3.3 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 18 A, making it suitable for high current applications.
The dimensions of this unit are 13.5 mm in length, 6.2 mm in height, and 12.5 mm in depth.
The maximum operating temperature for the SRP1265A is 150°C.
Yes, it is AEC-Q200 qualified, ensuring reliability for automotive applications, and it is also RoHS compliant.
This model uses a carbonyl powder core, which provides high saturation current performance.
The maximum self-resonant frequency is rated at 20 MHz.
The termination style for this inductor is solder.
The minimum operating temperature is -40°C, allowing it to function in harsh environments.
The maximum DC resistance is low at 6.8 mΩ, enhancing efficiency in power applications.
This inductor features a wirewound construction, providing stable inductance characteristics.
It is packaged in a reel form factor, which is suitable for automated assembly processes.
