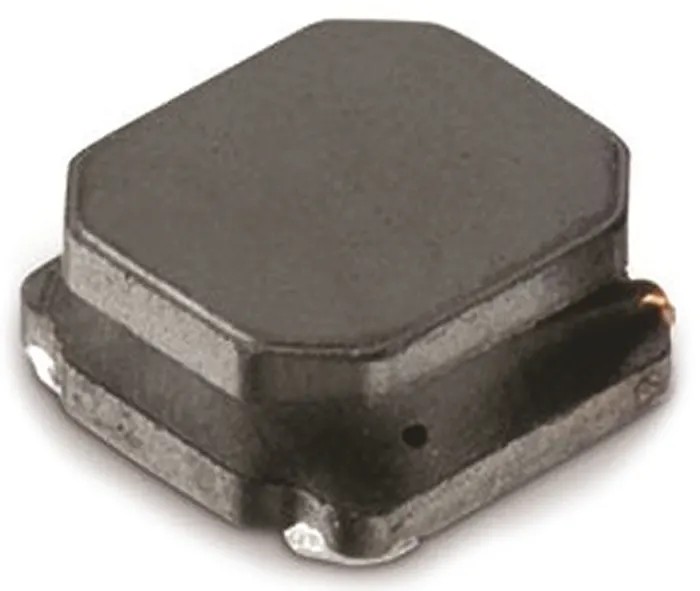

Wurth Elektronik WE-LQS 0804 Shielded Wirewound Surface Mount Inductor with Ferrite Core 33 μH Semi Shielded ±20 74404084330

Wurth Elektronik 74404084330 is a shielded wirewound surface mount inductor featuring a ferrite core with 33 μH inductance and semi shielded construction. Designed for power electronics and switching controllers, this inductor balances robustness and compact size in an 0804 package case measuring 8mm by 4.2mm by 8mm.

Its ferrite core and semi shielded design help reduce electromagnetic interference while maintaining efficient power handling up to a maximum DC current of 1.8A. It features an inductance tolerance of ±20 percent and a low maximum DC resistance of 97 milliohms, supporting stable operation across a wide frequency range with a maximum self resonant frequency of 7.8 MHz.

Engineered to meet the automotive AEC-Q200 standard and internationally recognized environmental standards RoHS and REACH, this inductor supports operating temperatures from -40°C to 125°C. The surface mount termination style and tape and reel packaging facilitate automated manufacturing processes and efficient PCB assembly.

This WE-LQS series magnetic shielded power inductor excels in portable and compact power supply applications such as PDAs, smartphones, digital cameras, and televisions that demand high efficiency and stability. Its moulded semi shielded construction assures durability and integrates reliably in DC/DC converter circuits and shock-resisting applications.

Designed as a wirewound inductor with magnetic shielding for surface mounting applications. Features a compact 0804 package case with dimensions 8mm length, 4.2mm height, and 8mm depth. Maximum DC current rating of 1.8A supports robust power handling.

Inductance tolerance is ±20 percent with a maximum DC resistance of 97 milli-ohms. Operates reliably within temperature range of -40°C to 125°C. Complies with automotive standard AEC-Q200 and environmental standards including RoHS and REACH.

Constructed with a ferrite core and semi shielded to reduce electromagnetic interference. Termination style is surface mount suitable for PCB assembly with tape and reel packaging. Self resonant frequency reaches up to 7.8 MHz, ideal for power inductors in switching controllers.

Suitable for high efficiency portable power applications including PDAs, smartphones, digital cameras, and televisions. Explore more products in the Surface Mount Inductors category to find compatible and complementary electronic components for your industrial and commercial projects.
