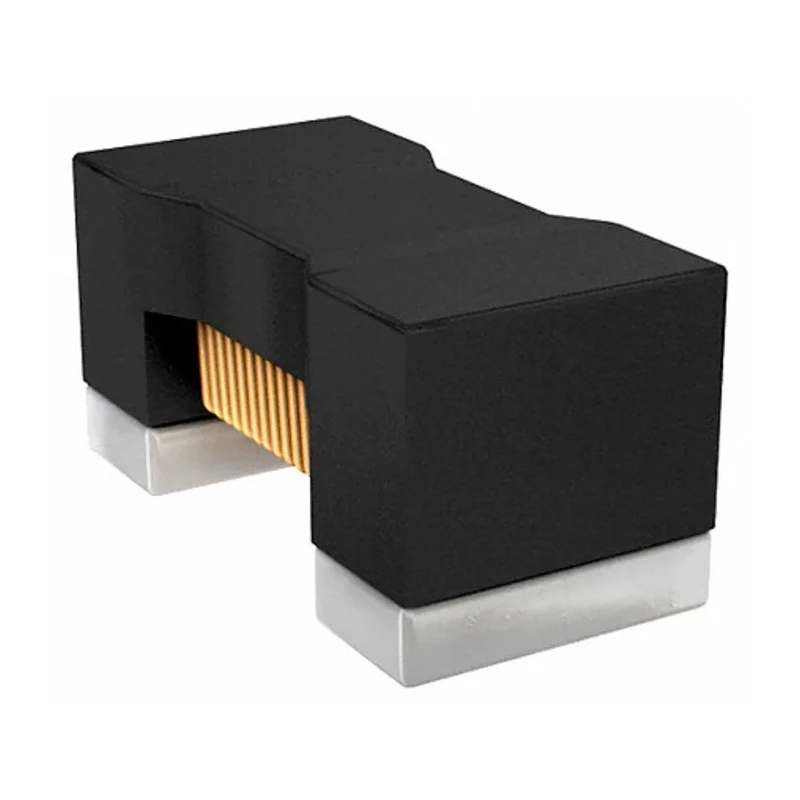

Murata 0603 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 36 nH ±2% 400 mA Idc Q40 LQW18AN36NG00D

Murata LQW18AN36NG00D is a 0603 size unshielded wirewound surface mount inductor featuring a ferrite core that provides stable inductance of 36 nH with ±2% tolerance and a minimum quality factor of 40. It supports a maximum DC current of 400 mA and has a maximum DC resistance of 260 mΩ, making it suited for high frequency applications.

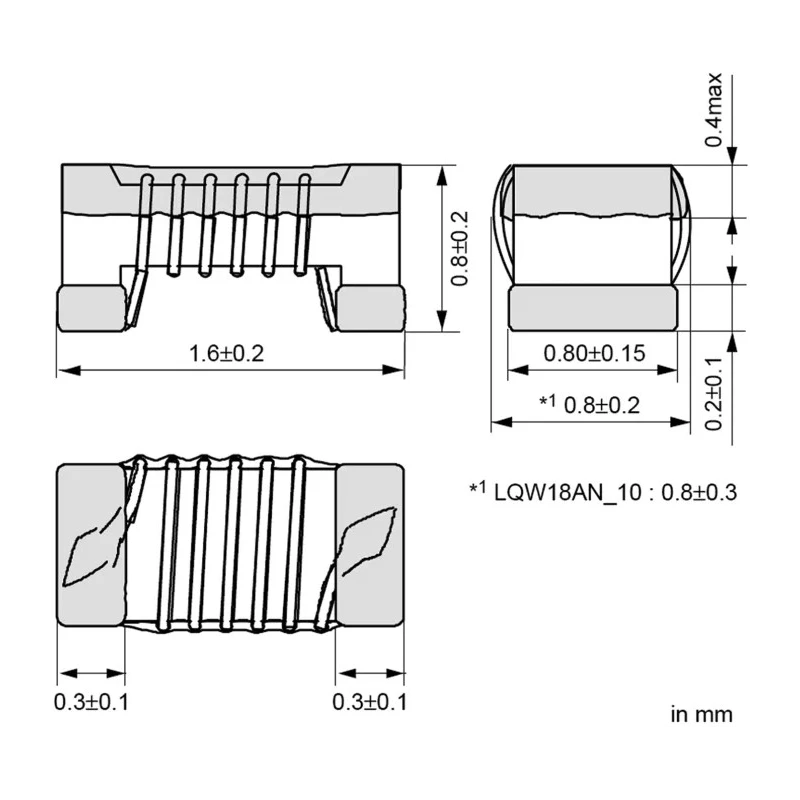

The compact dimensions are 1.6 mm length, 0.8 mm height, and 0.8 mm depth in a molded form factor with solder terminations for reliable surface mounting. The inductor operates over a wide temperature range from -55°C to 125°C and complies with RoHS standards, reflecting environmentally responsible manufacturing.

This series is designed primarily for use in VHF and UHF frequency circuits such as wireless telecommunications equipment including Bluetooth, GSM, and WLAN modules. Its high resonance frequency of 2.9 GHz ensures minimal signal loss and better circuit performance in demanding industrial and commercial electronic systems.

Compact 0603 package with precise inductance tolerance. Ferrite core material for low losses at high frequencies. 400 mA current handling suitable for various telecom applications. Wide operating temperature and RoHS compliant.

Wirewound construction delivering high quality factor and resonance frequency. Solder termination for secure surface mounting on PCBs. Ideal for high frequency wireless communication circuit designs. Explore more Surface Mount Inductors and related electronic components at EnvMart to find precise solutions that meet your industrial and laboratory requirements.
