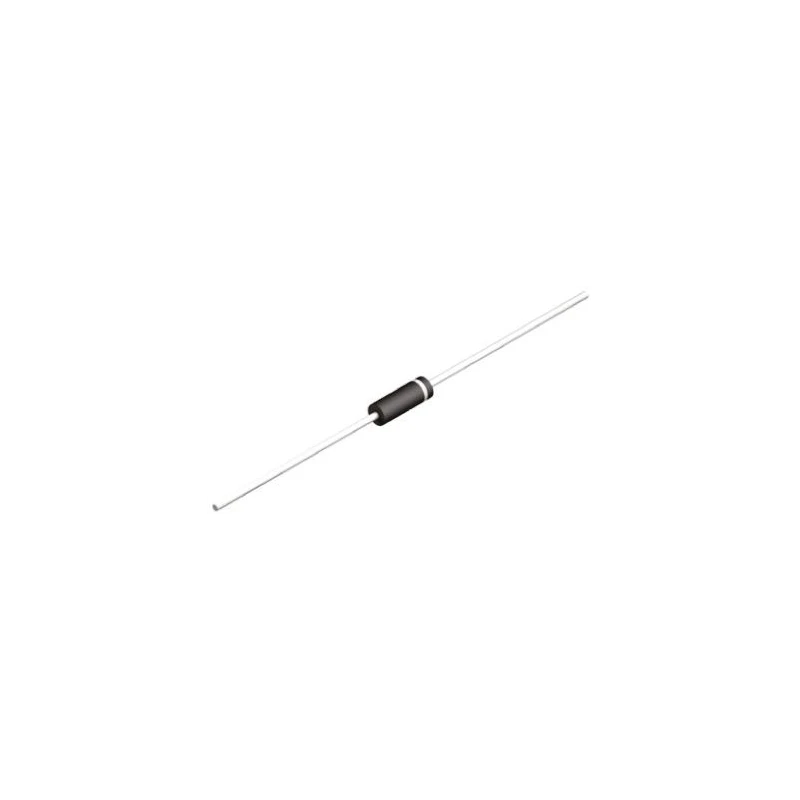

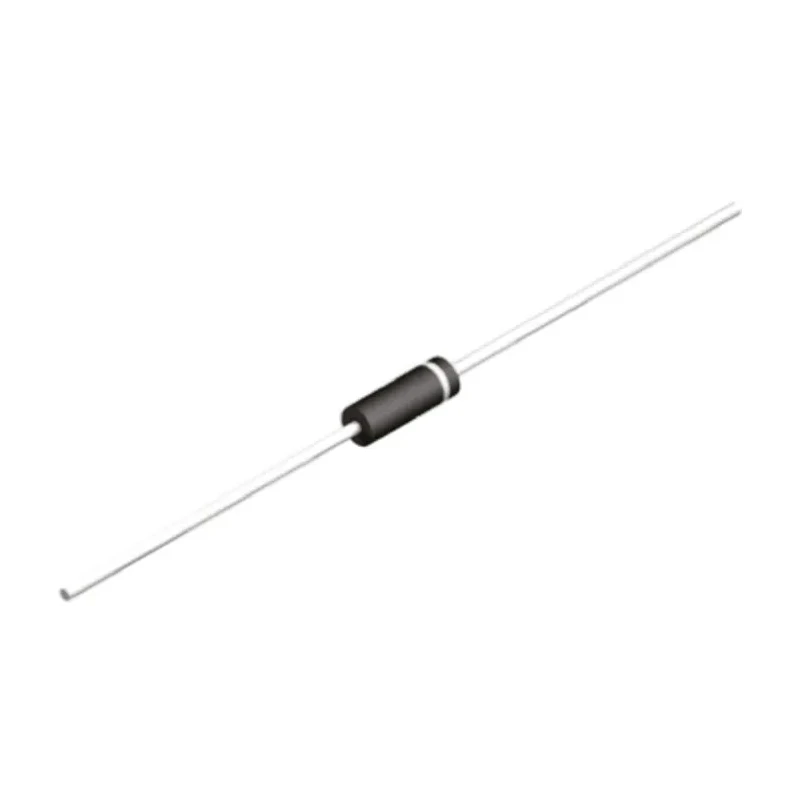

onsemi 62 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5372BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 62 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5372BRLG

Name: onsemi 62 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5372BRLG
Brand: onsemi
SKU: 373127
Price: 0.23 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5372BRLG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	62V
Zener Type	Voltage Regulator
Maximum Zener Impedance	400Ω

Key Features

This diode features a nominal Zener voltage of 62 V with a tolerance of 5%.
It supports a maximum power dissipation of 5 W for reliable voltage regulation.
The DO-15 package type enables easy through-hole mounting on circuit boards.
Maximum operating temperature ranges from -65°C to 200°C, suitable for various environments.
Maximum Zener impedance is 400 ohms, ensuring stable voltage regulation.
The device has a 20 mA test current and maximum reverse leakage current of 500 nA.
Physical dimensions include length of 8.89 mm and height of 3.68 mm.
It belongs to the 1N53 series of Zener diodes offered by onsemi.

Product Description

onsemi 1N5372BRLG Zener Diode is a single-element, through hole voltage regulator diode designed for industrial, electronic, and power management applications. This device features a nominal Zener voltage of 62 V with a 5% voltage tolerance, offering precise voltage clamping in power supplies and voltage regulation circuits.

With a maximum power dissipation of 5 W and a maximum operating temperature range from -65°C to 200°C, it is suitable for use in harsh environmental conditions common in industrial and commercial electronic assemblies.

The diode is housed in a DO-15 package, providing secure through-hole mounting with its 2-pin configuration. Its maximum Zener impedance of 400 ohms and low reverse leakage current of 500 nA ensure efficient and stable voltage regulation performance.

This Zener diode has a test current (It) of 20 mA for standard testing of characteristics. Physical measurements include a length of 8.89 mm and a height of 3.68 mm, facilitating easy integration in PCB designs. The diode is part of the onsemi 1N53 series, which encompasses a range of 5 W Zener diodes with reliable specifications.

It provides accurate voltage regulation in electronic, industrial automation, telecommunications, and power supply circuits. The device is robust for use in various applications including laboratory instrumentation, manufacturing equipment, and commercial electronics.

Available as new condition components, these Zener Diodes meet modern semiconductor standards and enhance circuit stability and safety. Explore onsemi semiconductor components and related industrial electronics in EnvMart’s Electronics & Electricals category for precision and dependable solutions.
