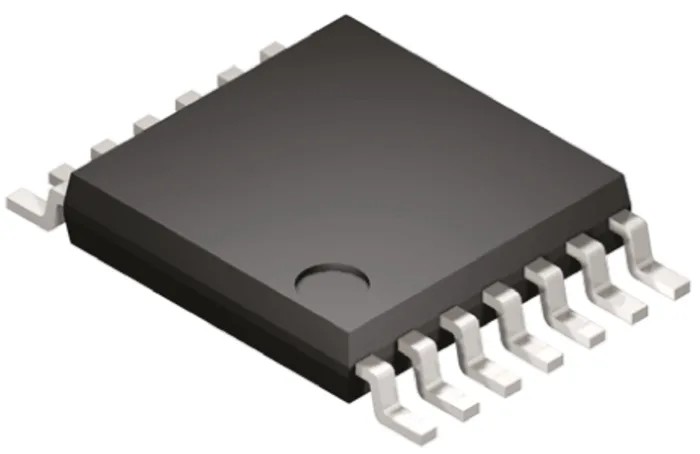

DiodesZetex 4-Channel Non-Inverting 3 State Buffer, 14-Pin TSSOP Logic IC 74HCT125T14-13

DiodesZetex 74HCT125T14-13 is a high-speed 4-channel non-inverting 3 state buffer logic IC housed in a 14-pin TSSOP package, designed for surface mounting on PCBs. It belongs to the 74HCT family that provides compatibility with TTL inputs and low power CMOS operation, ideal for a variety of electronic circuits requiring buffering and signal gating.

This device supports a supply voltage range from 4.5V to 5.5V and features both sink and source capabilities of 4mA at 4.5V supply voltage. Its maximum propagation delay of 38ns ensures rapid response, suitable for high-speed logic applications. The IC operates reliably across a broad temperature range from -40°C up to 125°C, making it suitable for industrial and commercial electronic environments.

The buffer IC comes with robust ESD protection surpassing stringent JESD 22 standards, including 200V for machine model and 1000V for human body model, enhancing device durability in electrostatic sensitive applications. Its compact TSSOP form factor allows for efficient PCB space utilization.

Applications include general-purpose buffering, logic signal conditioning, and interfacing low power Schottky TTL circuits. It caters to sectors such as industrial controls, consumer electronics, telecommunications, and computing hardware.

Contains four non-inverting buffer channels with 3-state outputs. Operates within a supply voltage range of 4.5V to 5.5V providing low power consumption. Top-side mountable surface package (TSSOP) with a compact 14-pin design.

Offers a maximum propagation delay time of 38ns at CL conditions. Wide operating temperature range from -40°C to 125°C for reliable performance. TTL input compatible providing versatile logic interfacing. Low supply current of 40μA enhances energy efficiency.

Implements ESD protection exceeding 200V machine model and 1000V human body model standards. Pin compatible with low power Schottky (LSTTL) logic families. Manufactured in China with assured quality and consistent electrical characteristics.

This IC is essential for electronic system designers requiring dependable buffer solutions that handle multiple signal channels with guaranteed performance under a wide range of electrical and environmental conditions. Explore other products in the Semiconductor Buffers category on EnvMart for related components and accessories.
