| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.43mm |
| Length | 0.85mm |
| Model | NSR0140P2T5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 350mV |

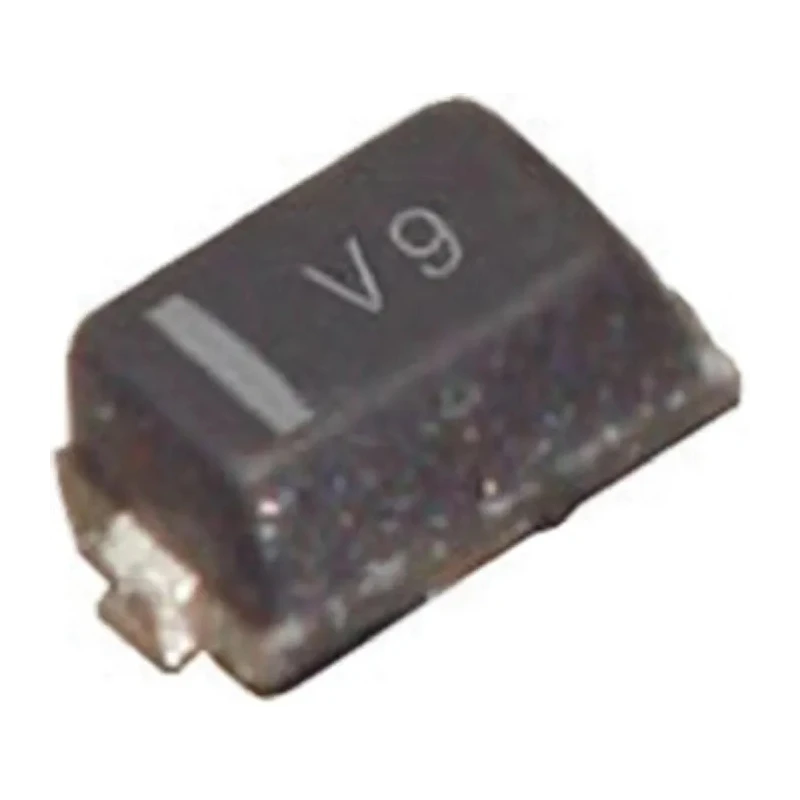

onsemi NSR0140P2T5G is a high-efficiency Schottky diode designed for use in surface mount electronic circuits. The diode employs the Schottky barrier principle to achieve a low forward voltage drop and minimal reverse current, improving power efficiency in low voltage and high frequency applications.
Its compact SOD-923 package with a 2-pin configuration makes it suitable for automated board assembly and space-constrained applications. The diode offers a maximum continuous forward current of 70 mA and can withstand a peak reverse repetitive voltage of 40 V, making it ideal for power rectification, freewheeling, and polarity protection roles.
Operating temperature ranges from -55°C to 125°C, providing reliability in demanding industrial environments. The maximum forward voltage is 350 mV, enabling efficient switching with reduced heat generation. Additionally, the diode supports a peak non-repetitive forward surge current up to 500 mA with a low peak reverse leakage current of 500 nA.
The epoxy molded case protects the diode ensuring mechanical and environmental reliability. This product is Pb-Free, making it compliant with environmental regulations. The lightweight 11.7 mg package aids in reducing the overall mass of electronic assemblies.
Maximum continuous forward current of 70 mA. Peak reverse repetitive voltage rating of 40 V. Compact SOD-923 package with 0.85mm length, 0.65mm width, and 0.43mm height. Operating temperature from -55°C to 125°C. Low maximum forward voltage of 350 mV.
Peak non-repetitive surge current of 500 mA. Extremely low peak reverse current of 500 nA. Surface mount package suitable for automated assembly. Pb-Free epoxy molded for environmental safety.
This Schottky diode is widely used in industrial, consumer electronics, telecommunications, and automotive electronic applications where high efficiency and compact size are crucial. It is ideal for switching power supplies, rectifiers, and polarity protection circuits.
