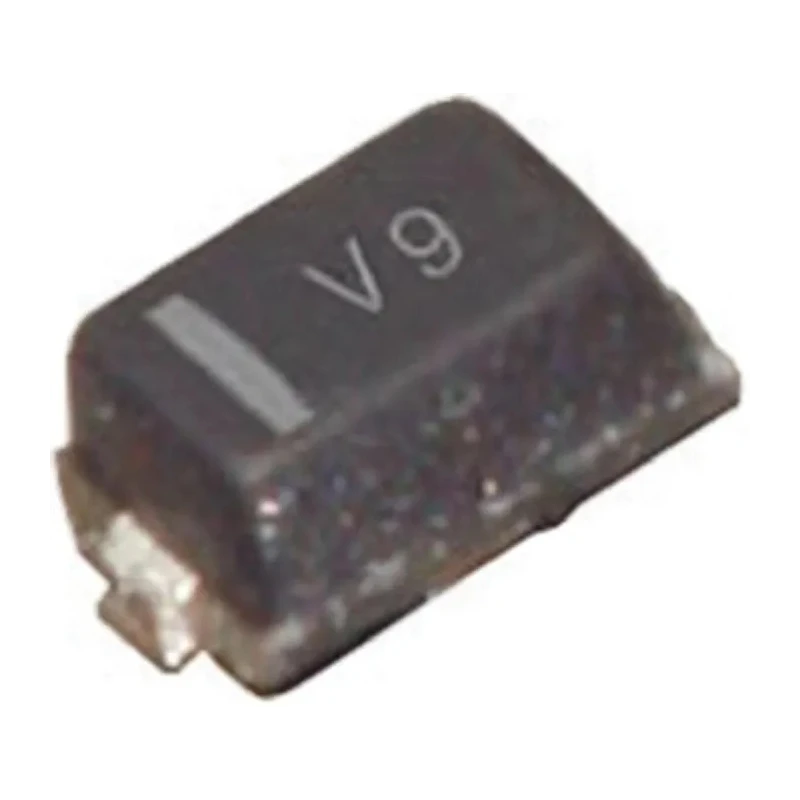

onsemi Schottky Diode 40 V 70 mA Surface Mount 2-Pin SOD-923 NSR0140P2T5G

onsemi NSR0140P2T5G is a Schottky Barrier Diode designed for surface mount applications, offering reliable rectification performance at 40 V and 70 mA continuous forward current.

Employing advanced Schottky barrier technology, this diode achieves low forward voltage drop (350 mV max) and minimal reverse leakage current (500 nA), making it highly efficient for switching and rectification at low voltages.

The diode supports operating temperatures from -55°C to 125°C and features a compact 2-pin SOD-923 package with dimensions 0.85 mm (length), 0.65 mm (width), and 0.43 mm (height). Its epoxy molded construction provides mechanical protection and stress resilience while maintaining a lightweight form factor of approximately 11.7 mg.

This device is ideal for applications requiring low voltage, high-frequency rectification, freewheeling, and polarity protection in compact electronic assemblies. It is Pb-Free, supporting environmentally friendly designs.

Designed using Schottky barrier technology for low forward voltage drop and fast switching. Maximum forward voltage of 350 mV ensures high efficiency. Peak reverse current is low at 500 nA for reliable rectification. Operating temperature range spans from -55°C to 125°C for robustness.

Compact dimensions enable integration in dense circuits. Epoxy molded lightweight casing enhances durability and stress protection. Suitable for surface mount low voltage, high-frequency rectification and polarity protection applications.

Pb-Free design aligns with environmental standards.

This Schottky Diode is applicable across industrial electronics, computing, telecommunications, and automotive non-AEC-Q101 applications where compact size and reliable performance are critical.
