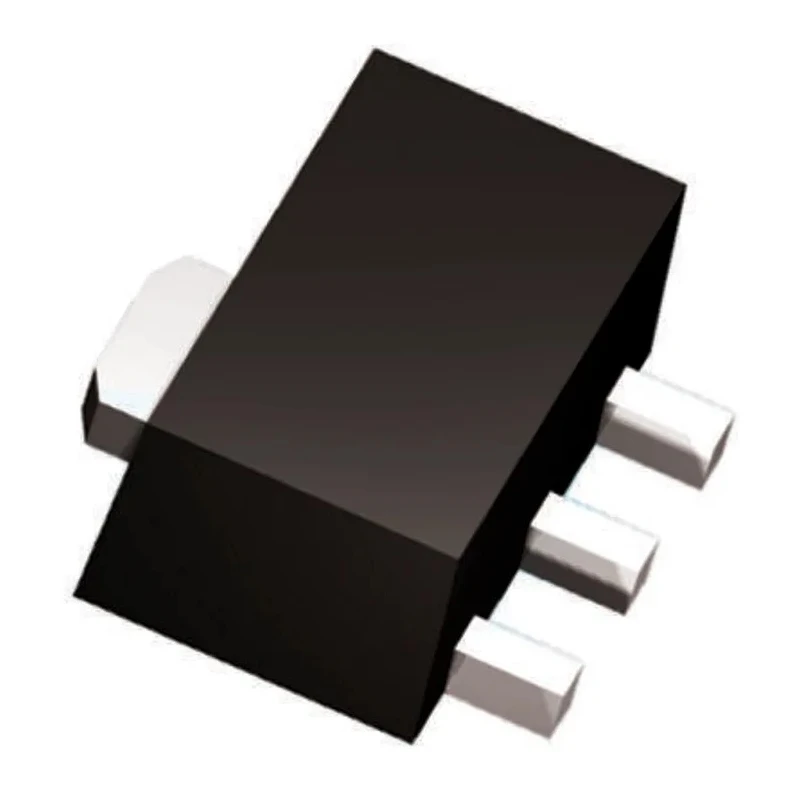

onsemi General Purpose NPN Transistor 2 A, 50 V, 3-Pin PCP Surface Mount 2SD1623S-TD-E

onsemi 2SD1623S-TD-E is a robust general purpose NPN bipolar transistor designed for a wide range of semiconductor applications requiring up to 2 A of collector current and 50 V collector-emitter voltage. This discrete semiconductor device comes in a compact 3-pin PCP package with surface mount mounting type, making it ideal for efficient space usage on modern PCBs.

The transistor supports a maximum power dissipation of 1.3 W, making it suitable for moderate power circuits. Its single NPN transistor configuration provides reliable switching and amplification performance in both industrial and commercial applications. The device also achieves a transition frequency of 150 MHz allowing fast switching speeds required in radio frequency and signal processing circuits.

Physically, the 2SD1623S-TD-E transistor measures 4.5 mm in length, 4 mm in width, and 1.5 mm in height. Designed for surface mounting, it ensures ease of assembly and stable electrical connections on printed circuit boards.

This transistor operates reliably up to 150°C ambient temperature, making it suitable for demanding environments such as industrial automation, consumer electronics, and power management circuits. It does not carry automotive qualification but provides dependable general use performance.

Supports maximum DC collector current of 2 amperes enabling moderate power applications. Maximum collector-emitter voltage rating is 50 volts for safe operation within limits. Features a surface mount PCP package type facilitating compact PCB designs.

Transistor configuration is single NPN type suitable for switching and amplification. Maximum power dissipation is 1.3 watts allowing adequate thermal management. High transition frequency up to 150 MHz supports high-speed switching applications.

Compact physical dimensions with length 4.5 mm, width 4 mm, and height 1.5 mm. Operates reliably up to maximum temperature of 150°C ensuring durability in harsh environments.

This product is widely used in industrial, electronic circuit design, signal switching, amplification, and power control applications. Suitable for manufacturing, electronic repair shops, educational and laboratory electronics experiments.
