onsemi Single NPN Bipolar Transistor 1.5 A 160 V TP-FA Package Surface Mount 15 W Power Dissipation 2SC4027S-TL-E

The onsemi 2SC4027S-TL-E is a Small Signal NPN Bipolar Transistor designed for electronic circuits requiring reliable, high-voltage operation with moderate current capacity. Featuring a maximum DC collector current of 1.5 A and collector-emitter voltage of 160 V, this transistor is well-suited for power amplification and switching tasks in industrial, automotive, and consumer electronics.

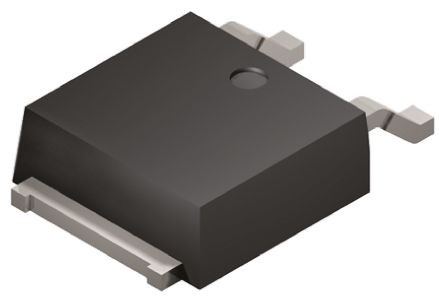

This transistor comes in a TP-FA surface mount package with a compact footprint, measuring only 6.5 mm in length, 7 mm in width, and 2.3 mm in height, which is beneficial for applications requiring miniaturized PCB layouts. The device supports a maximum power dissipation of 15 W, aiding in effective heat dissipation under demanding electrical conditions.

With a minimum DC current gain (hFE) of 80 and maximum transition frequency (ft) of 120 MHz, the 2SC4027S-TL-E transistor is suitable for use in high-frequency circuits and amplification. Its maximum operating temperature rating of 150°C ensures stable performance in harsh environments.

This transistor is a versatile discrete semiconductor component designed for use in industry sectors such as electronic manufacturing, communication systems, power supplies, and automotive electronics. It enables engineers to develop efficient, compact, and high-performance electronic designs.

Maximum DC Collector Current: 1.5 A. Maximum Collector Emitter Voltage: 160 V. Power Dissipation: 15 W. Surface Mount TP-FA Package. Minimum DC Current Gain (hFE): 80. Maximum Operating Temperature: 150°C. Maximum Transition Frequency: 120 MHz.

Pin Count: 3. Compact Dimensions: 6.5 x 7 x 2.3 mm (L x W x H).

Ideal for industrial, automotive, communication, and general electronic applications. Explore more Bipolar Transistors and semiconductor components at EnvMart for reliable and efficient design solutions.
