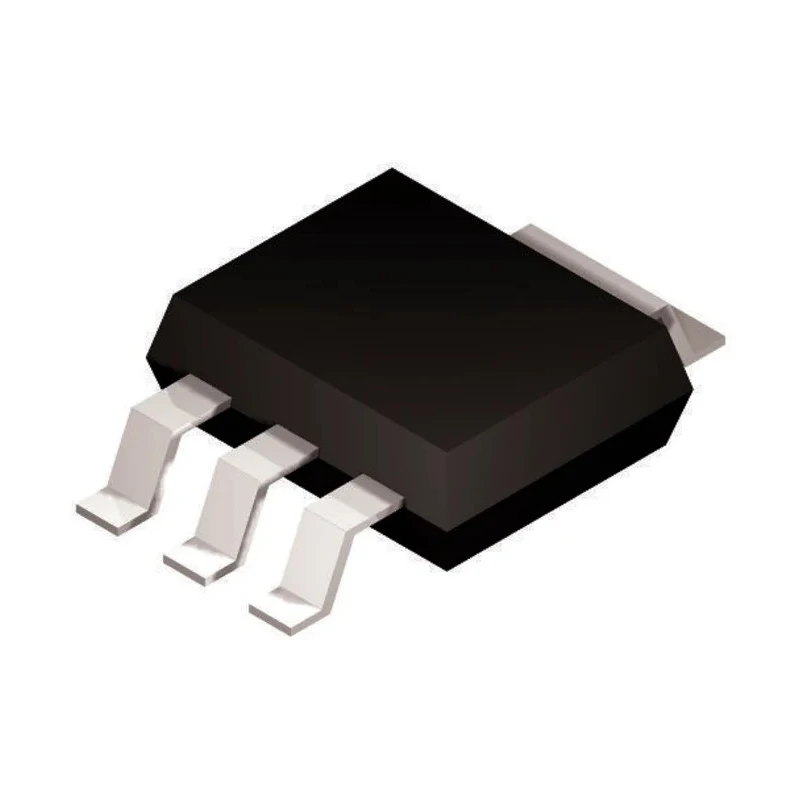

onsemi 1 A NPN Bipolar Transistor, 80 V, 1.5 W Power Dissipation, Surface Mount SOT-223 Package BCP56-10T1G

onsemi BCP56-10T1G Bipolar Transistor is a robust NPN type transistor designed to support up to 1 ampere continuous collector current and withstand collector-emitter voltages up to 80 volts. It is housed in a 4-pin SOT-223 surface mount package, suitable for compact electronic circuits requiring efficient switching or amplification capabilities.

The transistor offers a maximum power dissipation of 1.5 watts, allowing it to operate efficiently under moderate power applications. Its configuration as a single NPN transistor makes it ideal for general purpose usage in industrial, consumer electronics, automotive, and communication equipment.

Operational temperature ranges from -65°C to 150°C, allowing reliable use in varying environmental conditions including automotive systems following AEC-Q101 qualification. The transition frequency of 35 MHz supports moderate frequency switching applications.

The physical compactness with dimensions of approximately 7.3 mm (height) x 6.7 mm (length) x 3.7 mm (width) facilitates integration into high-density printed circuit boards using surface mount technology.

Primary applications include industrial automation controls, signal amplification, switching circuits in power supplies, and embedded automotive electronics. This transistor conforms to vital industry standards, ensuring quality and long-term performance.

Supports maximum collector current of 1 ampere. Collector-emitter voltage rating of 80 volts for reliable switching. Power dissipation capacity up to 1.5 watts ensures thermal stability. NPN transistor configuration designed for general-purpose amplification and switching.

Mount type is surface mount with a compact SOT-223 package. Operating temperature range spans from -65°C to 150°C. Maximum transition frequency (ft) rated at 35 MHz. Automotive grade compliant to AEC-Q101 standard. Dimensions approx. 7.3 mm height, 6.7 mm length, 3.7 mm width.

Minimum DC gain (hFE) of 25 supporting effective amplification. Explore more on Bipolar Transistors and semiconductors at EnvMart for industrial and electronic component needs.
