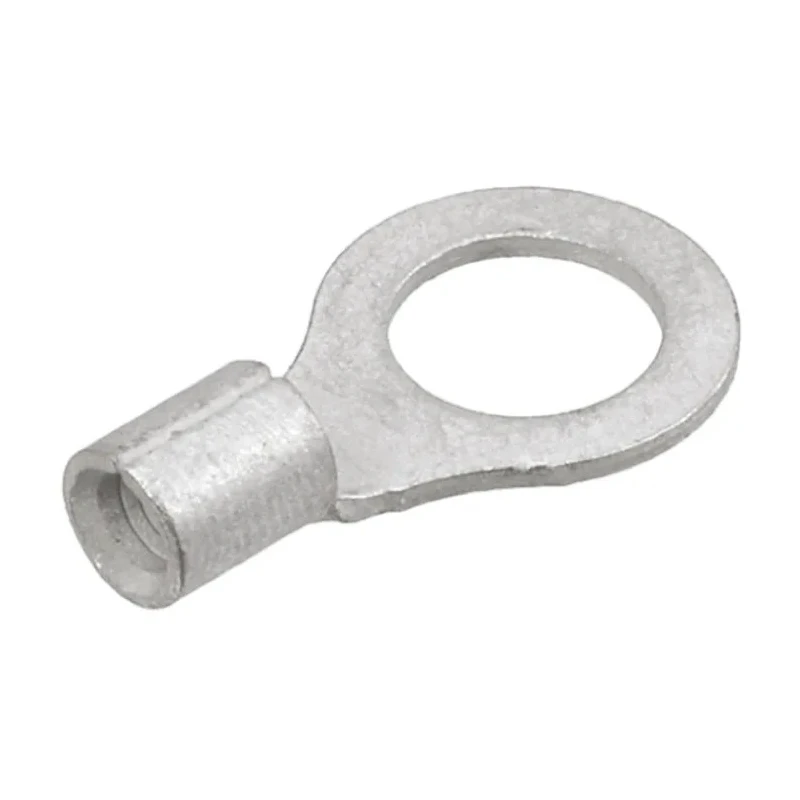

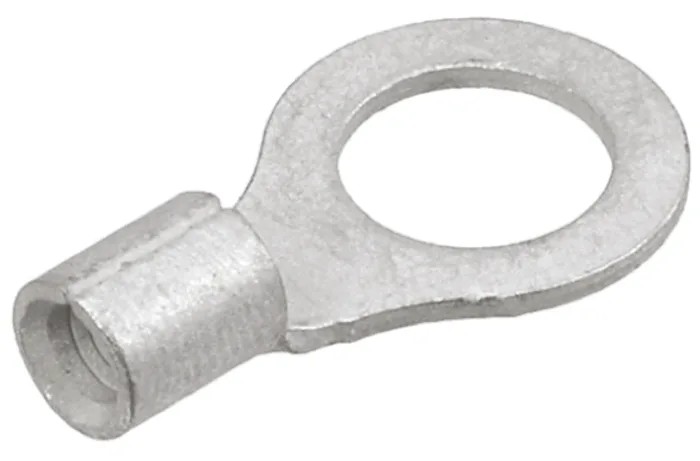

Molex Versakrimp Uninsulated Ring Terminal M8 Stud Size 14 AWG 10 AWG Wire Size Grey 19323-0015
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 1.02mm |
| Insulation | Uninsulated |
| Overall Length | 19.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 13.46mm |
| Inner Ring Diameter | 8.51mm |
| Stud Size | M8 |
Key Features
- The ring terminal features uninsulated construction suitable for various electrical connections.
- Constructed from copper alloy with tin plating for excellent conductivity and corrosion resistance.
- Outer ring diameter measures 13.46 mm and inner ring diameter 8.51 mm for precise fitment.
- Overall length is 19.5 mm, with a thickness of 1.02 mm to ensure durability during use.
- Supports a maximum wire size of 10 AWG (6 mm²) and minimum wire size of 14 AWG (2.5 mm²).
- Operates reliably within temperature ranges from -55°C to 105°C.
- Colour-coded grey for easy identification in wiring applications.
- Ideal for industrial, electrical, and power connector applications requiring secure and vibration-resistant crimp connections.
Product Description
Molex 19323-0015 Versakrimp Uninsulated Ring Terminal is engineered for dependable electrical connections using M8 stud size terminals. This ring terminal supports wire sizes from 14 AWG up to 10 AWG and is uninsulated, making it suitable for applications that require direct metal-to-metal contact and reliable conductivity.
Manufactured using a copper alloy contact material with tin plating, it offers enhanced corrosion resistance and improved electrical conductivity. Its outer ring diameter is 13.46 mm while the inner ring diameter measures 8.51 mm, ensuring compatibility with standard M8 stud fittings.
The terminal's overall length of 19.5 mm with a thickness of 1.02 mm delivers robust mechanical strength. It supports a wire cross-sectional area range from 2.5 mm² (14 AWG) to 6 mm² (10 AWG), accommodating various wiring requirements in power connectors.
Designed to operate effectively across a broad temperature span from -55°C to 105°C, this grey-coloured ring terminal is ideal for use in industrial installations, electrical systems, HVAC setups, and commercial power distribution where vibration resistance and secure crimp connections are critical.
The uninsulated design allows for metal-to-metal contact needed in many power and grounding connections. Copper alloy and tin plating ensure electrical performance and resistance to environmental degradation. Physical dimensions conform to standard M8 stud ring terminals for interchangeability.
Wide operating temperature range makes it suitable for harsh environments. Colour-coded for ease of wiring identification and installation accuracy. Compatible with standard crimping tools for secure and efficient connection assembly.
Applicable in industrial, manufacturing, electrical maintenance, and repair operations.
This Molex Ring Terminal is an essential component in wire termination solutions, facilitating stable electrical connections with reliable mechanical and electrical properties across a broad range of industrial and commercial applications. It ensures quality performance in power connectors and wiring harness assemblies handled by professionals.
Explore more Wire Terminals and Splices in the Electronics & Electricals category on EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum wire size of 10 AWG, which corresponds to a cross-sectional area of 6 mm².
The minimum wire size that this terminal can accommodate is 14 AWG, equivalent to 2.5 mm².
The outer ring diameter measures 13.46 mm, while the inner ring diameter is 8.51 mm.
The overall length of this terminal is 19.5 mm, and it has a thickness of 1.02 mm.
It operates reliably within a temperature range of -55°C to 105°C.
The terminal is constructed from a copper alloy with tin plating, which enhances its conductivity and corrosion resistance.
This model is uninsulated, making it suitable for applications requiring direct metal-to-metal contact.
This terminal is designed for use with M8 stud size terminals.
The ring terminal is color-coded grey for easy identification in wiring applications.
It is ideal for industrial, electrical, and power connector applications that require secure and vibration-resistant crimp connections.
This ring terminal is manufactured in India.
Yes, it is compatible with standard crimping tools for secure and efficient connection assembly.
