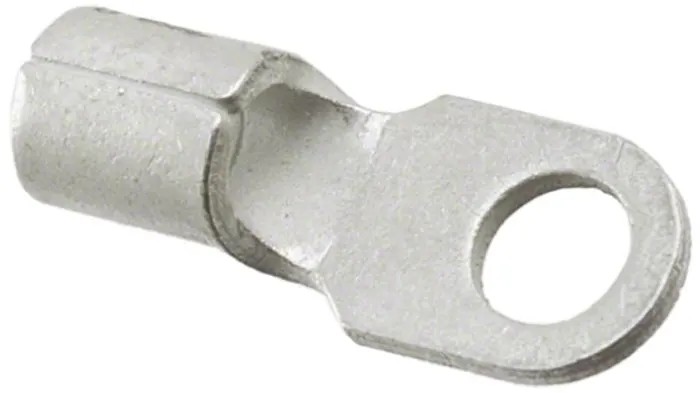

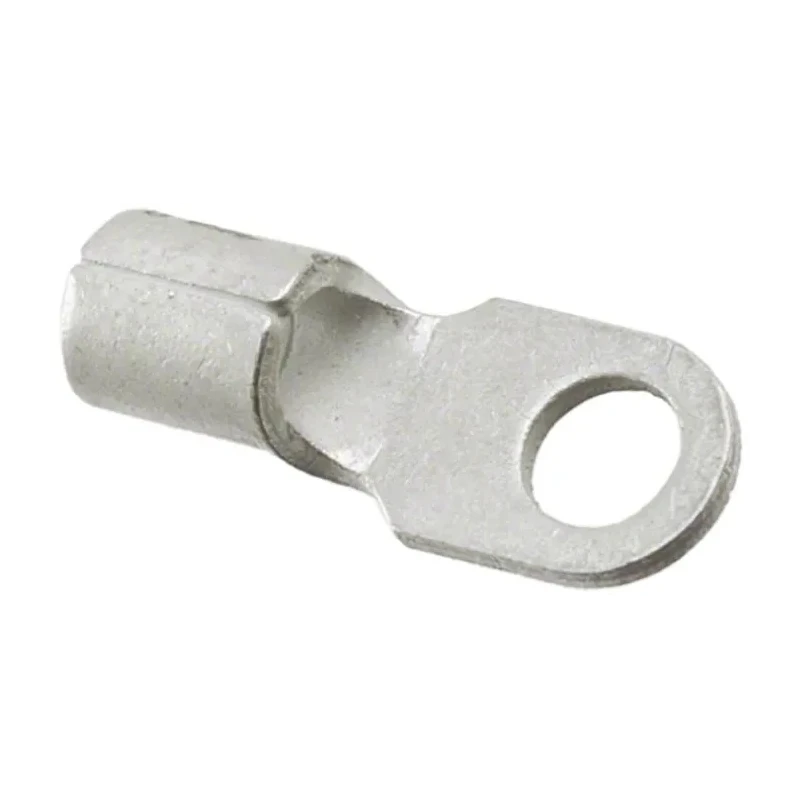

Molex Versakrimp Uninsulated Ring Terminal M4 Stud Size 14 AWG 10 AWG Wire Size Grey 19323-0012

Molex 19323-0012 Versakrimp uninsulated ring terminal is engineered for secure and efficient electrical connections, suitable for M4 stud size applications with wire sizes from 14 AWG to 10 AWG. The ring terminal features precise dimensions including a 7.16 mm outer ring diameter and 4.39 mm inner ring diameter, made from high-quality copper alloy with a tin plating that ensures corrosion resistance and electrical conductivity.

Its uninsulated design with a grey finish allows for versatile installation in environments where insulation is provided separately or not required. The overall length of 15.2 mm provides reliable mechanical stability when mounted on M4 studs, while the 1.02 mm thickness delivers solid mechanical strength.

The product operates reliably across a wide temperature range from -55°C to +149°C, making it suitable for demanding industrial, electrical, and manufacturing environments. The seamless barrel construction enhances crimping effectiveness by enabling barrel rotation within the crimping jaws, resulting in consistent double crimp connections on conductor and insulation providing excellent vibration resistance.

The ring terminal features an outer ring diameter of 7.16 mm and inner ring diameter of 4.39 mm. Constructed with a copper alloy contact material plated with tin for superior corrosion protection. Supports wire sizes from minimum 14 AWG (2.5 mm²) to maximum 10 AWG (6 mm²).

Designed for M4 stud size with an overall length of 15.2 mm. Uninsulated and finished in grey, allowing for flexible electrical installations. Thickness of 1.02 mm ensures mechanical robustness. Effective operation in temperatures ranging from -55°C to +149°C.

Seamless barrel design facilitates easier crimping and enhanced vibration resistance. Ideal for power connectors, wire terminal, and splice applications in industrial and electronic assemblies.

This Ring Terminal is a reliable choice for industrial, electrical manufacturing, HVAC, and other commercial applications where precision and durability are critical. Molex quality ensures consistent performance and ease of assembly with standard crimping tools.

Explore a wide range of wire terminals and electrical connectors to complement your assembly needs at EnvMart.
