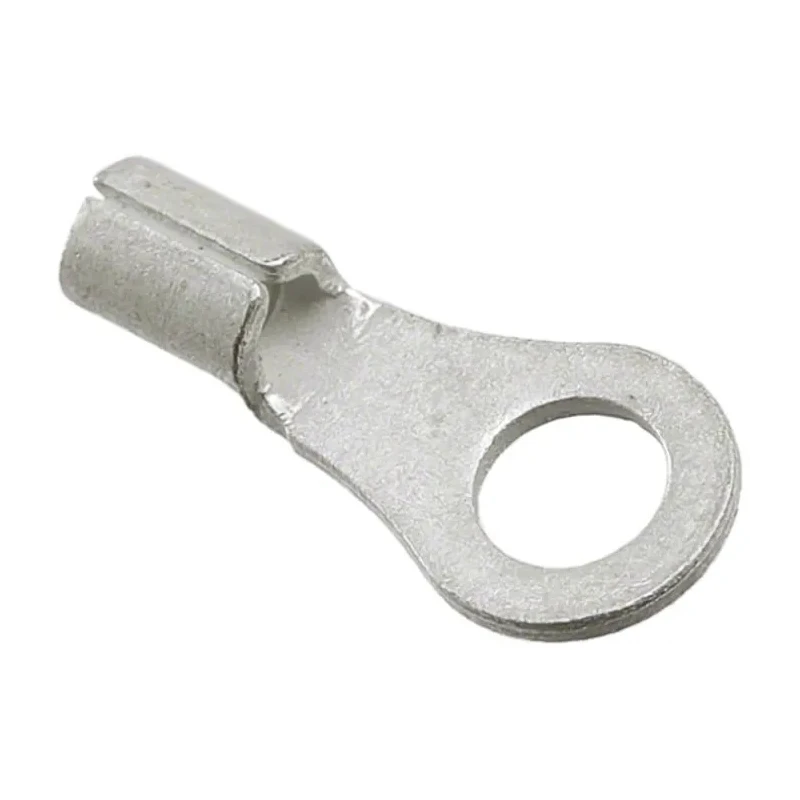

Molex Versakrimp Uninsulated Ring Terminal M3.5 Stud Size 22 AWG 18 AWG Wire Size Grey 19323-0003
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 0.71mm |
| Insulation | Uninsulated |
| Overall Length | 11.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 6.45mm |
| Inner Ring Diameter | 3.79mm |
| Stud Size | M3.5 |
Key Features
- Uninsulated design suits robust electrical connections.
- Compatible with wire sizes between 22 AWG and 18 AWG.
- Constructed with copper alloy contact material for reliable conductivity.
- Ring terminal has a grey color for identification.
- Tin plating on contact enhances corrosion resistance.
- Overall length is 11.5mm ensuring compact installation.
- Designed for operating temperatures from -55°C to 105°C.
- Stud size of M3.5 matches metric fastening systems.
Product Description
Molex 19323-0003 Versakrimp uninsulated ring terminal is a precision-engineered connector designed for industrial and electronic wiring applications requiring robust, vibration-resistant connections. It supports wire sizes from 22 AWG (0.5 mm²) up to 18 AWG (1 mm²), making it suitable for medium-gauge wire installations.
This ring terminal features an M3.5 stud size compatible with metric fasteners, facilitating secure cable attachment in electrical panels, control systems, automotive wiring, and industrial equipment.
The terminal is made from copper alloy, delivering excellent electrical conductivity, and is tin-plated to enhance corrosion resistance and longevity even in challenging environments. The uninsulated design allows for straightforward crimping and an effective electrical contact.
Physical dimensions include an overall length of 11.5 mm, an outer ring diameter of 6.45 mm, an inner ring diameter of 3.79 mm, and a thickness of 0.71 mm. These compact dimensions support use in space-constrained environments while maintaining mechanical integrity.
The operating temperature range from -55°C to 105°C ensures reliability across diverse industrial, automotive, and HVAC conditions. The grey color of the terminal helps in easy identification during wiring and maintenance.
Uninsulated ring terminal designed for secure wire connection. Supports wire gauges 22 AWG to 18 AWG for flexibility in wiring. Copper alloy contact with tin plating for durable electrical contact. Compatible with M3.5 stud size metric fasteners.
Compact dimensions enable use in constrained spaces. Wide operating temperature range from -55°C to 105°C. Grey color for easy visual identification. Designed for industrial, automotive, and electronic applications.
This Molex terminal is ideal for industrial use, manufacturing, automotive wiring harnesses, HVAC systems, and electrical equipment assembly. Designed for longevity and reliable performance, it fits into professional-grade installations requiring uninsulated Ring Terminals.
Explore more electronic component solutions and connectors on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal is compatible with wire sizes from 22 AWG (0.5 mm²) to 18 AWG (1 mm²).
The stud size for this model is M3.5, which is compatible with metric fastening systems.
It is constructed from copper alloy for reliable conductivity and features tin plating to enhance corrosion resistance.
The overall length is 11.5 mm, with an outer ring diameter of 6.45 mm, an inner ring diameter of 3.79 mm, and a thickness of 0.71 mm.
This model operates effectively within a temperature range of -55°C to 105°C.
The terminal is grey, which aids in easy visual identification during wiring and maintenance tasks.
It is suitable for industrial, automotive, and electronic applications, including wiring harnesses and electrical equipment assembly.
The uninsulated design allows for straightforward crimping and effective electrical contact, making it suitable for various wiring applications.
The tin plating enhances corrosion resistance, contributing to the longevity of the terminal in challenging environments.
This terminal is part of the Versakrimp series, which is designed for robust electrical connections.
The Molex Versakrimp uninsulated ring terminal is manufactured in the United States.
The thickness of this terminal is 0.71 mm, supporting its compact design for installation in constrained spaces.
