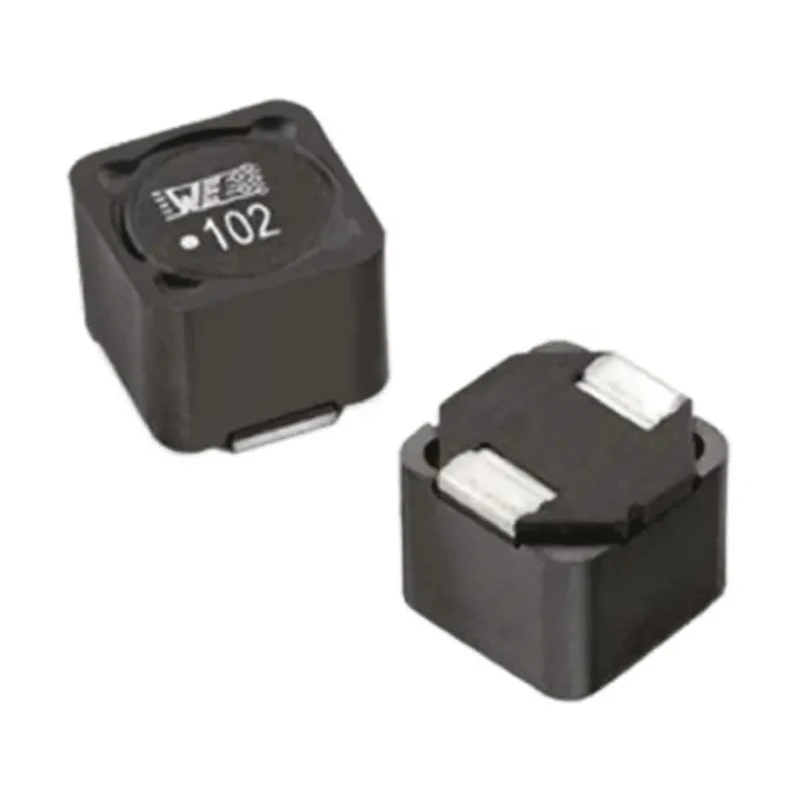

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 1.5 mH ±20% 320 mA IDC 1060 Package WE-PDHV 7687714152

Wurth Elektronik model 7687714152 is a shielded wirewound Surface Mount Inductor with an inductance of 1.5 mH and an inductance tolerance of ±20%. This high-quality component is designed for applications requiring stable inductance and magnetic shielding, including non-isolated buck or buck boost converters, constant current LED drivers, utility metering systems, and power supply filtering. It is packaged in the 1060 tape & reel format, making it suitable for efficient surface mount assembly processes.

The inductor supports a maximum DC current of 320 mA and has a maximum DC resistance of 4.6 Ω, ensuring optimal current carrying capability with minimal losses. It features magnetic shielding to protect the wirewound coil from external electromagnetic interference, enhancing performance reliability in sensitive electronic circuits.

This component complies with the automotive standard AEC-Q200, enabling it to withstand automotive environmental stress and temperature extremes. It functions optimally within an operating temperature range of -40°C to 125°C, making it suitable for harsh industrial and automotive environments.

Mechanical specifications include a package size of 1060 with a length of 10 mm, height of 6 mm, and depth of 10 mm. Its wirewound construction assures durability and consistent inductance performance. The maximum self-resonant frequency of 1.4 MHz allows it to operate effectively in high-frequency applications.

This inductor supports a maximum DC current of 320 mA. It features magnetic shielding to prevent interference and wire protection. The 1060 package size with dimensions 10 mm length, 6 mm height, and 10 mm depth suits compact PCB assembly.

Designed to meet the automotive standard AEC-Q200 for high-quality performance. Maximum DC resistance is 4.6 Ω ensuring efficient current flow. It operates reliably between -40°C and 125°C operating temperature range. The maximum self-resonant frequency is 1.4 MHz suitable for various power supply filters.

Wirewound construction ensures durability and stable inductance. Ideal for non-isolated buck or buck boost converters, constant current LED drivers, utility metering, and power supply filtering.

This product is manufactured in China and belongs to the Wurth Elektronik WE-PDHV series, renowned for power inductors with advanced shielding and durability for demanding electronic applications. It is an integral component in industrial, automotive, laboratory, and commercial power electronics systems.
