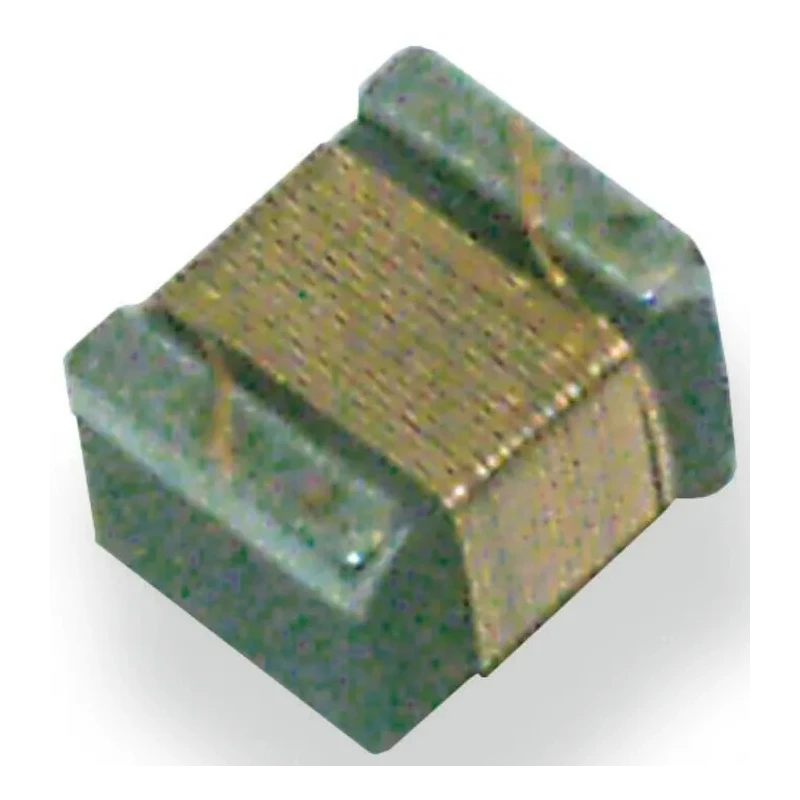

Murata Wirewound Surface Mount Inductor with Ferrite Core 6.8 nH ±2% 700 mA Idc 0402 Package LQW15AN6N8G00D

Murata LQW15AN6N8G00D wirewound surface mount inductor features a ferrite core with an inductance of 6.8 nH and a tight tolerance of ±2%. This 0402 package component measures 1 mm in length, 0.5 mm in height, and 0.6 mm in depth, designed for compact PCB layouts.

Constructed with wirewound technology, it supports a maximum DC current of 700 mA and operates reliably between -55°C to 125°C. It possesses a maximum DC resistance of just 90 mΩ, which ensures minimal power dissipation during operation.

Its high self-resonant frequency of 6 GHz and minimum quality factor of 25 make it ideal for high frequency applications including VHF and UHF wireless telecommunications circuits such as Bluetooth, GSM, and W-LAN.

The part is RoHS compliant, uses a solder termination style, and is delivered on paper tape packaging, facilitating automated assembly processes. Its ferrite core ensures stable magnetic properties with minimal losses, suitable for industrial, telecommunications, and high-frequency electronic manufacturing.

Sourced from Japan, this inductor meets rigorous quality standards and is designed for use in demanding environments requiring robust and compact inductive components. Compact 0402 size suitable for dense PCB designs. High frequency resonance supports advanced wireless applications.

Wide operating temperature range ensures versatility. Low resistance minimizes power loss and heat generation. Compliant with environmental standards for safe use. Wirewound construction for durability and precision. Explore the range of Surface Mount Inductors by Murata on EnvMart for industrial and commercial electronic assembly needs.
