| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN30NH00D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 30nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 270mA |
| Pin Count | 2 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±3 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.3GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

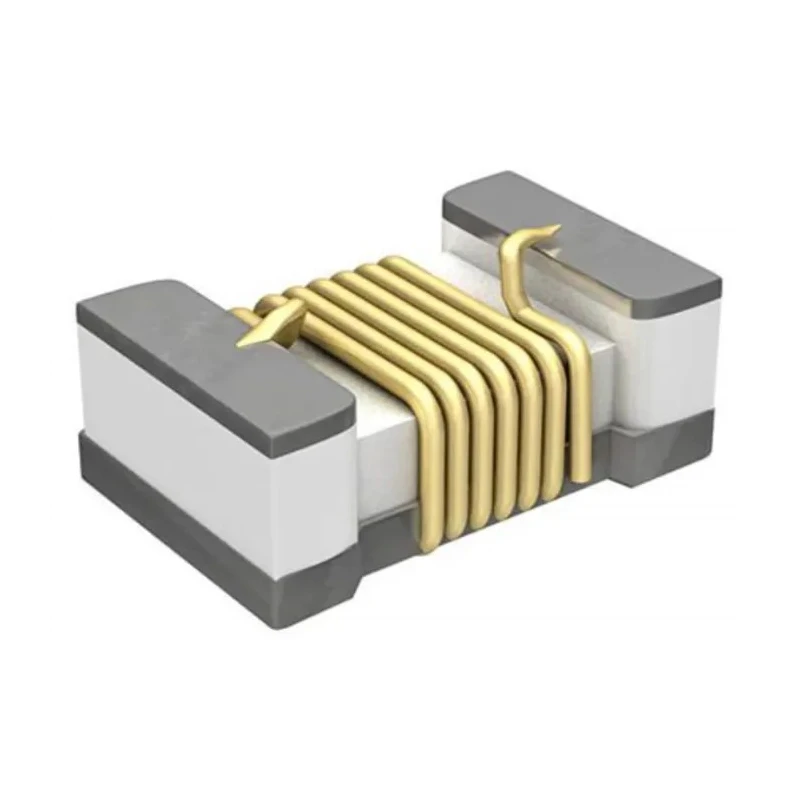

Murata LQW15AN30NH00D is a 0402 unshielded wirewound surface mount inductor designed for high-frequency circuits, especially in wireless telecommunications such as Bluetooth, GSM, and WLAN applications. This inductor features a ferrite core that facilitates its excellent inductance stability and frequency response.
With a nominal inductance of 30 nH and a tolerance of ±3%, it is suitable for precise circuit tuning. Its compact small footprint of 1 mm length, 0.5 mm height, and 0.5 mm depth makes it ideal for dense PCB layouts. The maximum DC current rating of 270 mA and a low maximum DC resistance of 580 mΩ ensures efficient current handling with minimal losses.
The component is RoHS compliant and has a minimum quality factor of 25, indicating its effective performance in high-frequency environments, delivering low signal loss. The self-resonant frequency of 3.3 GHz supports applications in VHF and UHF frequency bands, making it well suited for modern communication devices.
Its solder termination style and paper tape packaging support automated manufacturing processes. The operating temperature range from -55°C to 125°C enhances its reliability across various industrial and commercial applications.
This wirewound inductor construction and unshielded design optimize its electromagnetic properties for wireless communication technologies. Compact 0402 package with a ferrite core for stability. High frequency capability to 3.3 GHz.
Low DC resistance and stable inductance ±3% tolerance. RoHS compliant and suitable for automated assembly. Wide temperature operating range from -55°C to 125°C. Ideal for Bluetooth, GSM, WLAN, and other VHF/UHF applications.
