| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN30NH00D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 30nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 270mA |
| Pin Count | 2 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±3 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.3GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

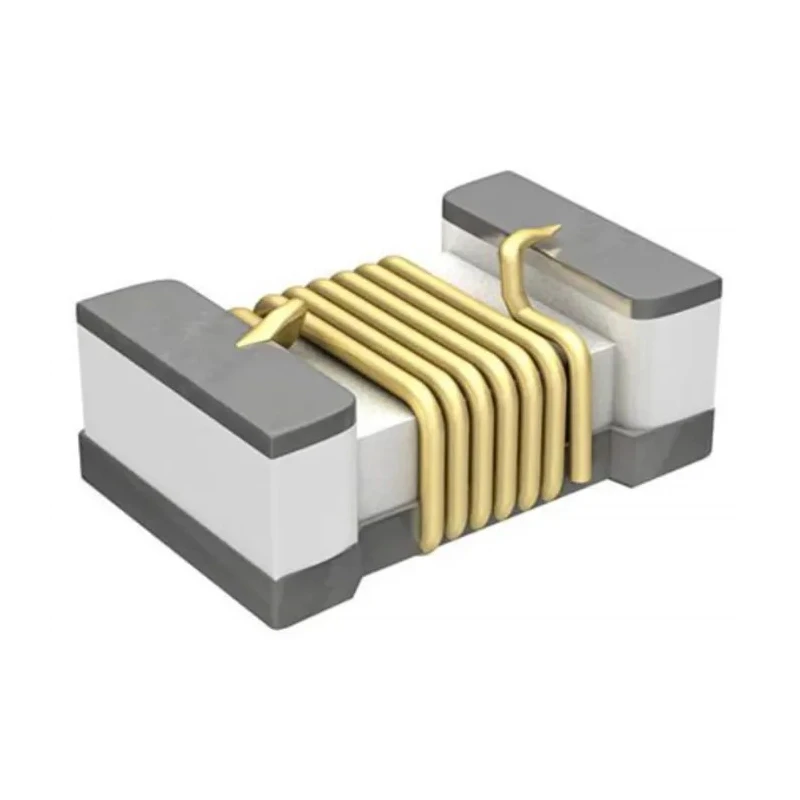

Murata LQW15AN30NH00D is a 0402 size unshielded wirewound surface mount inductor equipped with a ferrite core, offering an inductance value of 30 nH with an accuracy of ±3%. This component supports a maximum DC current of 270 mA and exhibits a low DC resistance of 580 mΩ, which contributes to efficient energy usage in high-frequency electronics.
The inductor is designed specifically for VHF and UHF wireless telecommunication circuits such as Bluetooth, GSM, and WLAN, benefiting from its high self-resonant frequency of 3.3 GHz and a minimum quality factor of 25. The compact dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth allow integration into small form factor PCBs.
Operating within a wide temperature range from -55°C to 125°C, it is suitable for demanding industrial and commercial electronics environments. The device is RoHS compliant, demonstrating adherence to environmental regulations, and features a solder termination style compatible with automated surface mount assembly lines. Packaging on paper tape reels facilitates seamless insertion into high volume production processes.
The wirewound construction ensures stable inductance and performance at very high frequencies. Ferrite core material provides magnetic properties essential for inductor functionality. Unshielded type suits applications without electromagnetic interference concerns.
Offers precise tolerance of ±3% to maintain signal integrity. Suitable for use in telecommunications and wireless devices requiring compact and reliable inductors.
This product is manufactured in Japan, ensuring high quality and reliability standards. Murata LQW15AN30NH00D is ideal for engineers and designers looking for a compact, high-performance surface mount inductor for advanced electronic assemblies.
