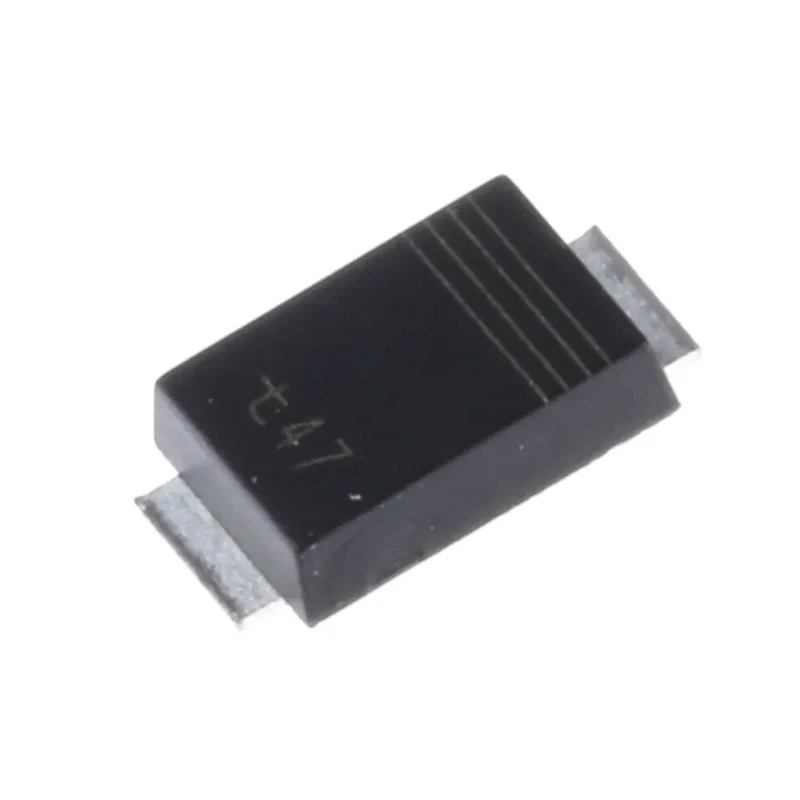

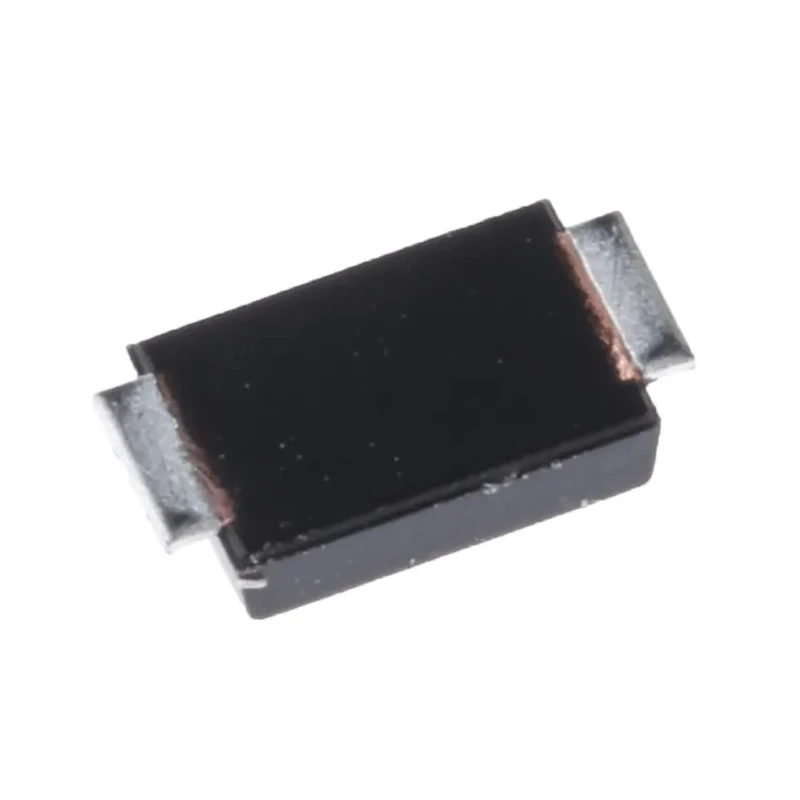

Nexperia 40 V 5 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-128 PMEG4050EP,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 5 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-128 PMEG4050EP,115

Name: Nexperia 40 V 5 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-128 PMEG4050EP,115
Brand: Nexperia
SKU: 369321
Price: 0.38 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	4mm
Model	PMEG4050EP,115
Width	2.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-128
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	70A
Maximum Forward Voltage Vf	490mV

Key Features

Designed for low forward voltage drop and high junction temperature.
Ultra-small, low-profile surface-mount package suitable for automated PCB assembly.
Maximum forward voltage of 490 mV ensures efficient power delivery.
Wide operating temperature range from -55°C to 150°C for harsh environments.
Peak non-repetitive forward surge current of 70 A for transient load tolerance.
Low peak reverse current of 300 μA minimizes leakage losses.
Complies with the automotive standard AEC-Q101 for quality assurance.
Manufactured in Malaysia with strict quality control.

Product Description

Nexperia PMEG4050EP,115 Schottky Diode is a high-efficiency single rectifier diode with a peak repetitive reverse voltage of 40 V and maximum continuous forward current of 5 A. This diode features a surface mount SOD-128 package with two pins, optimized for applications requiring low forward voltage drop and high junction temperature performance.

Its ultra-small and low-profile design makes it ideal for modern electronics where space saving and reliable surface mounting are essential. The device supports a maximum forward voltage of 490 mV and handles transient peaks up to 70 A, making it suitable for power conversion and switching applications.

The diode operates reliably across a broad temperature range from -55°C to 150°C, ensuring suitability for automotive and industrial electronic environments. Low peak reverse current of 300 μA reduces leakage and improves efficiency in power circuits. Additionally, the diode meets the automotive industry standard AEC-Q101, ensuring robust quality and reliability for automotive electronics.

Its compact physical dimensions of 4 mm length, 2.7 mm width, and 1.1 mm height facilitate integration in dense printed circuit board layouts. Manufactured in Malaysia, the PMEG4050EP,115 is backed by stringent quality controls and is widely used in electronic semiconductor discrete components applications.

Designed for low forward voltage drop and high junction temperature. Ultra-small, low-profile surface-mount package for efficient PCB assembly. Supports 5 A maximum continuous forward current. Wide operating temperature from -55°C to 150°C.

Complies with automotive standard AEC-Q101. Handles peak non-repetitive forward surge current of 70 A. Compact 2-pin SOD-128 package with dimensions 4 mm × 2.7 mm × 1.1 mm. Minimal leakage current with peak reverse current of 300 μA.

Produced in Malaysia ensuring high manufacturing standards.

This Schottky diode is suitable for industrial, automotive, power electronics, and manufacturing applications where efficient rectification and size constraints are critical. It belongs to the Schottky Diodes & Rectifiers category of semiconductor discrete components. For more semiconductor and diode products, explore related categories in the electronics and electricals sections at EnvMart.
