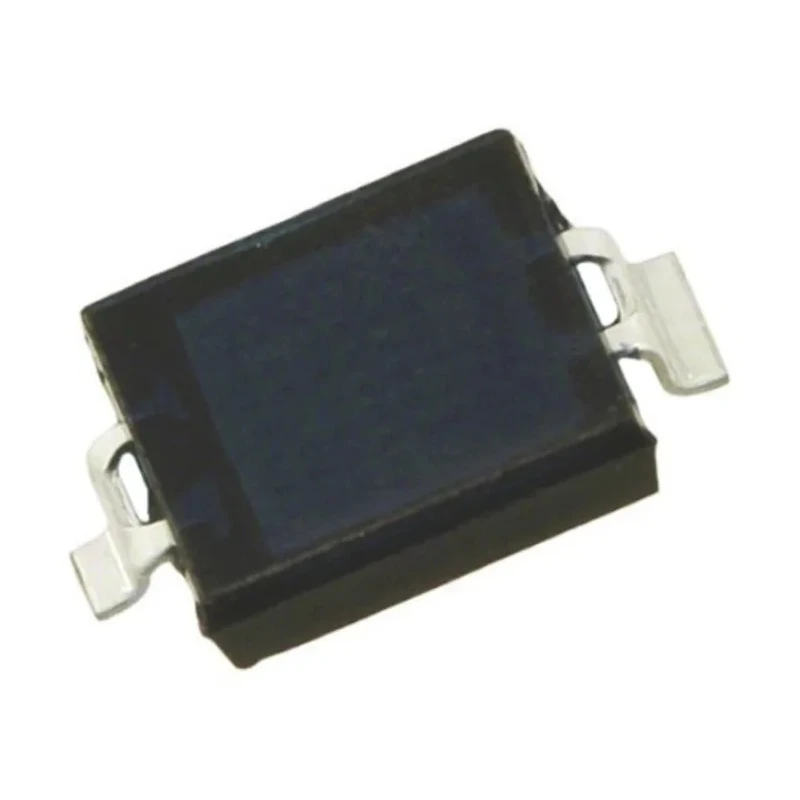

Vishay Infrared Photodiode, 65° Angle of Half Sensitivity, Surface Mount GW Package VBPW34FAS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 6.4 x 3.9 x 1.2 mm |
| Height | 1.2mm |
| Length | 4.4mm |
| Model | VBPW34FAS |
| Packaging | Tape & Reel |
| Width | 3.9mm |
| Mount Type | Surface |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | GW |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 80ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 950nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 780nm |
| Maximum Wavelength Detected | 1050nm |
| Angle of Half Sensitivity | 65 ° |
| Radiant sensitive area | 7.5 mm² |
Key Features
- The photodiode features a compact 6.4 x 3.9 x 1.2 mm black SMD package for easy PCB integration.
- It has a radiant sensitive area of 7.5 mm² for efficient infrared detection.
- Offers fast response times with typical rise and fall times of 80ns.
- The device operates reliably across a temperature range of -40°C to 100°C.
- Incorporates a forward polarity design and complies with RoHS and AEC-Q101 automotive standards.
- Supplied in tape & reel packaging with gull-wing lead types for manufacturing convenience.
- Its dark current is minimal at 2nA, ensuring low noise and high sensitivity.
- Breakdown voltage is rated at 60V with an open circuit voltage of 350mV.
Product Description
Vishay VBPW34FAS infrared photodiode is designed for precise infrared detection applications including IR remote controls, high-speed IR detectors, and air data transmission systems. The surface mount GW package with gull-wing leads enables straightforward PCB mounting and excellent mechanical stability.
The photodiode detects infrared radiation in the 780nm to 1050nm wavelength range, peaking at 950nm, with a wide 65° angle of half intensity sensitivity. Its radiant sensitive area covers 7.5 mm² allowing for efficient signal capture.
With fast typical response times (rise and fall times of 80ns), it is suitable for applications requiring quick sensing of IR light. The device operates between -40°C and 100°C, meeting the demands of industrial and automotive environments, supported by AEC-Q101 certification.
The VBPW34FAS device features a breakdown voltage of 60V and a low dark current of 2nA, minimizing noise. It has a short circuit current of 50μA and an open circuit voltage of 350mV, delivering reliable signal outputs.
Its compact dimensions of 6.4 x 3.9 x 1.2 mm optimize space usage on PCBs, and packaging on tape & reel with gull-wing leads facilitates automated assembly processes. Compliant with RoHS, this photodiode is suitable for electronic component integration in industrial, automotive, telecommunications, and consumer electronics sectors.
The photodiode features a compact 6.4 x 3.9 x 1.2 mm black SMD package for easy PCB integration. It has a radiant sensitive area of 7.5 mm² for efficient infrared detection. Offers fast response times with typical rise and fall times of 80ns.
The device operates reliably across a temperature range of -40°C to 100°C. Incorporates a forward polarity design and complies with RoHS and AEC-Q101 automotive standards. Supplied in tape & reel packaging with gull-wing lead types for manufacturing convenience.
Its dark current is minimal at 2nA, ensuring low noise and high sensitivity. Breakdown voltage is rated at 60V with an open circuit voltage of 350mV. Explore Vishay's electronic components and Photodiodes at EnvMart for industrial-grade performance and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects infrared radiation in the wavelength range of 780nm to 1050nm, with peak sensitivity at 950nm.
The VBPW34FAS has compact dimensions of 6.4 mm in length, 3.9 mm in width, and 1.2 mm in height.
It features a 65° angle of half sensitivity, allowing for efficient detection of infrared signals.
This model has typical rise and fall times of 80ns, making it suitable for high-speed applications.
The dark current is minimal at 2nA, which helps to ensure low noise and high sensitivity in detection applications.
The VBPW34FAS operates reliably at temperatures up to 100°C, making it suitable for various environments.
It is supplied in tape & reel packaging, which is convenient for automated assembly processes.
The breakdown voltage is rated at 60V, ensuring safe operation within specified limits.
It complies with the AEC-Q101 automotive standard, which is important for automotive applications.
The radiant sensitive area is 7.5 mm², allowing for efficient infrared signal capture.
The open circuit voltage is rated at 350mV, providing reliable signal outputs.
This model features a surface mount (SMD) design, facilitating easy integration onto PCBs.
