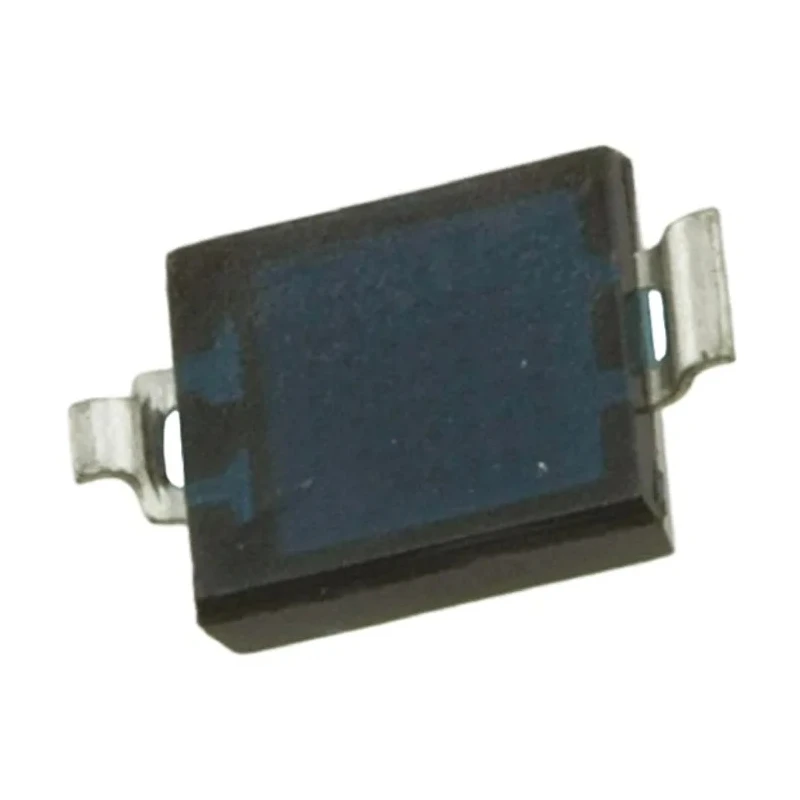

Vishay Infrared Photodiode, Surface Mount Reverse Gullwing, 65° Half Sensitivity Angle, 950nm Peak Wavelength VBPW34FASR

Vishay VBPW34FASR is a silicon PIN photodiode specifically designed for high speed infrared applications. Featuring a 65° angle of half intensity and a radiant sensitive area of 7.5 mm², this surface mount device is housed in a compact reverse gullwing package measuring 6.4 x 3.9 x 1.2 mm. It provides fast response times with typical rise and fall times of 80ns, making it ideal for IR remote controls, air data transmission systems, and other optical sensor uses.

The photodiode supports a spectral response from 780nm up to 1050nm with peak sensitivity at 950nm. It operates reliably over a wide temperature range from -40°C to 100°C, meeting both RoHS compliance and AEC-Q101 automotive standards ensuring robustness in harsh environments.

Key electrical characteristics include a low dark current of only 2nA, breakdown voltage of 60V, open circuit voltage of 350mV, and a short circuit current of 50μA. Forward polarity makes it straightforward for integration into electronic circuits. The device is supplied on tape and reel packaging for automated processing.

Common industrial and commercial applications for the VBPW34FASR photodiode range from optical sensing in instrumentation to telecom systems requiring sensitive IR detection. It supports surface mount technology (SMT) for efficient PCB assembly and is suitable for automotive and consumer electronics sectors.

The packaging dimensions and reliability standards make this photodiode a versatile component for designers needing fast, high-sensitivity IR detection in a compact footprint. Its combination of performance, quality certifications, and surface mount form factor facilitates use in modern electronics manufacturing and system integration.

The photodiode features a 65° angle of half sensitivity for accurate infrared detection. It is supplied in a surface mount reverse gullwing package designed for automated assembly. The device supports wavelengths from 780nm to 1050nm with a peak sensitivity at 950nm.

Typical rise and fall times are 80ns, ensuring quick signal transitions. Operating temperature ranges from -40°C to 100°C, suitable for diverse environments. Complies with RoHS and automotive AEC-Q101 standards for quality and reliability.

Offers low dark current at 2nA and short circuit current of 50μA for stable operation. Compact dimensions measure 6.4 x 3.9 x 1.2 mm with a forward polarity configuration. Explore more in our Photodiodes category on EnvMart for precision and reliable optical component solutions.
