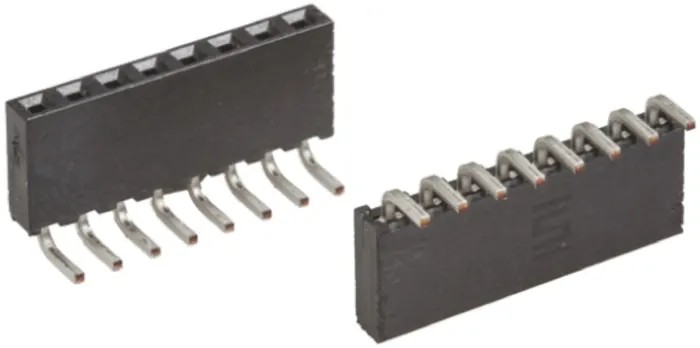

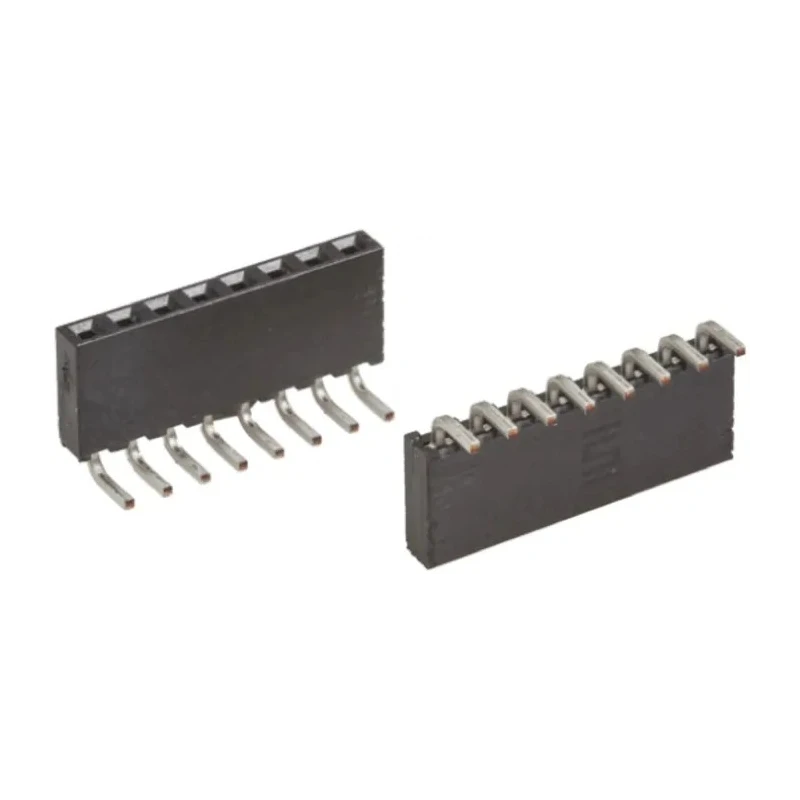

Samtec SQT Series Right Angle Through Hole PCB Socket, 10-Contact, 1 Row, 2 mm Pitch Solder SQT-110-01-L-S-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 5.5A |
| Temperature range | -55 → 125 °C |
| Model | SQT-110-01-L-S-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.5 A at 20 °C |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| SQT-1xx-01-L-S | single row vertical |
| SQT-1xx-01-L-x-RA | horizontal |
| SQT-1xx-01-L-D | double row vertical |
Key Features
- Constructed with a black liquid crystal polymer housing for high durability.
- Features bronze female contacts plated with 0.25 µm gold for excellent conductivity and corrosion resistance.
- Rated for a current of 5.5 A at 20 °C and voltage up to 450 V.
- Operating temperature range from -55 °C to 125 °C, suitable for harsh environments.
- Mounting type is through hole with solder termination for secure PCB attachment.
- The socket has a right angle orientation facilitating horizontal board connections.
- Contact tails have matte tin plating compatible with standard soldering processes.
- Meets rugged socket strip standards with a 0.5 mm square contact size.
Product Description
Samtec SQT-110-01-L-S-RA is a high-quality right angle through hole PCB socket designed for board-to-board connections in electronic assemblies.
The housing is made of black liquid crystal polymer (LCP), offering excellent mechanical strength and high temperature resistance, supporting continuous operation from -55 °C up to 125 °C. The contacts are crafted from bronze material and plated with 0.25 µm gold on the contact area for enhanced conductivity and corrosion resistance, while the PCB tails are finished in matte tin plating to ensure solid solder joints.
This socket is rated for 5.5 A current at 20 °C and can withstand voltages up to 450 V, making it suitable for demanding industrial and commercial electronic applications including manufacturing, laboratory instrumentation, and power connectors in electronic assemblies.
The connector system is designed to be mounted through hole with solder termination, providing a reliable physical and electrical bond to printed circuit boards. Its right angle orientation facilitates horizontal connections between circuit boards, maximizing space efficiency in compact electronic devices.
Black liquid crystal polymer housing for durability and temperature resistance. Bronze female contacts with gold plating for reliable electrical performance. Rated current: 5.5 A at 20 °C and voltage: 450 V for safe operation.
Operating temperature range from -55 °C to 125 °C for versatile use. Through hole mount with solder termination ensures secure PCB installation. Right angle orientation supports effective board-to-board connectivity. 0.5 mm square contact size with rugged construction for durability.
Compatible with industrial, laboratory, and manufacturing electronics applications.
This Samtec SQT Series socket is ideal for projects requiring stable and high-performance PCB connectors within electronic component manufacturing, power management systems, and other industrial and electronic equipment assembly operations. Explore more PCB Sockets and connectors through EnvMart's comprehensive selection for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this socket is 450 V.
This model is rated for a current of 5.5 A at 20 °C.
It operates within a temperature range of -55 °C to 125 °C.
The housing is made of black liquid crystal polymer, while the contacts are crafted from bronze and plated with 0.25 µm gold.
It is designed for through hole mounting with solder termination for secure attachment to the PCB.
This socket features a right angle orientation, facilitating horizontal board connections.
This model has a total of 10 contacts.
The pitch size for this socket is 2 mm.
It is suitable for industrial, laboratory, and manufacturing electronic applications, particularly for board-to-board connections.
The contact size is 0.5 mm square.
It uses a board-to-board connector system, designed for effective connectivity between circuit boards.
The contact tails are finished with matte tin plating, which is compatible with standard soldering processes.
