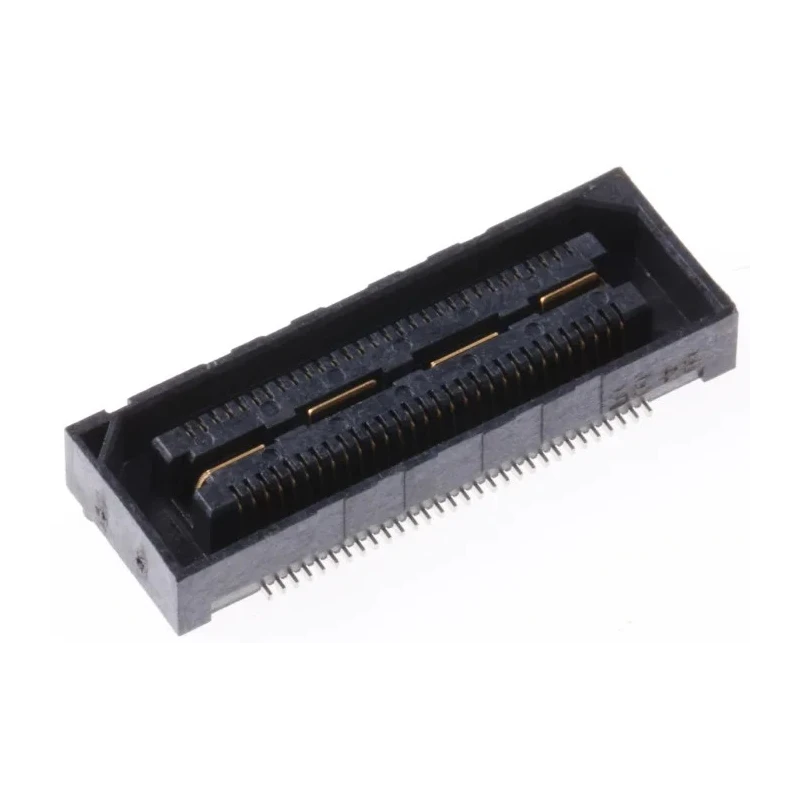

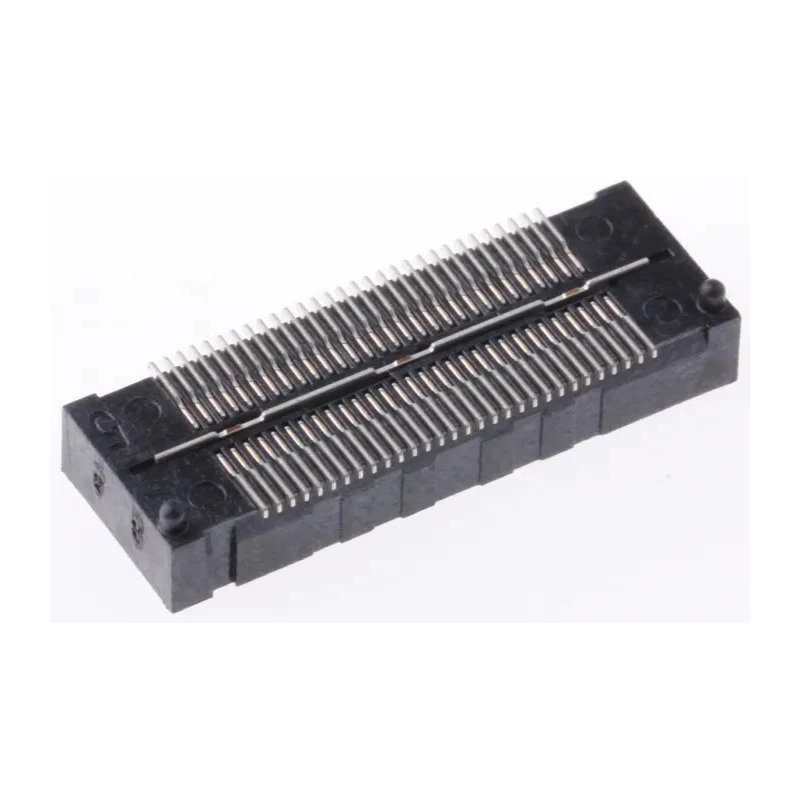

Samtec QSH Series Straight Surface PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 12A Current, Solder QSH-030-01-L-D-A

Samtec QSH-030-01-L-D-A PCB Socket is a high-quality straight surface mount connector designed for board-to-board applications. It features 60 contacts arranged in 2 rows with a fine 0.5 mm pitch, supporting continuous current rating up to 12A. The socket utilizes a liquid crystal polymer housing, offering outstanding mechanical strength and thermal stability across its wide operating temperature range from -55°C to 125°C.

This socket offers solder termination ensuring a vibration-proof, mechanically robust mount to PCBs. The phosphor bronze contacts plated with tin and gold offer low electrical resistance and corrosion protection, guaranteeing fast and stable signal transmission critical for demanding industrial applications.

Its compact design results in a stack height of approximately 5 mm, which conserves valuable PCB space while maintaining reliable connection integrity. The unit is compatible with a range of matching pin headers, simplifying assembly and maintenance by allowing cable-free board connections via simple plug and unplug.

Applications extend across automotive manufacturing, medical electronics, consumer devices, and automation control instruments where dependable board-to-board connectivity is critical. The socket also features an integrated grounding metal plate to enhance electrical safety by preventing shock hazards.

Supports high current ratings up to 12A with 60 contact points for multiple simultaneous connections. Robust solder termination provides durable mechanical and electrical stability. Wide operating temperature range suitable for harsh environmental conditions.

Phosphor bronze contact material plated with tin and gold for optimized conductivity and corrosion resistance. Compact footprint and low stack height maximize PCB layout efficiency. Board-to-board connector system enabling cable-free, secure connections.

Integrated grounding plate enhances electrical safety. Alignment pins assist accurate and convenient positioning and soldering during manufacturing.

Samtec products set high standards for reliability and performance in PCB socket technology. Explore more PCB Sockets and related connectors to optimize your electronic assembly solutions efficiently.
