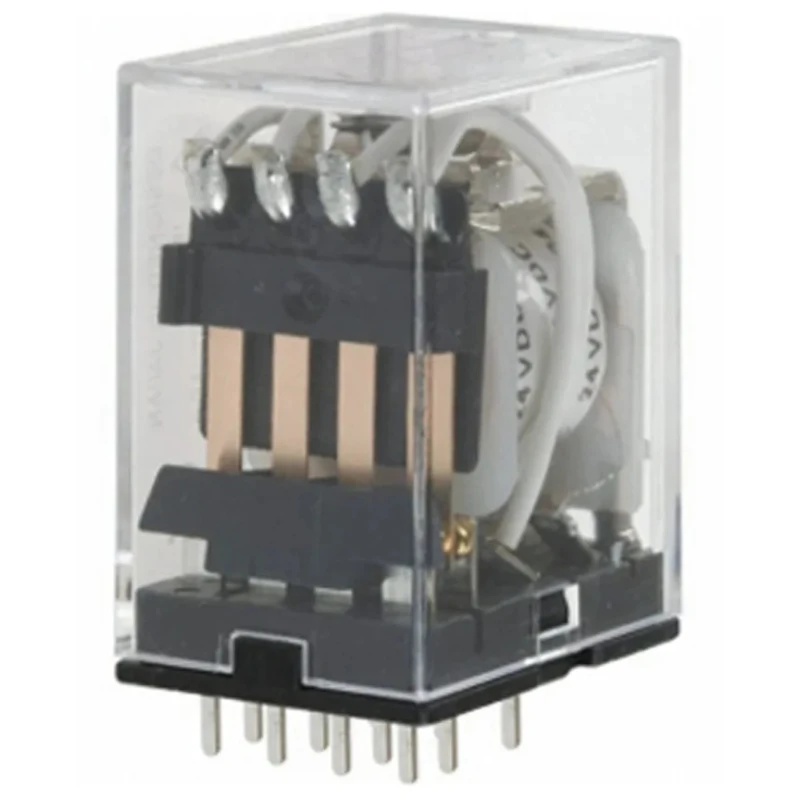

Omron PCB Power Relay 120V AC Coil Voltage 3A Switching Current 4PDT MY4-02 AC110/120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | MY4-02 AC110/120 |
| Width | 36mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MY4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 4.4kΩ |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.2W |
| Switching Power | 1.3W |
Key Features
- Designed for PCB mounting with solder terminal type for secure installation.
- Capable of switching currents up to 3 amps consistently during operation.
- Compact dimensions of 21.5mm length, 36mm width, and 28mm height.
- Gold-plated contacts provide low resistance of 50mΩ improving conductivity and reliability.
- Operates within a temperature range of -55°C to 70°C for versatile industrial use.
- Supports switching power up to 1.3 watts with switching AC and DC voltage ratings of 125V.
- High isolation voltage between coil and contacts of 2kV AC enhances operational safety.
- UL and CSA approved ensuring compliance with safety and quality standards.
Product Description
Omron MY4-02 AC110/120 Power Relay with a 120V AC coil voltage and 4PDT contact configuration is engineered for high reliability and longevity in demanding electrical switching applications. Its PCB mount with solder terminals enables firm and stable connection, making it highly adaptable for industrial control systems and automation equipment.
This relay supports a switching current of 3A and switching power of 1.3W, making it suitable for circuits requiring precise and consistent operation. The compact form factor measuring 21.5mm length, 36mm width, and 28mm height allows easy integration in systems with space constraints.
Gold-plated contacts reduce contact resistance to 50mΩ, ensuring excellent conductivity and minimal power loss, especially beneficial in sensitive low-load conditions. The device is designed to operate effectively within an extensive temperature range from -55°C to 70°C, ensuring stable performance in diverse industrial environments.
The relay offers an isolation voltage of 2kV AC between coil and contacts, significantly enhancing operational safety by preventing electrical shorts in high-voltage applications. An electrical lifespan of approximately 500,000 operations guarantees durability and reliability over prolonged usage.
Certifications including UL and CSA recognize the MY4 as a trustworthy component for industrial and commercial use. Applications include automatic switching in industrial control systems, automation devices, PCB-mounted equipment, and environments that demand reliable high-voltage switching solutions.
Designed for PCB mounting with solder terminal type for stable connections. Supports switching current up to 3 amperes with a switching power of 1.3 watts. Compact dimensions for easy integration in various electronic assemblies.
Gold-plated contacts ensure minimal resistance and reliable conductivity. Wide operating temperature range from -55°C to 70°C suitable for diverse applications. High isolation voltage of 2kV AC between coil and contacts for enhanced safety.
Electrical life up to 500,000 operations ensuring long-term function. Certified by UL and CSA for assured quality and compliance. Ideal for industrial control systems, automation, and PCB devices. Explore EnvMart for a broad selection of Power Relays and related industrial electrical components from leading brands like Omron.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MY4-02 relay operates with a coil voltage of 120V AC.
This model supports a maximum switching current of 3A.
The relay has compact dimensions of 21.5mm in length, 36mm in width, and 28mm in height.
The MY4-02 features a 4PDT contact configuration.
The gold-plated contacts have a contact resistance of 50mΩ, ensuring low resistance and improved conductivity.
It operates effectively within a temperature range of -55°C to 70°C.
The relay provides a high isolation voltage of 2kV AC between the coil and contacts.
This relay is certified by UL and CSA, ensuring compliance with safety and quality standards.
It is designed for PCB mounting with solder terminal type for secure installation.
The MY4-02 supports a maximum switching power of 1.3 watts.
The coil resistance of this relay is 4.4kΩ.
It is suitable for automatic switching in industrial control systems, automation devices, and PCB-mounted equipment.
