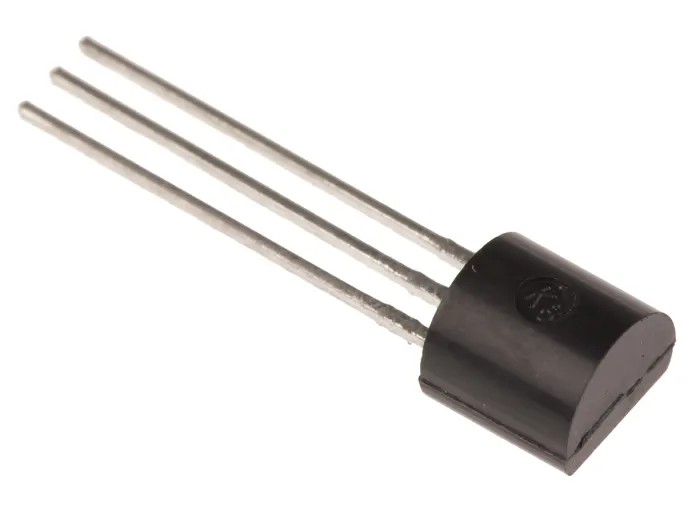

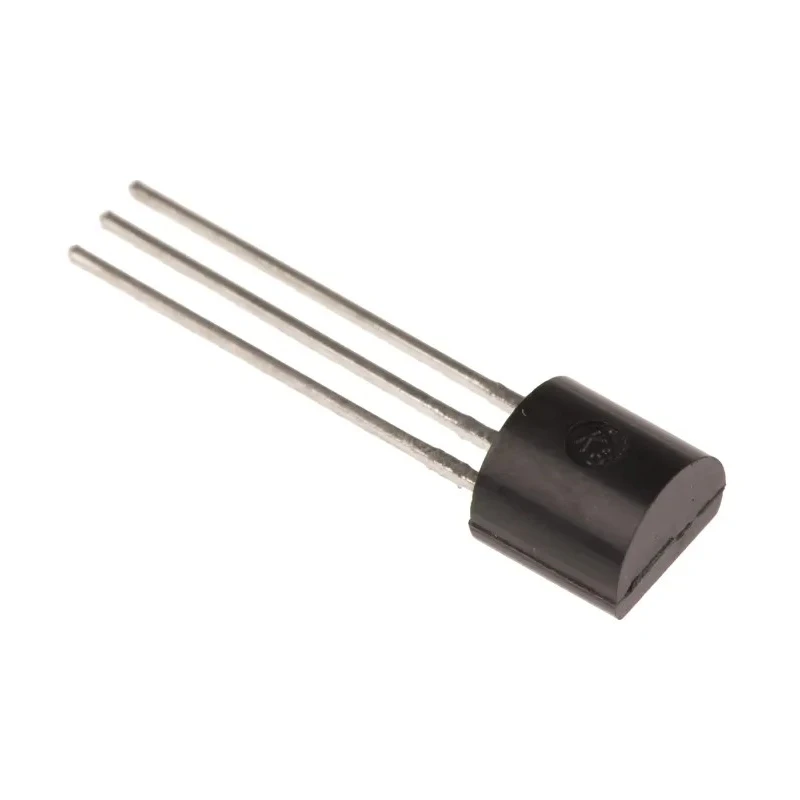

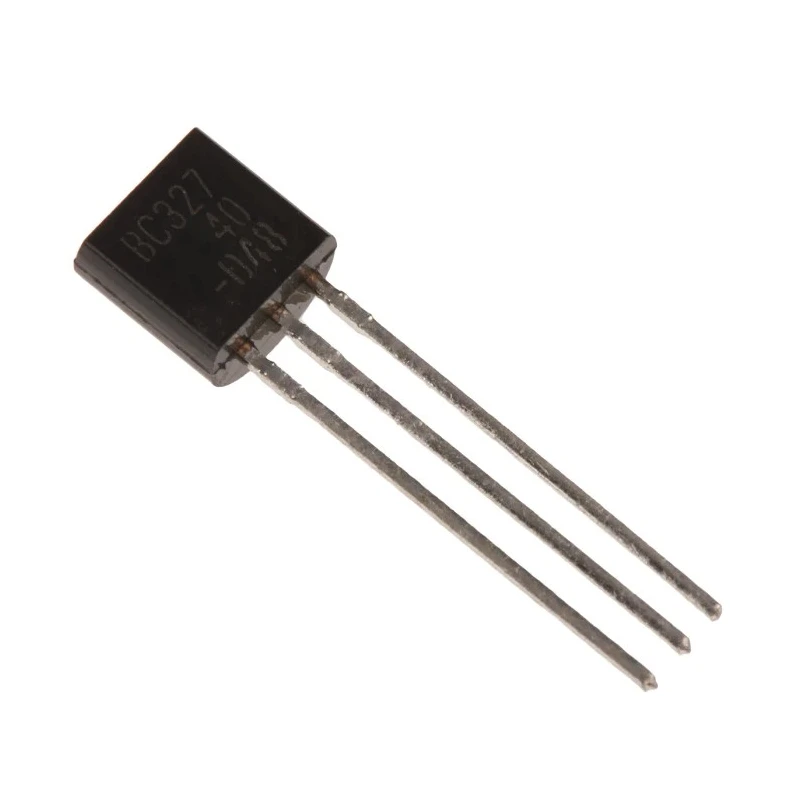

onsemi Small Signal PNP Bipolar Junction Transistor, 800 mA, 50 V, TO-92, 3-Pin BC32740BU

onsemi BC32740BU is a small signal PNP bipolar junction transistor designed for electronic circuits requiring switching and amplification with collector currents up to 800 mA and collector-emitter voltage of 50 V. Packaged in a TO-92 through-hole configuration with 3 pins, it offers ease of mounting in various PCB layouts.

This transistor features a minimum current gain of 250, which ensures efficient amplification in low to medium power circuits. With a maximum power dissipation of 625 mW and a transition frequency of 100 MHz, it suits applications involving moderate switching speeds and signal frequencies.

The BC32740BU is constructed to operate at temperatures up to 150°C, providing reliable performance in industrial, laboratory, and commercial electronic equipment. Its compact TO-92 package dimensions (20.95 mm height, 5.2 mm length, and 4.19 mm width) facilitate its use in tight PCB spaces.

Engineered for general-purpose use, this PNP transistor supports devices ranging from amplifiers to signal processing circuits. The robust design avoids automotive certification but remains suitable for a variety of semiconductor applications in discrete component assemblies.

Supports maximum DC collector current of 800 mA. Maximum collector-emitter voltage rating of 50 V. TO-92 through-hole package with three pins. Minimum DC current gain (hFE) of 250. Maximum power dissipation of 625 mW. Maximum transition frequency of 100 MHz.

PNP transistor polarity configuration. Operating temperature up to 150°C.

This onsemi BC32740BU transistor is a reliable choice for designing small signal amplification and switching circuits in semiconductor discrete applications. Explore more products within the Bipolar Transistors category at EnvMart for your electronic component needs.
