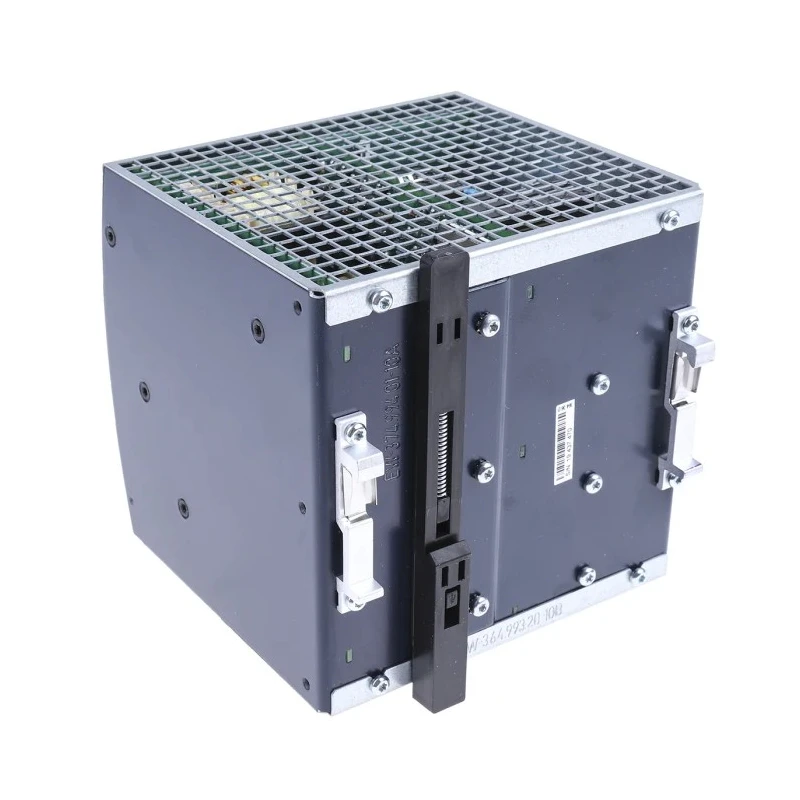

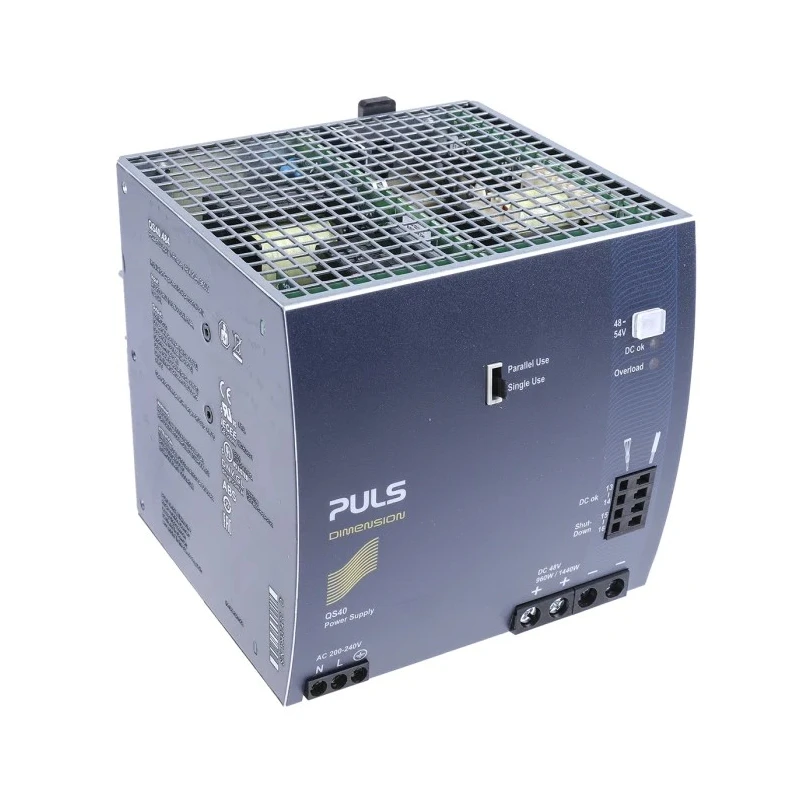

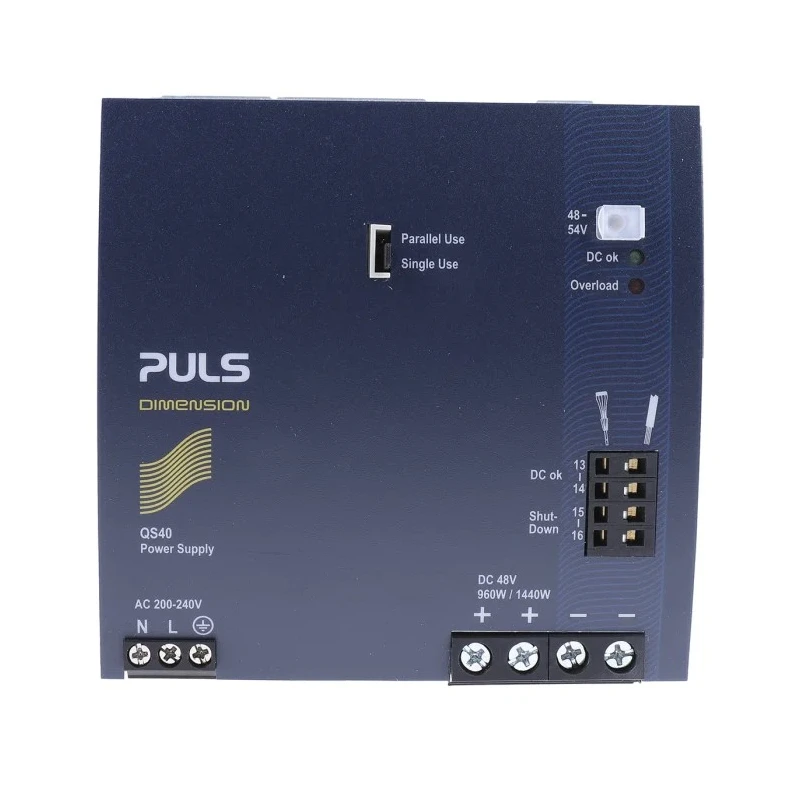

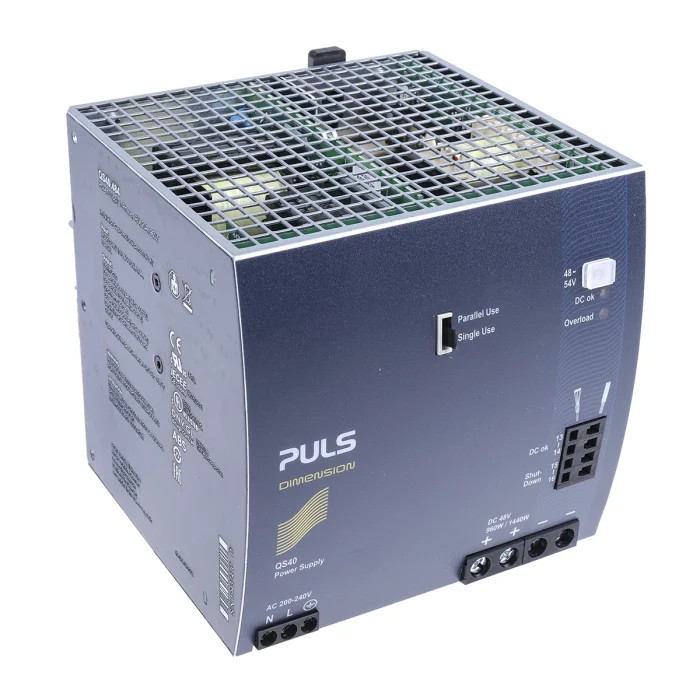

PULS DIMENSION DIN Rail Switched Mode Power Supply 240V AC Input 48V DC Output 20A 960W QS40.484
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | PULS |
| Power | 960W |
| Efficiency | 95% |
| Height | 124mm |
| Model | QS40.484 |
| Depth | 127mm |
| IP Rating | IP20 |
| Width | 125mm |
| Series | DIMENSION |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Standards/Approvals | EN 50178 + EN 60950 |
| Maximum Output Voltage | 48V dc |
| Minimum Input Voltage | 200V ac |
Key Features
- Single-phase AC input voltage range from 200V to 240V ensures compatibility with common electrical systems.
- Efficiency up to 95% minimizes energy loss and reduces operational costs.
- Compact dimensions (125mm width x 124mm height x 127mm depth) enable easy installation on DIN rails.
- Operating temperature range from -25°C to 70°C allows reliable performance in various environments.
- Includes diagnostic indicators such as green DC-ok LED and red overload LED for easy monitoring.
- Equipped with quick-connect spring-clamp terminals for fast and secure wiring.
- Ripple factor and noise level minimized to 150mVpp for stable output.
- Protection features include low inrush current surge and safe hiccup PLUS overload mode.
Product Description
PULS QS40.484 DIN Rail Switched Mode Power Supply provides a reliable 48V DC output at 20A with 960W power rating, featuring a single-phase AC input voltage range from 200V to 240V. It is part of the DIMENSION series known for high-quality and cost-optimized design suitable for industrial applications.
The power supply offers compact form factor with dimensions of 125mm width, 124mm height, and 127mm depth, making it easy to mount on standard DIN rails. Its efficiency rating up to 95% supports energy-saving operational conditions.
Operational temperature span from -25°C to 70°C allows it to be used in harsh environmental situations. The device integrates diagnostic components including a green DC-ok LED and a red overload LED, facilitating quick monitoring of operational status. The dry DC-ok contact further supports easy fault detection.
Installation is simplified through quick-connect spring-clamp terminals, ensuring secure and swift electrical connections. The low ripple factor and minimal noise output at 150mVpp ensure stable and clean power delivery crucial for sensitive electronic equipment.
Advanced protection features include negligible inrush current surge and a safe hiccup PLUS overload mode that safeguards the device and connected components during overloads. The current sharing functionality allows multiple units to operate in parallel to meet higher power demands in automation and industrial control systems.
This DIN rail power supply complies with the EN 50178 and EN 60950 safety standards and holds certifications such as IECUL approval, ENSELVCE certification, GLATEX approval, and IECEx certification, ensuring dependable and certified performance.
Typical applications include industrial control, automation systems, communication and instrumentation equipment, and other machinery requiring a stable 48V DC power supply. Choose the PULS QS40.484 to ensure efficient, reliable, and safe power supply integration in your industrial and manufacturing projects.
Explore further power supply solutions and accessories at EnvMart for optimized system design. Single-phase input voltage with adjustable output voltage range. High immunity to transients and power surges ensures operational robustness.
Compact and lightweight design ideal for space-constrained installations. Safe operating range from -25°C to 70°C encompassing a wide environmental scope. Certified to meet international protection and safety standards.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 960W, providing a stable 48V DC output at 20A.
It accepts a single-phase AC input voltage range from 200V to 240V.
This unit has compact dimensions of 125mm in width, 124mm in height, and 127mm in depth, making it suitable for DIN rail mounting.
The efficiency of this model is up to 95%, which helps minimize energy loss during operation.
It operates effectively within a temperature range of -25°C to 70°C, allowing it to function in various environments.
It complies with EN 50178 and EN 60950 safety standards and holds certifications such as IECUL approval and IECEx certification.
It is equipped with quick-connect spring-clamp terminals, ensuring fast and secure wiring.
The ripple factor is minimized to 150mVpp, ensuring stable and clean power delivery, which is crucial for sensitive electronic equipment.
Yes, it supports current sharing functionality, allowing multiple units to operate in parallel to meet higher power demands.
Typical applications include industrial control, automation systems, communication and instrumentation equipment, and other machinery requiring a stable 48V DC power supply.
This model is manufactured in the Czech Republic.
