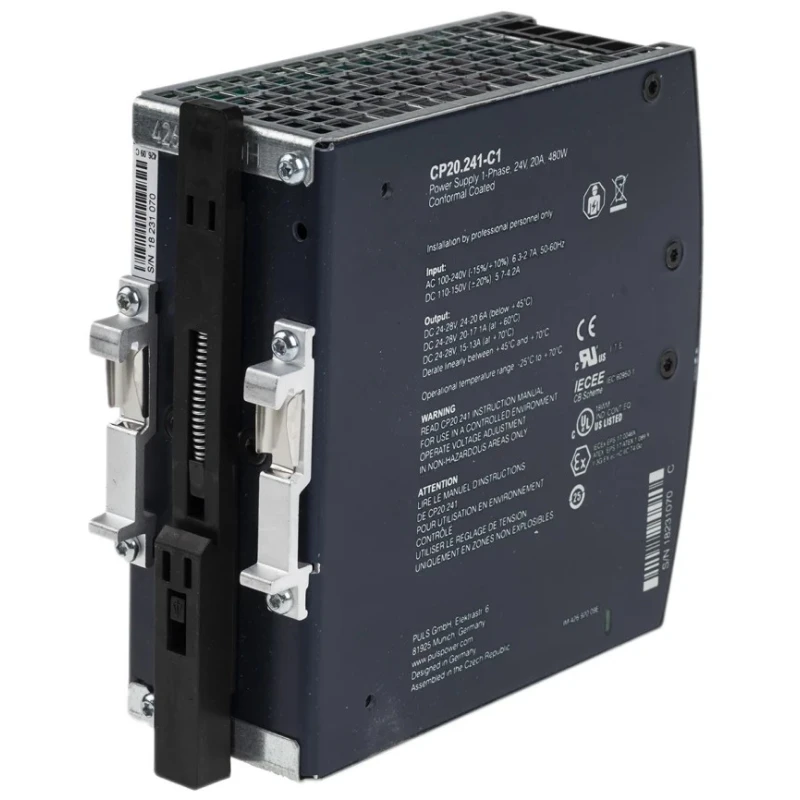

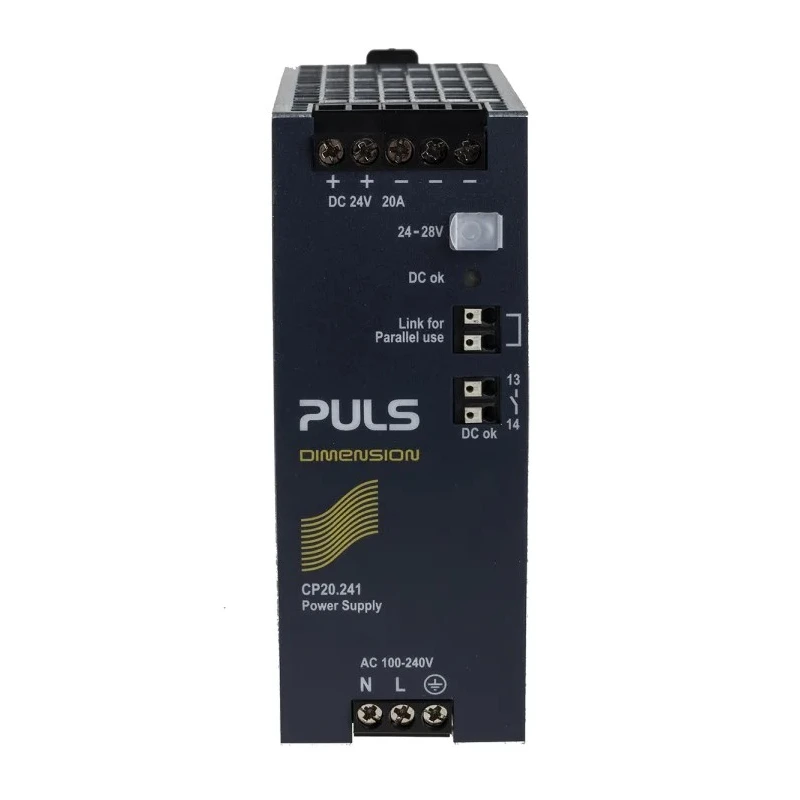

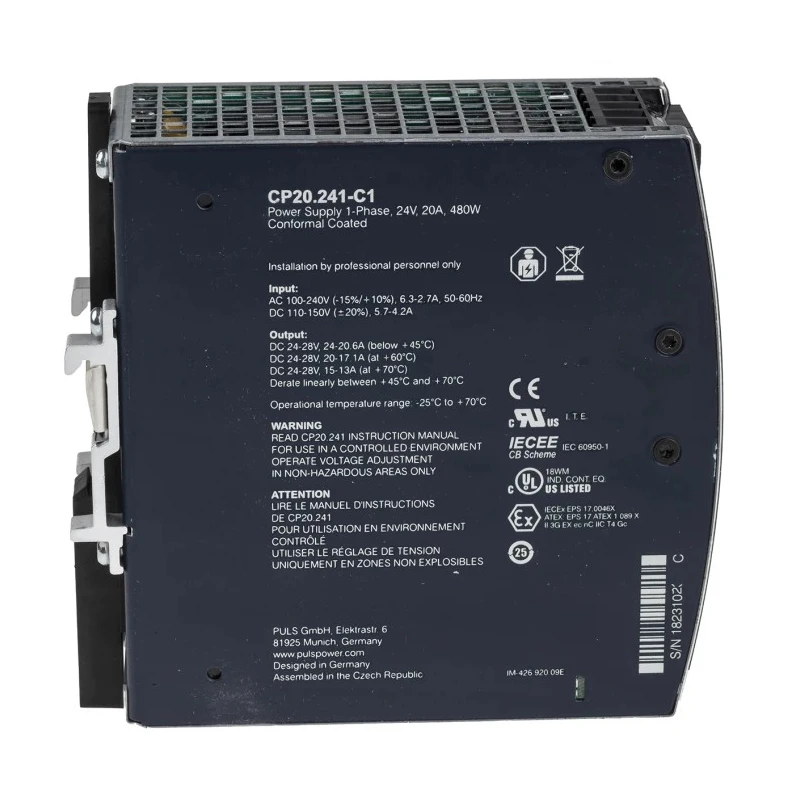

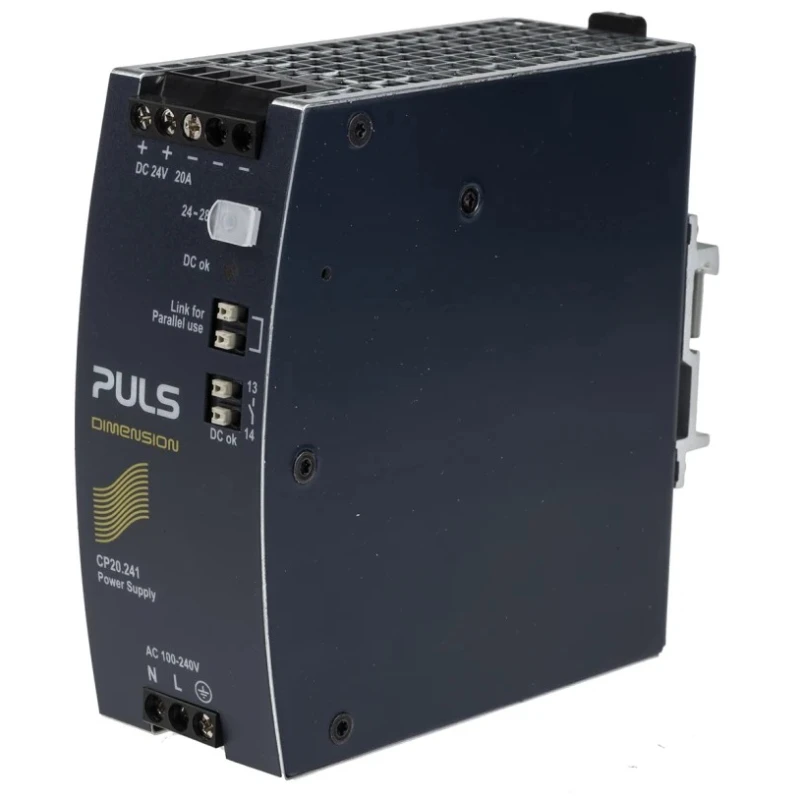

PULS CP DIN Rail Power Supply 1 Phase 24V DC, 20A Output, 480W Power, IP20, Czech Republic CP20.241-C1

PULS CP20.241-C1 DIN Rail Power Supply is a high-quality industrial power supply unit designed to deliver reliable 24V DC output at 20A, with a total power output of 480W. It supports a wide AC input voltage range from 100V AC up to 240V AC, making it adaptable to various electrical environments. This unit features an IP20 rating, providing adequate protection in most indoor industrial settings.

The power supply is equipped with conformal coated PC boards to ensure durability and resistance in harsh environments, thereby extending product life and reliability. It incorporates active power factor correction to optimize energy efficiency and reduce electricity costs, achieving an efficiency rating of up to 95.6%.

The unit’s operating temperature range extends from -25°C to a maximum of 70°C, allowing it to perform effectively in diverse climatic conditions. Its compact size - 124mm in height, 48mm in width, and 127mm in depth - facilitates easy DIN rail mounting in control panels and electrical enclosures.

This power supply is certified for use in hazardous areas under ATEX and IECEx standards, supporting safety in potentially explosive environments. It also carries multiple global approvals including cULus, CE, UL 508, and IEC compliance, attesting to its quality and safety.

Common applications include ITE commercial devices, industrial automation, control systems, and any electrical panels requiring a stable, efficient DC power source. Its advanced features such as minimal inrush current and adjustable output voltage enhance operational flexibility.

Operates with an input voltage range from 100V to 240V AC. Provides a stable 24V DC output with 20A current capacity. High efficiency up to 95.6% reduces operating costs. Active power factor correction ensures energy optimization.

Conformal coating protects against humidity and dust. Compact design for DIN rail mounting in confined spaces. Certified for hazardous environments - ATEX and IECEx certified. Wide operating temperature range: -25°C to +70°C.

Complies with UL, CE, IEC standards for safety and performance. Explore more high-quality DIN rail power supplies on EnvMart to suit your industrial and commercial power needs.
