PULS Buffer Module for use with UB Series, UF Series UF20.241

Free Delivery in India | Lowest Global Shipping Charges

PULS Buffer Module for use with UB Series, UF Series UF20.241

Name: PULS Buffer Module for use with UB Series, UF Series UF20.241
Brand: PULS
SKU: 343307
Price: 20.22 USD
Availability: InStock



Category Buffer Module Brand PULS Condition New

Specifications

Country of Origin	Czech Republic
Brand	PULS
Model	UF20.241
Series	UF
Accessory Type	Buffer Module
For Use With	UB
Standards/Approvals	ATEX, CSA

Key Features

This buffer module features service-free electrolytic capacitors for maintenance-free operation.
Buffer units can be connected in parallel to increase output capacity and hold-up time.
Includes clear status indication via status LED and signal outputs for easy monitoring.
Provides a constant output voltage in buffer mode ensuring stable performance.
Extends hold-up time under lower load conditions to support critical equipment.
Equipped with quick connect spring clamp terminals for fast and secure installation.
Can be added at any point in the load circuit to enhance buffering capabilities.
Meets key standards and certifications including ATEX, CSA, CE, UL 508, UL 60950-1, and IEC 60950-1.

Product Description

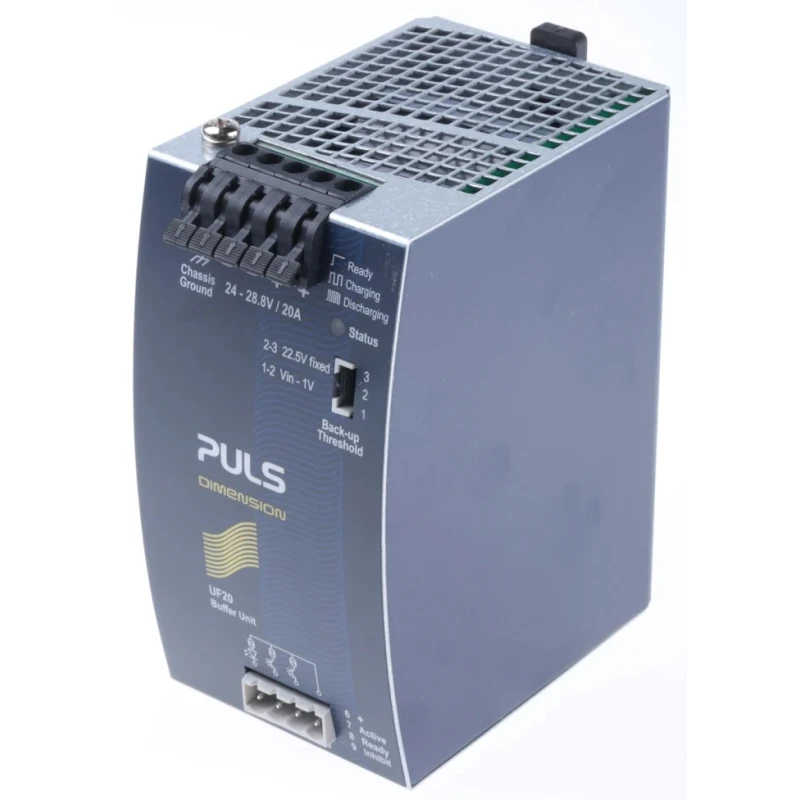

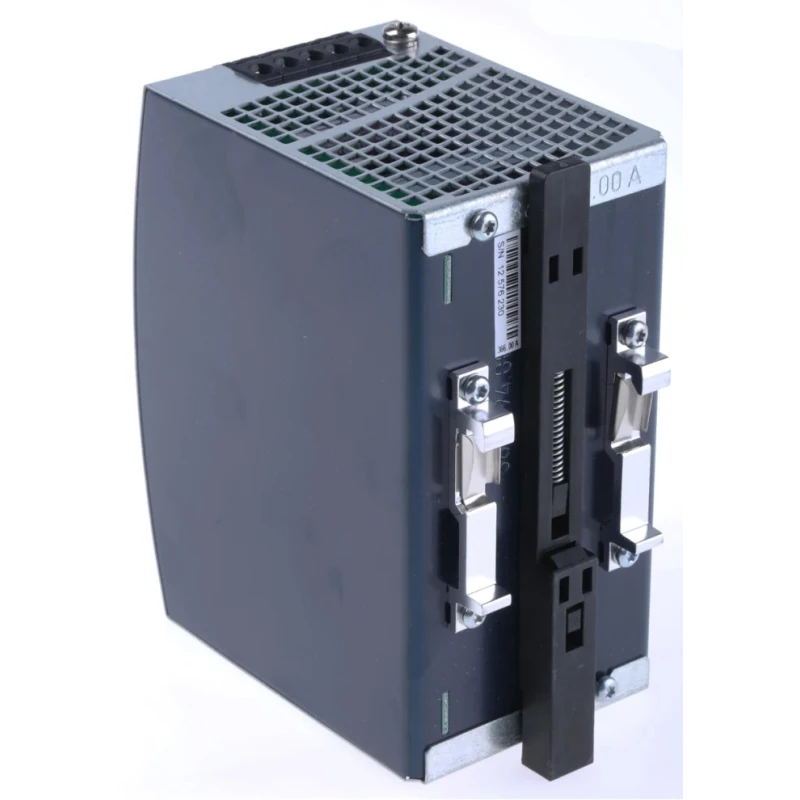

The PULS UF20.241 Buffer Module is specifically designed for use with the UB and UF Series power supplies to provide buffering of 24V loads. It incorporates service-free electrolytic capacitors that contribute to a maintenance-free and reliable operation within industrial environments.

The buffer time is approximately 0.2 seconds at a load of 20A (24V), allowing for stable power supply during transient interruptions. Multiple buffer units can be connected in parallel to increase the output capacity or extend the hold-up time, which is beneficial for applications demanding high availability.

Installation is simplified with quick connect spring clamp terminals and the unit can be integrated at any point in the load circuit. The module features clear status indication through an LED and signal outputs, enabling easy system monitoring and fault detection.

Maintaining a constant output voltage in buffer mode ensures sensitive equipment receives stable power. The device is well-suited for industrial, manufacturing, automation, and control applications, where uninterrupted power is imperative.

This Buffer Module complies with important standards and approvals such as ATEX, CSA, CE, UL 508, UL 60950-1, and IEC 60950-1, reflecting its suitability for commercial and industrial use. Originating from the Czech Republic, it demonstrates a high manufacturing quality standard.

Contains service-free electrolytic capacitors for durability. Parallel connection capability to enhance output and hold-up time. Status LED and signal outputs provide clear operational feedback. Maintains constant output voltage in buffer mode.

Quick connect spring clamp terminals allow easy installation. Can be installed at any point within the load circuit for flexibility. Certified with ATEX, CSA, CE, UL, and IEC standards for safety and compliance. Manufactured in Czech Republic ensuring high quality.
