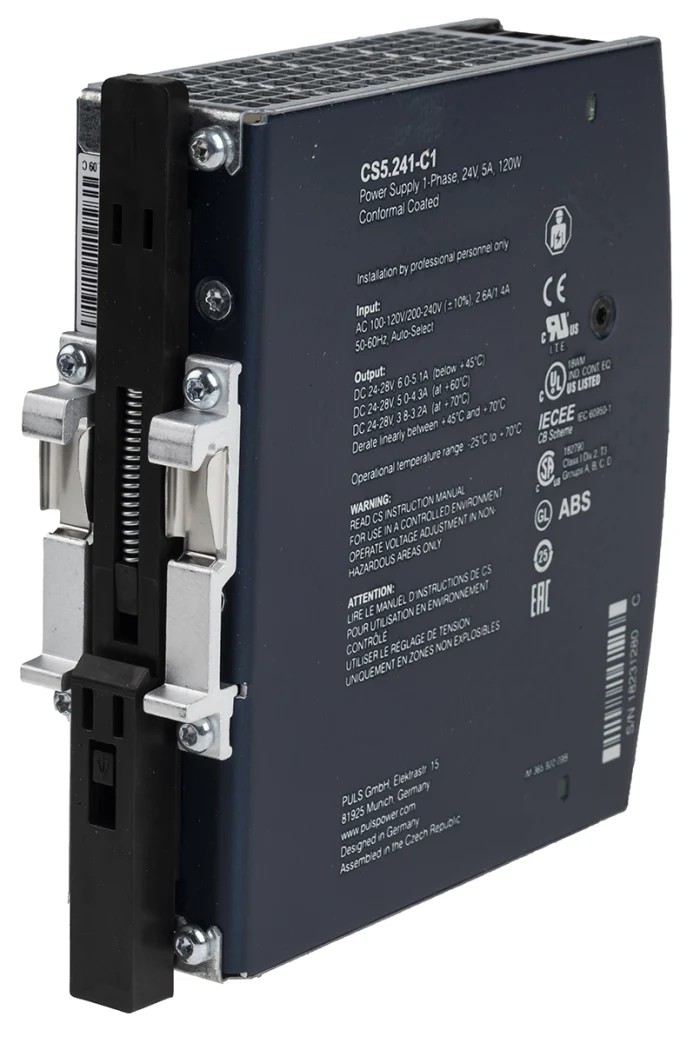

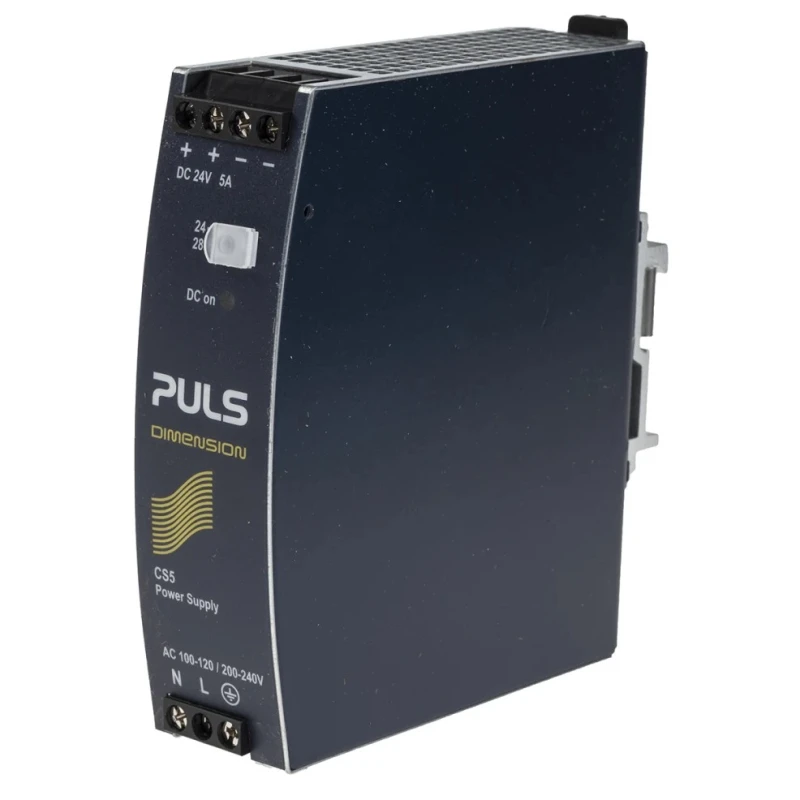

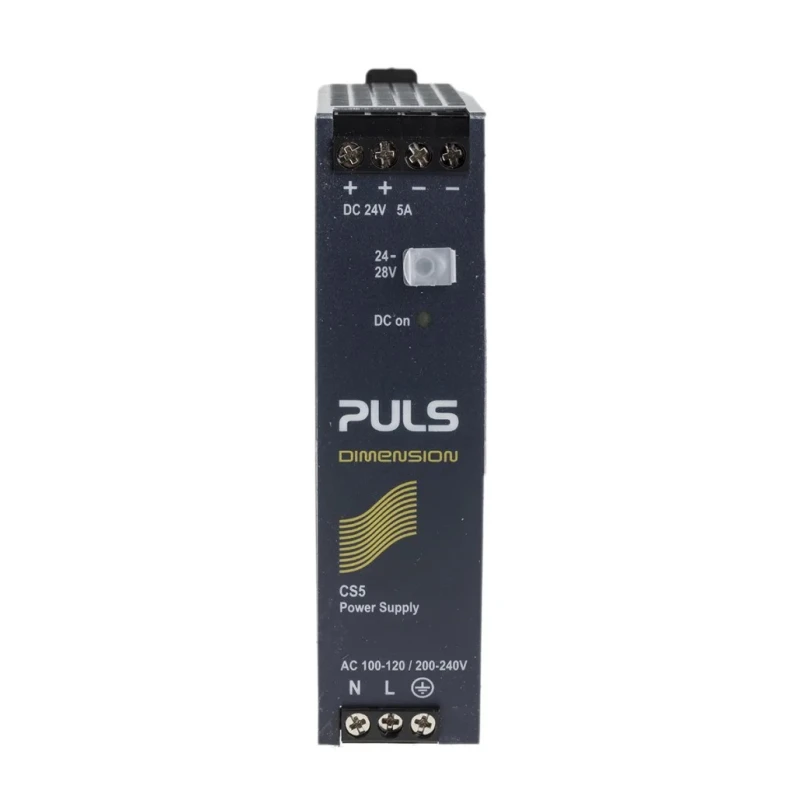

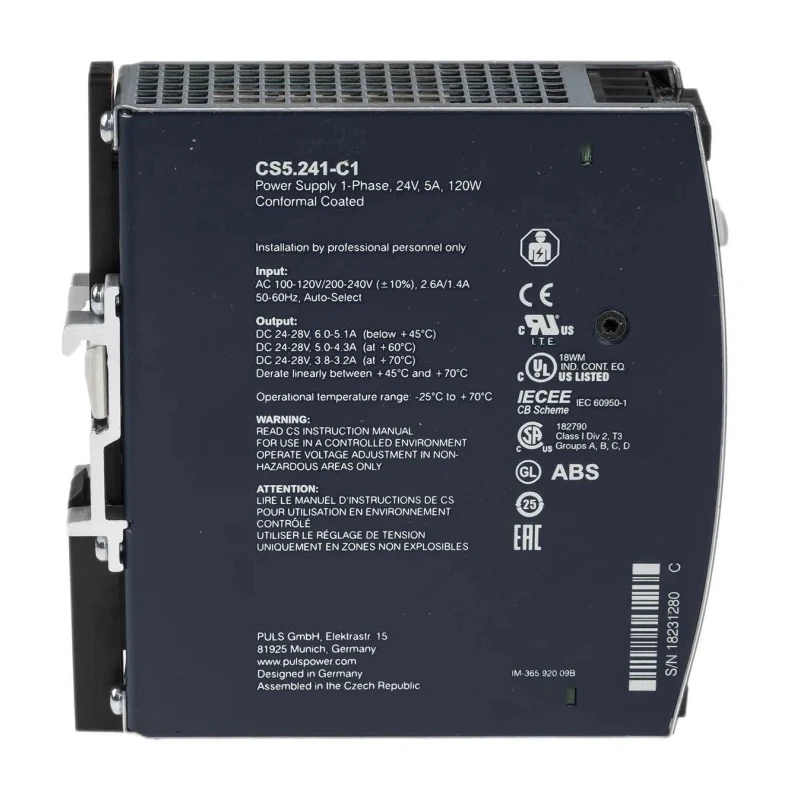

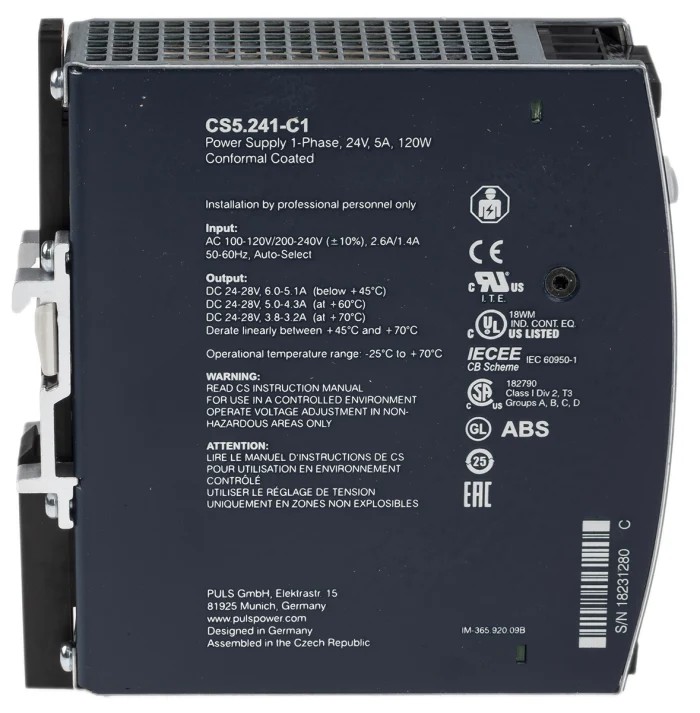

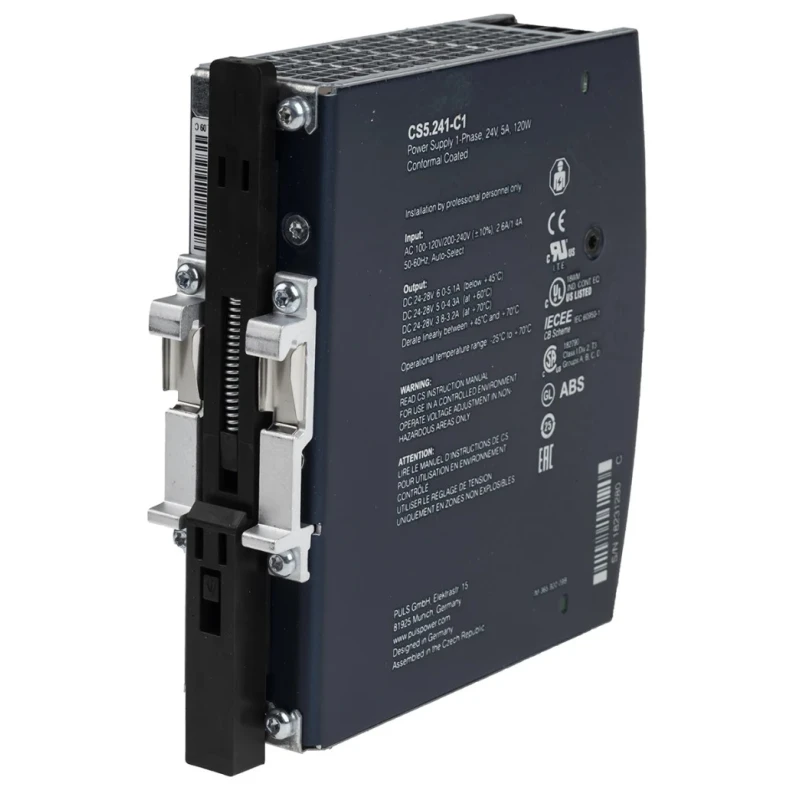

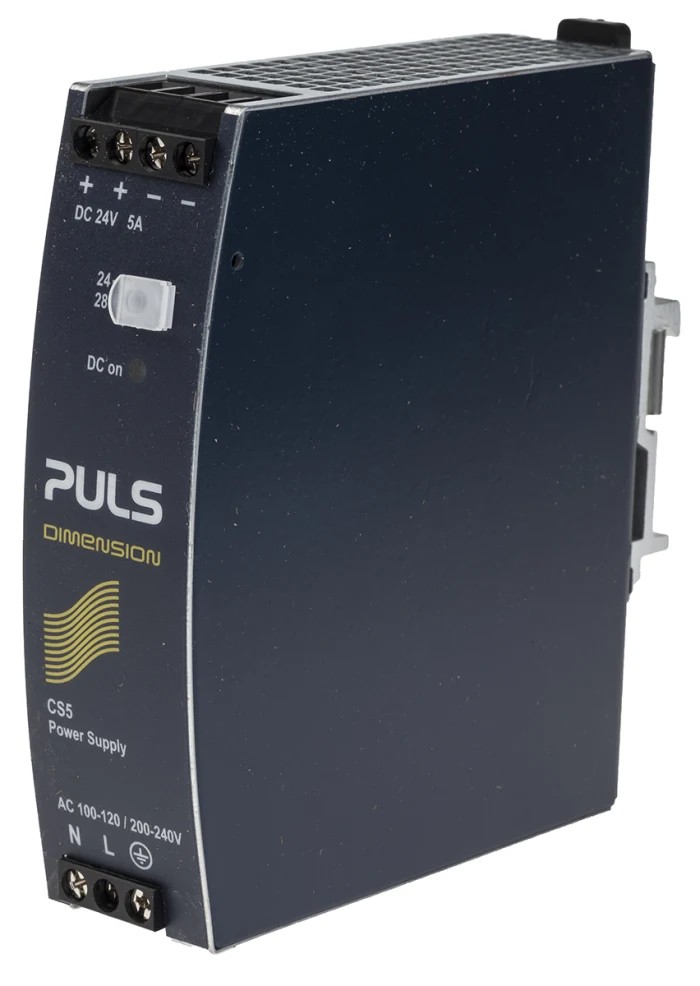

PULS Auto DIN Rail Power Supply 120V AC, 240V AC Input 24V DC, 5A Output, 120W Power CS5.241-C1

PULS CS5.241-C1 Auto DIN Rail Power Supply provides reliable DC output voltage of 24V with a maximum current of 5A, delivering a total power output of 120W. Designed for industrial and commercial power supply needs, it supports AC input voltages of 120V and 240V with a broad operating range between 100V AC and 240V AC.

This power supply unit operates efficiently, reaching up to 90.2% efficiency, reducing energy loss during operation. It is engineered for durability with an operating temperature range from -25°C to 70°C, making it suitable for harsh industrial environments. The compact form factor with a height of 124mm, width of 32mm, and depth of 117mm allows for easy integration into DIN rail mounting systems.

Featuring active power factor correction, conformal coating for environmental protection, and low electromagnetic emissions, this model ensures stable and high-quality power delivery. The IP20 rated housing offers protection against solid foreign objects, appropriate for most industrial installations.

The device complies with rigorous international standards including cRUus UL 60950-1, CE marking, UL 508, IECEE IEC 60950-1, GL, cULus, CSAus, and ANSI/ISA 12.12.01-2007, certifying its quality and safety in hazardous area applications. Practical handling and minimal inrush surge current simplify installation and reduce electrical stress.

Typical applications include powering circuit breakers, industrial machinery, commercial and ITE equipment, and supporting powerful motor starts in various settings. The PULS CS5.241-C1 power supply is a cost-optimized solution that does not compromise on performance or reliability.

Wide input voltage range from 100V AC to 240V AC ensures versatile application. High efficiency of up to 90.2% optimizes energy consumption. Compact design with dimensions 124mm height, 32mm width, and 117mm depth. Operates reliably in temperature range from -25°C to 70°C.

Single output channel providing stable DC voltage for industrial use. IP20 rated enclosure for protection against solid objects. Complies with multiple certifications including UL 60950-1, CE, UL 508, and IEC standards. Advanced features include active power factor correction and minimal inrush current.

Suitable for industrial environments, circuit breakers, and powerful motor starts. Manufactured in Czech Republic ensuring quality and reliability. Explore more reliable power supplies and related products in the DIN Rail Power Supplies category at EnvMart for your industrial and commercial electrical needs.
