| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | SDM03U40-7 |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | SDM03U40 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 370mV |

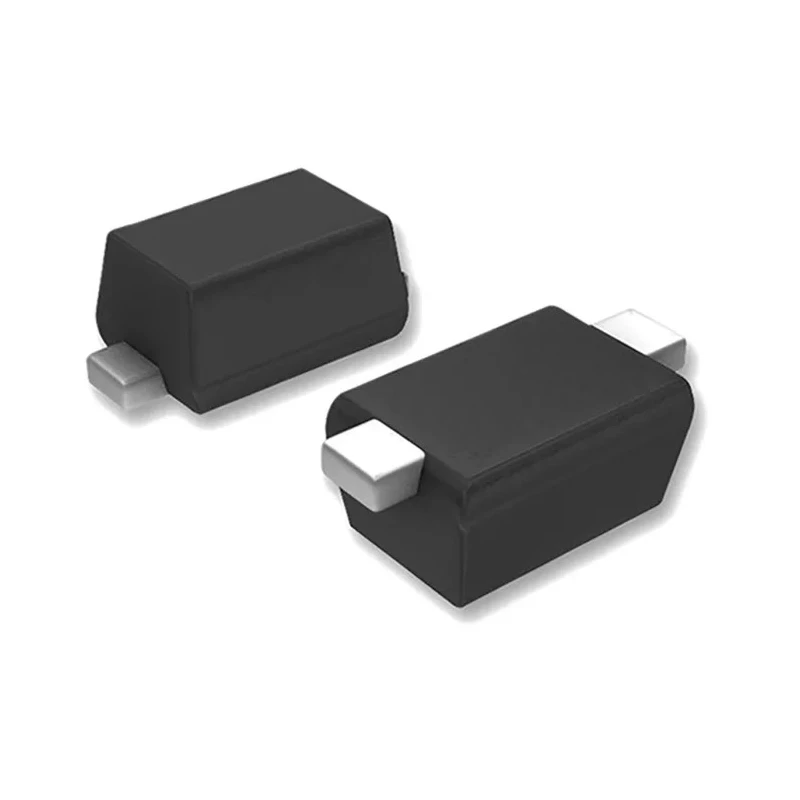

DiodesZetex SDM03U40-7 is a Schottky barrier diode designed for discrete semiconductor applications requiring low voltage drop and high switching speed. Housed in a compact surface mount SOD-523 package, it offers a maximum continuous forward current of 30 mA and a peak reverse repetitive voltage of 40 V.
This diode features excellent thermal stability and high reliability, making it suitable for use in automotive electronics, power rectification, and signal processing within industrial, commercial, and embedded electronics applications.
The compact dimensions (1.3 mm length, 0.9 mm width, and 0.7 mm height) enable high-density PCB layouts. It operates efficiently across a wide temperature range from -40°C to 125°C and complies with the automotive standard AEC-Q101, ensuring suitability for rugged automotive environments.
Its two-pin single diode configuration allows versatile integration in circuits requiring low forward voltage and minimal leakage current, with a peak reverse current of just 500 nA for enhanced efficiency.
Provides low forward voltage drop for efficient rectification. Compact SOD-523 surface mount package supports high-density PCB designs. Peak forward surge current of 200 mA enables transient handling capability. Wide operating temperature range from -40°C to 125°C for harsh environments.
Meets automotive standard AEC-Q101 for quality assurance. Low leakage current enhances energy efficiency and performance. Ideal for power management, signal rectification, and switching applications. Manufactured with high reliability to suit industrial and automotive needs.
It is ideal for use in industries including electronics manufacturing, automotive design, and industrial control systems.
