DiodesZetex 100 V 5 A Schottky Diode Surface Mount PowerDI5 3-Pin PDS5100-13

Free Delivery in India | Lowest Global Shipping Charges

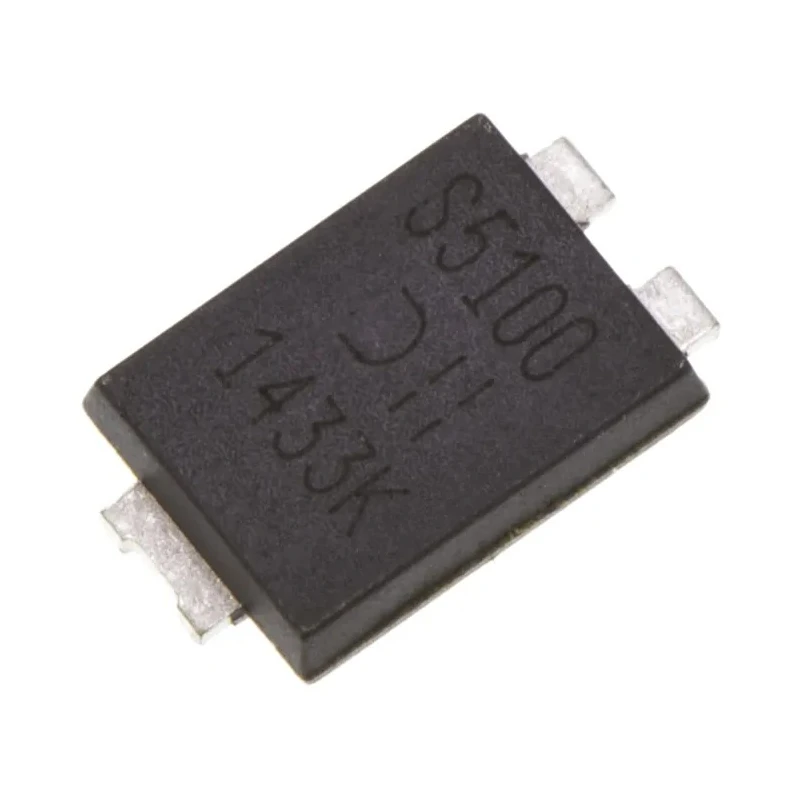

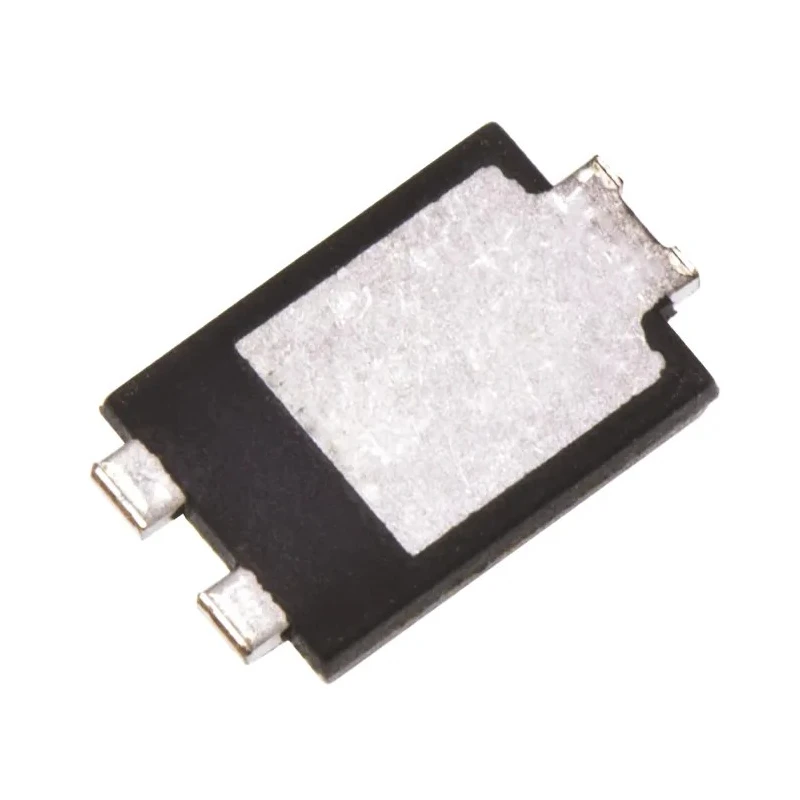

DiodesZetex 100 V 5 A Schottky Diode Surface Mount PowerDI5 3-Pin PDS5100-13

Name: DiodesZetex 100 V 5 A Schottky Diode Surface Mount PowerDI5 3-Pin PDS5100-13
Brand: DiodesZetex
SKU: 363661
Price: 1.32 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.15mm
Length	4.05mm
Model	PDS5100-13
Width	5.45mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	PowerDI5
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	120A
Maximum Forward Voltage Vf	890mV

Key Features

Features a low forward voltage of 890 mV for improved efficiency.
Capable of maximum continuous forward current of 5 A for robust operation.
Designed with a 3-pin PowerDI5 package for surface mounting.
Operates reliably from -65°C to 150°C, suitable for demanding environments.
Supports peak non-repetitive forward surge current up to 120 A.
Certified to automotive standard AEC-Q101 ensuring high quality and durability.
Compact form factor with dimensions 4.05 mm length, 5.45 mm width, and 1.15 mm height.
Provides peak reverse voltage rating of 100 V, suitable for power applications.

Product Description

DiodesZetex PDS5100-13 is a high-performance 100 V, 5 A Schottky diode designed for surface mount applications requiring efficient power rectification. This 3-pin diode housed in a PowerDI5 package features a low forward voltage of 890 mV, ensuring low power loss and enhanced performance in power circuits.

The diode supports a continuous forward current of 5 A and a peak non-repetitive surge current of 120 A, making it suitable for industrial, automotive, and power management applications. Its operating temperature range extends from -65°C to 150°C, enabling reliable operation in harsh and demanding environments. Compliance with the automotive standard AEC-Q101 further underscores its robustness for use in automotive electronic systems.

With compact dimensions of 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height, the PDS5100-13 diode fits well in densely packed PCB layouts. The device offers a peak reverse repetitive voltage of 100 V and a peak reverse current of 20 mA, optimizing its efficiency in blocking unwanted currents during switching operations.

The Schottky diode architecture reduces forward voltage drop and improves switching speed, making it ideal for high-frequency applications such as power supplies, inverters, and switching regulators. It is a reliable component widely used in electronic manufacturing, automotive electronics, power conversion, and various industrial electronics systems.

Features a low forward voltage of 890 mV for improved efficiency. Capable of maximum continuous forward current of 5 A for robust operation. Designed with a 3-pin PowerDI5 package for surface mounting. Operates reliably from -65°C to 150°C, suitable for demanding environments.

Supports peak non-repetitive forward surge current up to 120 A. Certified to automotive standard AEC-Q101 ensuring high quality and durability. Compact form factor with dimensions 4.05 mm length, 5.45 mm width, and 1.15 mm height.

Provides peak reverse voltage rating of 100 V, suitable for power applications. Explore more Schottky Diodes and other semiconductor solutions in the Electronics & Electricals category on EnvMart.
