DiodesZetex 30 V 200 mA Surface Mount Switching Diode 2-Pin DFN BAT54LP-7

Free Delivery in India | Lowest Global Shipping Charges

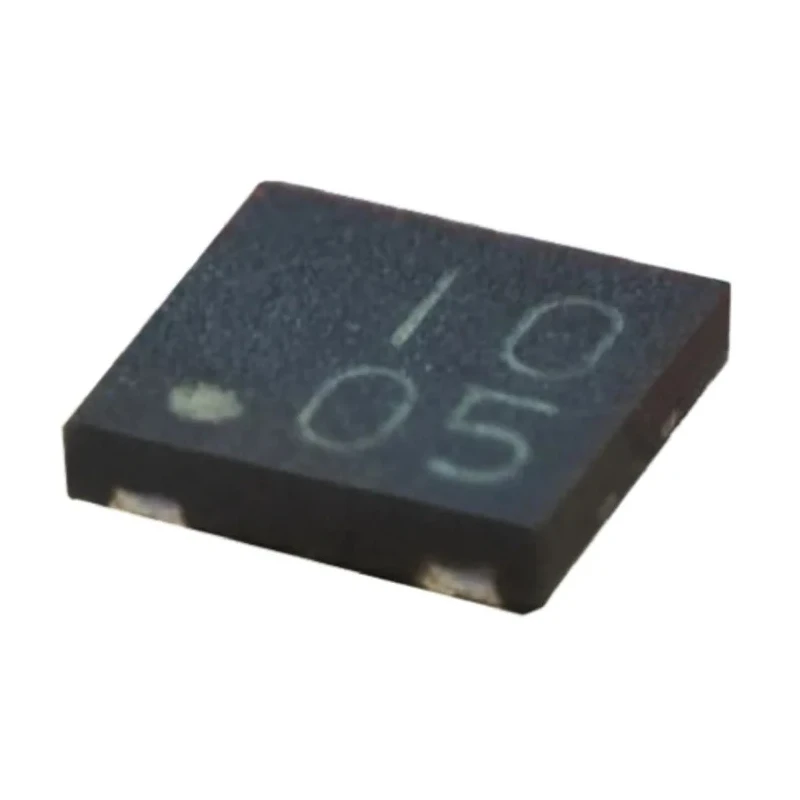

DiodesZetex 30 V 200 mA Surface Mount Switching Diode 2-Pin DFN BAT54LP-7

Name: DiodesZetex 30 V 200 mA Surface Mount Switching Diode 2-Pin DFN BAT54LP-7
Brand: DiodesZetex
SKU: 363540
Price: 0.07 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.48mm
Length	1.08mm
Model	BAT54LP-7
Width	0.68mm
Mount Type	Surface
Series	BAT54LP
Maximum Operating Temperature	125°C
Package Type	DFN
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	5ns

Key Features

This diode is designed with a 2-pin DFN package suitable for compact PCB assembly.
It has a maximum continuous forward current of 200 mA and peak surge current of 600 mA.
The diode offers a low forward voltage drop of 1 V for efficient switching.
Operating temperature ranges from -65°C to 125°C ensuring robust performance.
Features fast peak reverse recovery time of 5 ns ideal for high-speed switching applications.
Complies with automotive standard AEC-Q101 for reliability in automotive electronics.
The diode has very low peak reverse current of 2 μA minimizing leakage losses.
Manufactured in China with new production condition.

Product Description

DiodesZetex BAT54LP-7 is a high-quality Schottky barrier switching diode designed for surface mount applications. It supports a maximum continuous forward current of 200 mA with a peak repetitive reverse voltage of 30 V, making it suitable for low-current fast switching circuits in the electronics industry.

Housed in a compact 2-pin DFN package measuring 1.08 mm by 0.68 mm by 0.48 mm, this diode is ideal for space-constrained PCBs. Its low forward voltage drop of 1 V enhances circuit efficiency by reducing power loss during operation. The device has a peak surge current rating of 600 mA and exhibits a very short peak reverse recovery time of 5 nanoseconds facilitating fast switching operations.

Temperature tolerance ranges from -65°C up to 125°C, which, along with its compliance to automotive standard AEC-Q101, makes it reliable for both automotive and industrial electronics applications. The peak reverse current of only 2 microamperes ensures minimal leakage, improving overall performance and power savings.

Typical applications include power supply, switching regulators, and general purpose rectifier use in both industrial and consumer electronics manufacturing. The diode’s small footprint helps in automated PCB assembly lines, increasing manufacturing efficiency.

This diode is designed with a 2-pin DFN surface mount package. Featuring a maximum continuous forward current of 200 mA. Peak reverse voltage is 30 V ideal for switching applications. Low forward voltage drop of 1 V enhances efficiency.

Fast peak reverse recovery time of 5 ns for high-speed switching. Meets AEC-Q101 automotive standard for reliability. Compact size: 1.08 mm length, 0.68 mm width, 0.48 mm height. Operating temperature range from -65°C to 125°C.

Manufactured in China under new condition standards. Explore more electronic components and Schottky Diodes at EnvMart for your industrial, automotive, and manufacturing needs.
