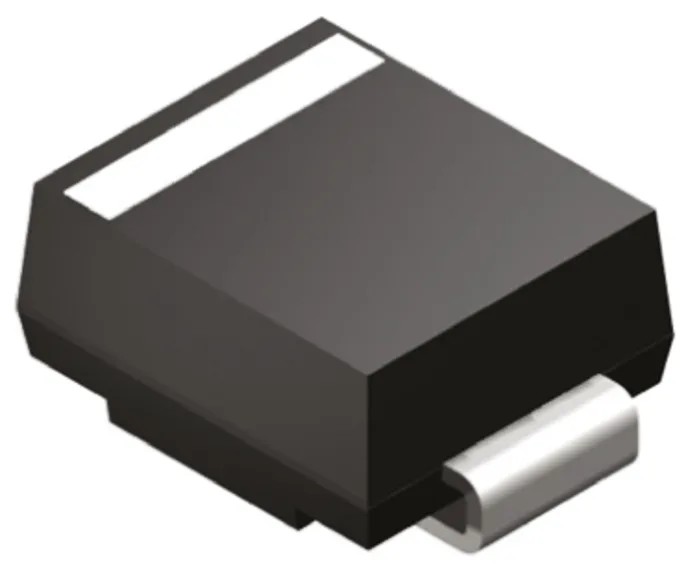

DiodesZetex Surface Mount Schottky Diode DO-214AA Package 30 V 3 A B330B-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.3mm |
| Length | 4.57mm |
| Model | B330B-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | B330B |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Rated for maximum continuous forward current of 3 amperes.
- Supports peak reverse repetitive voltage of 30 volts.
- Features a low maximum forward voltage drop of 500 millivolts.
- Operates reliably over a temperature range from -55°C to 150°C.
- Package dimensions approximately 4.57 mm length, 3.94 mm width, and 2.3 mm height.
- Complies with automotive standard AEC-Q101 for enhanced reliability in automotive applications.
- Pin count includes 2 pins designed for efficient surface mounting.
- Peak non-repetitive forward surge current capability of 100 amperes.
Product Description
DiodesZetex B330B-13-F is a surface mount Schottky diode designed to provide low forward voltage drop and high efficiency in rectifier applications. Packaged in a compact DO-214AA 2-pin format, it is suitable for integration into modern electronic circuits requiring fast switching and low power loss.
This diode features a maximum continuous forward current rating of 3 A and peak reverse repetitive voltage capability of 30 V. Its maximum forward voltage is low at 500 mV, enhancing efficiency and reducing heat generation in power conversion tasks.
Engineered for durability, this device withstands operating temperatures ranging from -55°C to 150°C, making it appropriate for demanding environments including automotive and industrial uses. Additionally, it complies with the AEC-Q101 automotive quality standard, ensuring reliability under automotive stress conditions.
The diode's dimensions are compact, with a length of 4.57 mm, width of 3.94 mm, and height of 2.3 mm, fitting easily on PCBs with surface mount technology.
Typical applications include power supplies, voltage clamping, reverse polarity protection, and rectification within DC-DC converters and power management modules. Its single diode configuration supports streamlined designs requiring Schottky barrier rectification.
The package contains this single diode ready for reel-based manufacturing insertion, facilitating automated assembly processes in high-volume production. Continuous forward current of 3 A ensures operation in medium power circuits.
Peak reverse voltage of 30 V supports protection against voltage spikes. Low forward voltage minimises power loss and thermal dissipation. Wide operating temperature range suits automotive and industrial standards. Compact DO-214AA package enables space saving on printed circuit boards.
Automotive AEC-Q101 certified for high reliability applications. Two-pin surface mount footprint simplifies PCB layout. Capable of handling surge currents up to 100 A for transient events. Ideal for Schottky diode rectification in switch mode power supplies.
Single diode configuration eases integration and circuit design. Browse additional DiodesZetex Schottky Diodes and Rectifiers at EnvMart for expanded electronic component selections.
