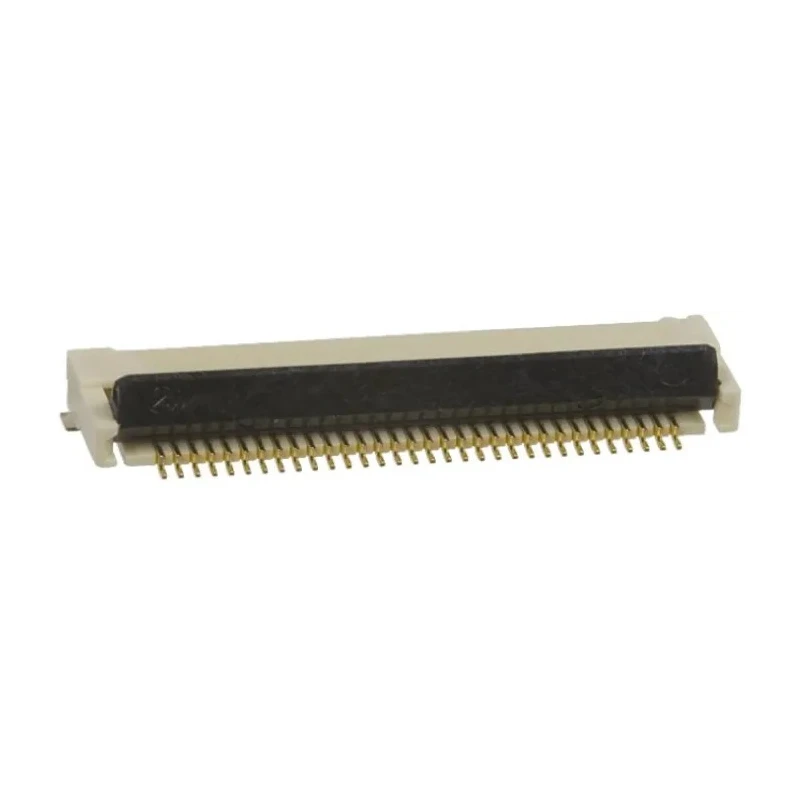

Omron FPC Connector 0.5 mm Pitch 32 Way Right Angle Female Dual Contact XF2M

Omron XF2M-3215-1A is a precise 0.5 mm pitch FPC Connector featuring 32 female contacts in a single row with dual top and bottom contact points. The right angle orientation and low 2 mm on-board profile make it ideal for compact electronic designs requiring a secure and reliable connector solution.

The connector incorporates a rotary backlock locking mechanism which facilitates ease of installation, prevents disconnection due to vibration or mechanical stress, and supports assembly efficiency. It is constructed with a liquid crystal polymer housing that meets UL94V-0 flammability standards, ensuring high safety and durability.

Contacts are made from beryllium copper with nickel plating and finished with gold plating for excellent conductivity and resistance to oxidation. The connector supports a 0.3 mm FPC thickness and has side entry SMT terminals compatible with surface mounting technology.

This connector is designed for a wide range of industrial and commercial applications, including electronic devices like digital cameras, smartphones, portable audio and video players, DVD players, and digital video cameras. It is suitable for use in manufacturing, electronics assembly, and repair facilities focused on small mobile device products.

Low 2 mm on-board profile for slim device designs. Rotary backlock mechanism enhances mechanical stability. Gold plated beryllium copper contacts provide reliable electrical performance. Liquid crystal polymer housing ensures high flame resistance.

Designed for 0.3 mm FPC thickness and SMT mounting. Wide operating temperature range of -30°C to 85°C. Compatible with compact mobile and consumer electronics. Explore Omron connectors and related electronics components at EnvMart, your source for professional and industrial-grade electronic hardware.
