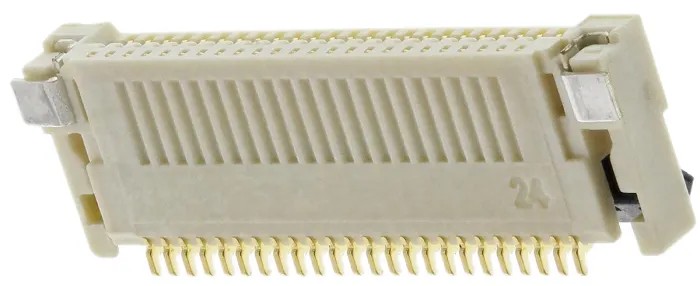

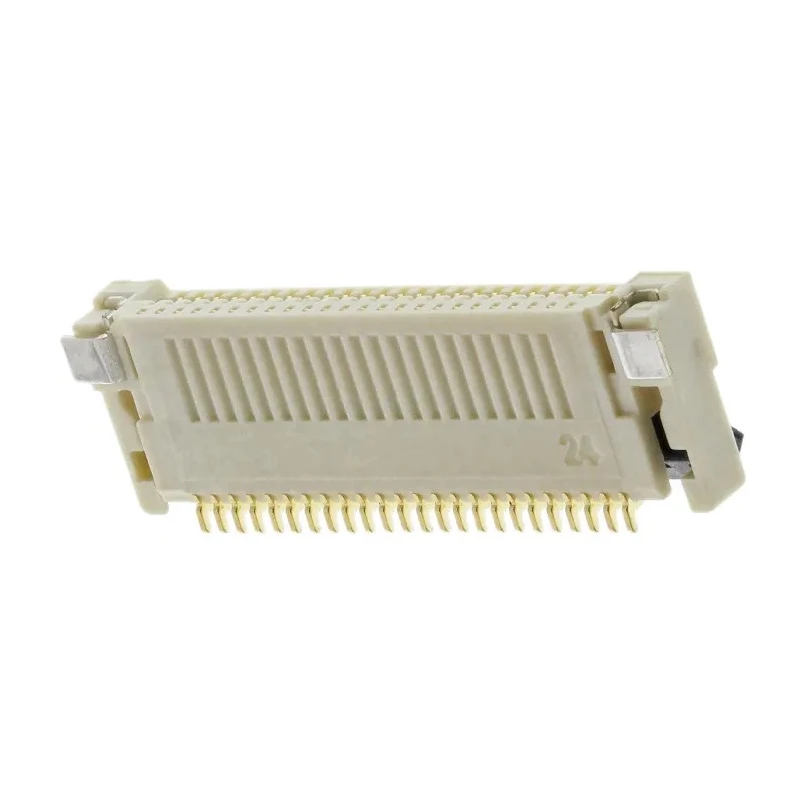

Omron FPC Connector 0.5 mm Pitch 24 Way Right Angle Female Solder XF2M
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Nickel |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-5794Brand: OmronManufacturers Part No.: XF2M-2415-1A |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Equipped with a rotary backlock mechanism to ensure secure FPC mounting.
- Low profile design with a 2 mm on-board height for compact assembly.
- Constructed with Liquid Crystal Polymer (LCP) housing resistant to high temperatures.
- Supports 0.3 mm FPC thickness with single row double-sided gold plated contacts.
- Rated for 50 V AC, 500mA current, suitable for small electronic devices.
- Halogen free and RoHS compliant construction.
- Operating temperature range from -30°C to 85°C for wide environmental adaptability.
- Surface mount technology (SMT) with side entry for efficient PCB assembly.
Product Description
Omron XF2M-2415-1A FPC Connector is a precision low profile 0.5mm pitch 24 way right angle female solder type connector designed for use in electronics components such as digital cameras, mobile phones, and digital audio and video players.
This connector features a rotary backlock mechanism to provide improved contact reliability and easy operation during assembly. The housing and slider are made from Liquid Crystal Polymer (LCP) resin with UL94V-0 flammability rating, ensuring durability and safety in demanding applications.
With surface mount side entry SMT terminals and dual contact positions, it supports a 0.3mm FPC thickness and features a single row of gold plated beryllium copper nickel contacts, ensuring excellent electrical conductivity.
Rated at 50V AC and 500mA current, this connector is ideal for compact and reliable connections in small mobile devices. Rotary backlock mechanism ensures secure and reliable FPC mounting. Low 2 mm on-board profile saves PCB space in compact assemblies.
Housing constructed from flame retardant liquid crystal polymer for thermal stability. Gold plated contacts provide corrosion resistance and reliable signal transmission. Compatible with 0.3 mm flexible printed circuit (FPC) thickness.
Wide operating temperature range from -30°C to 85°C supports harsh environments. Halogen-free materials for environmentally friendly manufacturing. Female connector with right angle orientation for tight space PCB layouts.
These connectors are widely used in industrial, electronics manufacturing, mobile communications, and consumer electronics applications. Discover the full range of Omron connectors and accessories in EnvMart for enhanced design and assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm.
The maximum operating temperature is 85°C.
It is rated for a current of 500 mA.
This model utilizes surface mount technology (SMT).
The housing is made from Liquid Crystal Polymer (LCP), and the contacts are made from beryllium copper nickel with gold plating.
The connector has a right angle orientation.
This model features 24 contacts.
The minimum operating temperature is -30°C.
Yes, it is constructed from halogen-free materials.
It is suitable for use in small electronic devices such as digital cameras and mobile phones.
Yes, it features dual contact positions for improved connection reliability.
It supports a thickness of 0.3 mm for flexible printed circuits (FPC).
