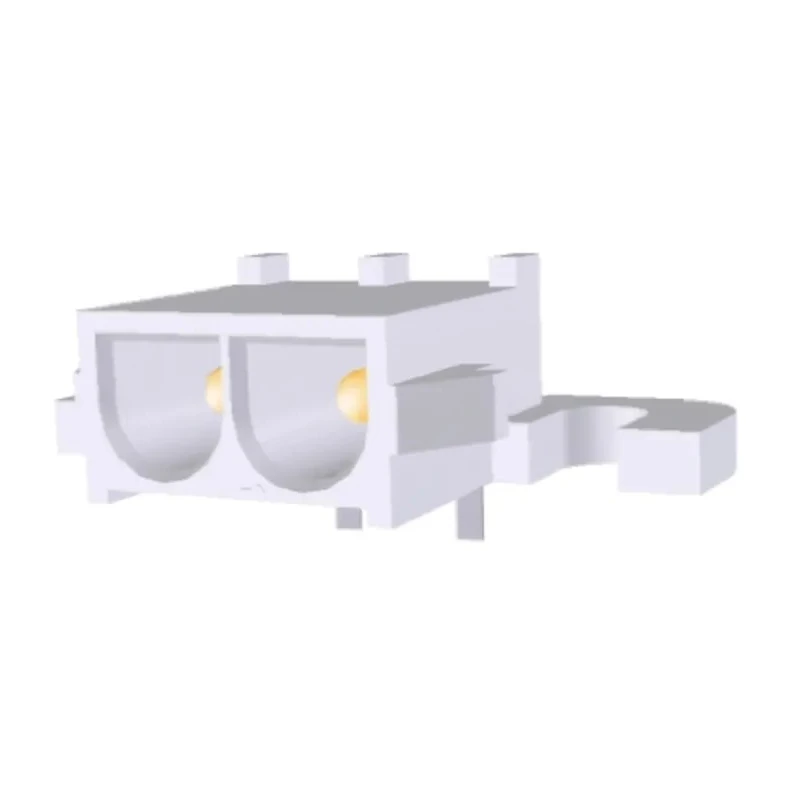

TE Connectivity Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 2 Contact 6.35 mm Pitch 1 Row 3-350942-0

TE Connectivity 3-350942-0 is a Universal MATE-N-LOK Series right angle through hole PCB header designed for reliable power and signal connections. It features a 2-contact configuration with a 6.35 mm pitch arranged in a single row, engineered for wire-to-board applications in demanding industrial, automotive, and electronic equipment environments.

The connector housing is manufactured from durable nylon material providing excellent electrical insulation and mechanical strength. The male contacts are crafted from phosphor bronze with gold plating to ensure high conductivity and resistance to corrosion, making this header suitable for current loads up to 19A and voltages up to 600V.

This header's right angle orientation and through hole mount type allow for secure PCB connections with tail pins measuring 3.05 mm in length, terminated via soldering for robust electrical and mechanical joint integrity. The shrouded design protects contacts against accidental damage and improves mating consistency.

Operating temperature range from -55°C to 105°C ensures dependable performance under diverse environmental conditions commonly encountered in industrial, construction, HVAC, manufacturing, and automotive applications.

The product is compatible with both Universal MATE-N-LOK and Universal MATE-N-LOK II plug housings, offering versatile modular connectivity options for engineers and designers. While it does not carry formal standards or approvals, its construction quality and materials meet industrial expectations.

Engineers benefit from design software available from TE Connectivity and DesignSpark tools providing 3D models and PCB footprint libraries for seamless integration into their CAD systems.

EnvMart recommends this product for power connector applications requiring high-current PCB headers with reliable right angle mating in commercial and industrial electronic assemblies.

Constructed with a nylon housing that provides robust insulation and durability. Features phosphor bronze male contacts with gold plating for excellent conductivity and corrosion resistance. Supports a current rating of 19A and maximum voltage of 600V suitable for power connector applications.

Designed for wire-to-board connection and terminated by soldering through hole pins measuring 3.05 mm in length. Operates reliably across temperatures from -55°C up to 105°C ensuring versatility in industrial environments.

The shrouded right angle orientation enhances connector protection and mating reliability. This header complies with no specific standards or approvals but is engineered for industrial and automotive electronic connectivity.

Compatible with Universal MATE-N-LOK and Universal MATE-N-LOK II plug housings for flexible configuration options. Explore more power connectors and PCB Headers from TE Connectivity at EnvMart for advanced industrial and electronic component solutions.
