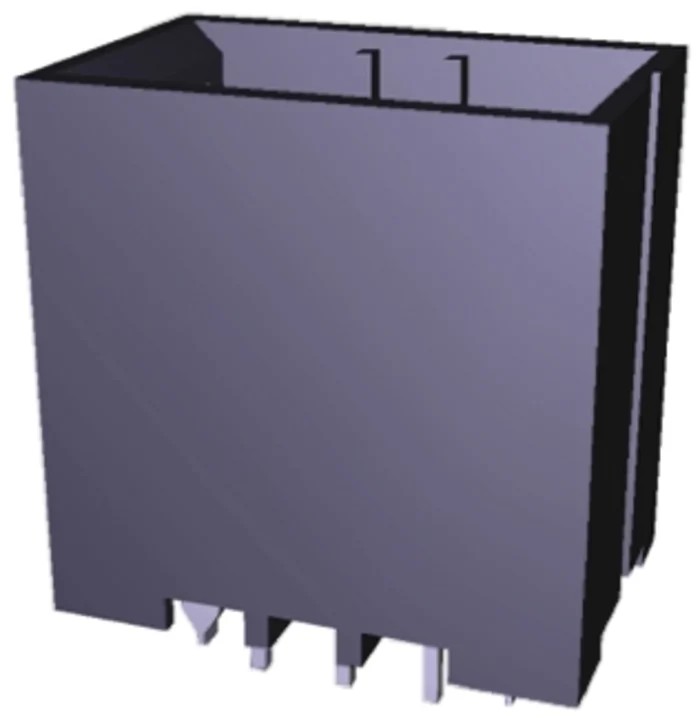

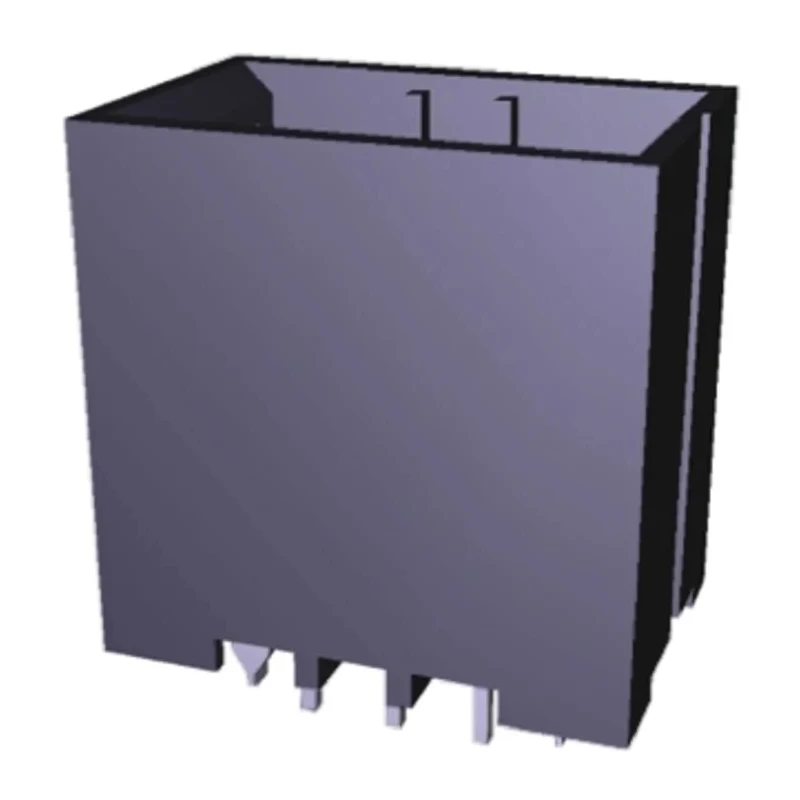

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 1 Row, Shrouded 1-178316-5

TE Connectivity 1-178316-5, part of the Dynamic 3000 Series, is a straight through hole PCB header designed to provide a reliable wire-to-board connection in demanding electronic applications. This model features 6 contacts arranged in a single row with a 3.81 mm pitch, shrouded to protect contacts during connection and prevent accidental damage.

The housing is constructed of glass filled polyester, providing excellent insulation and mechanical stability. Contact material is copper alloy plated with tin, offering dependable electrical conductivity and corrosion resistance. The header supports a current rating of 10A and operates up to 250V, making it suitable for a variety of power and signal applications.

Engineered for through-hole mounting, it fits PCBs with thickness from 1.0 to 1.6 mm. The solder termination ensures strong mechanical and electrical connection with the PCB. The operating temperature range of -55°C to 105°C allows usage in harsh industrial and electronic environments.

Application areas include industrial automation, electronic manufacturing, power distribution, and control systems where secure and durable PCB connectors are required. The shrouded design and male contact gender minimize mating errors and enhance connector longevity.

This specific model, 1-178316-5, ensures compliance with TE Connectivity’s quality standards. It is sourced from China and sold in tubes to facilitate efficient production insertion processes. It is a new product designed for use in electronic components, power connectors segment, and particularly PCB header applications.

The header uses a high-quality glass-filled polyester housing. Copper alloy contacts plated with tin guarantee electrical performance. Supports up to 10A current at 250V voltage. Suitable for PCB thickness between 1.0 mm and 1.6 mm.

Operating temperature range from -55°C to 105°C. Shrouded one-row 6-contact layout with 3.81 mm pitch. Connector system is wire-to-board with through-hole mount. Features male contact gender with solder termination type.

Applicable for industrial, electronics assembly, manufacturing, and power connector use cases. For more related products, explore the TE Connectivity category on EnvMart for trusted electronic components and connectors.
