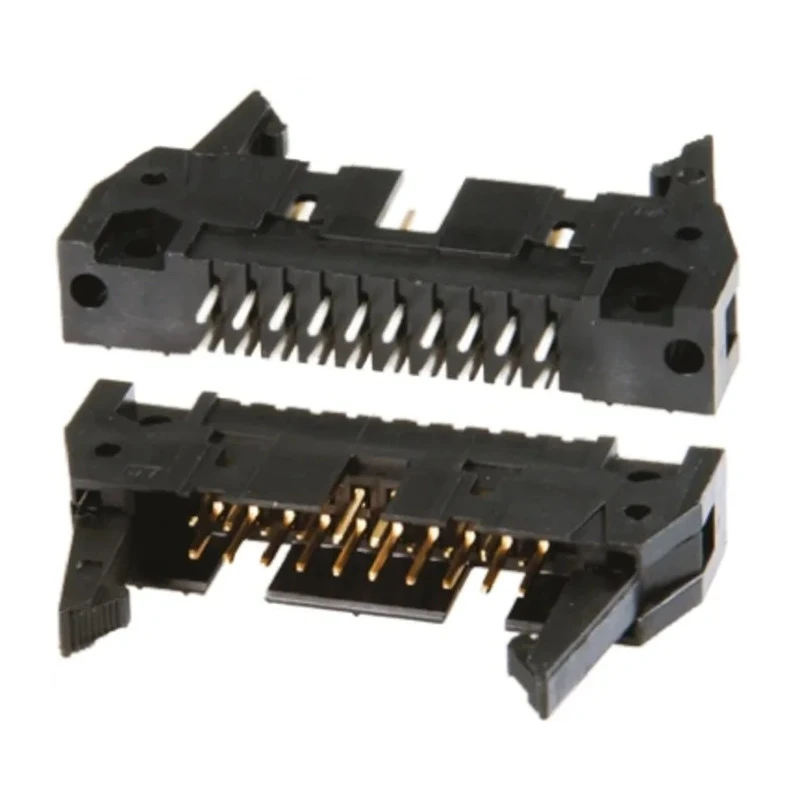

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 5102321-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-8779Brand: TE ConnectivityManufacturers Part No.: 5102321-4 |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 20 contacts arranged in 2 rows with 2.54 mm pitch for precise PCB mounting.
- Constructed with thermoplastic housing and brass contacts plated with gold for durability.
- Designed as a male, wire-to-board connector with through hole mount type.
- Operates reliably over temperature range from -55°C to 105°C and voltage rating up to 250 V.
- Incorporates AMP-LATCH ejection style with options for long or short ejector latches to enable secure mating and easy removal.
- Suitable for use in industrial, medical, networking, and electrical testing equipment applications.
- Through hole construction ensures robust solder termination and mechanical stability.
- Shrouded design offers protection against misalignment and damage.
Product Description
TE Connectivity 5102321-4 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality, shrouded PCB connector featuring 20 gold-plated brass contacts arranged in 2 rows at a 2.54 mm pitch. Designed for reliable wire-to-board connection, this PCB header supports a current rating of 1A and voltage rating of 250V, operating across a wide temperature range from -55°C up to 105°C.
The connector housing is made from sturdy thermoplastic material, ensuring durability and electrical insulation. The AMP-LATCH series offers universal ejection latches, including long and short latch options that provide secure mating with IDC ribbon cable receptacle connectors while enabling easy disconnection. These features prevent strain and damage to connectors in demanding industrial environments.
Thanks to its through hole mount type, this PCB header provides robust mechanical fixation and excellent solder termination, making it suitable for a range of applications including PCs, business equipment, medical devices, storage and networking systems, industrial controls, appliances, and electrical test setups.
The male contact gender and shrouded design aid in accurate mating, reducing the risk of bent pins and connector damage. The AMP-LATCH series complies with quality standards suitable for critical electronic assemblies.
20 contacts arranged in 2 rows at 2.54 mm pitch ensure compact, precise PCB integration. Thermoplastic housing and gold-plated brass contacts deliver durability and reliable electrical performance. Ejector latches in AMP-LATCH style secure connections and facilitate maintenance.
Through hole mount style for reliable soldering and mechanical stability. Temperature range from -55°C to 105°C enables use in harsh environmental conditions. Current rating of 1A and voltage rating of 250V meet common industrial electronic standards.
Widely applied in medical equipment, industrial controls, networking, and test instruments. Explore the full range of TE Connectivity PCB connectors and headers on EnvMart for advanced electronic component solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a current rating of 1A.
The voltage rating for this connector is 250V.
The contacts are arranged in 2 rows with a pitch of 2.54 mm.
The housing is made from thermoplastic, and the contacts are brass plated with gold.
It operates reliably over a temperature range from -55°C to 105°C.
This model features a through hole mount type, ensuring robust solder termination.
It utilizes a wire-to-board connector system.
The header features 20 contacts arranged in 2 rows.
This model is suitable for use in industrial, medical, networking, and electrical testing equipment applications.
It uses solder termination for secure connections.
The contacts in this header are male.
The shrouded design and AMP-LATCH ejection style enhance reliability by preventing misalignment and allowing secure mating.
