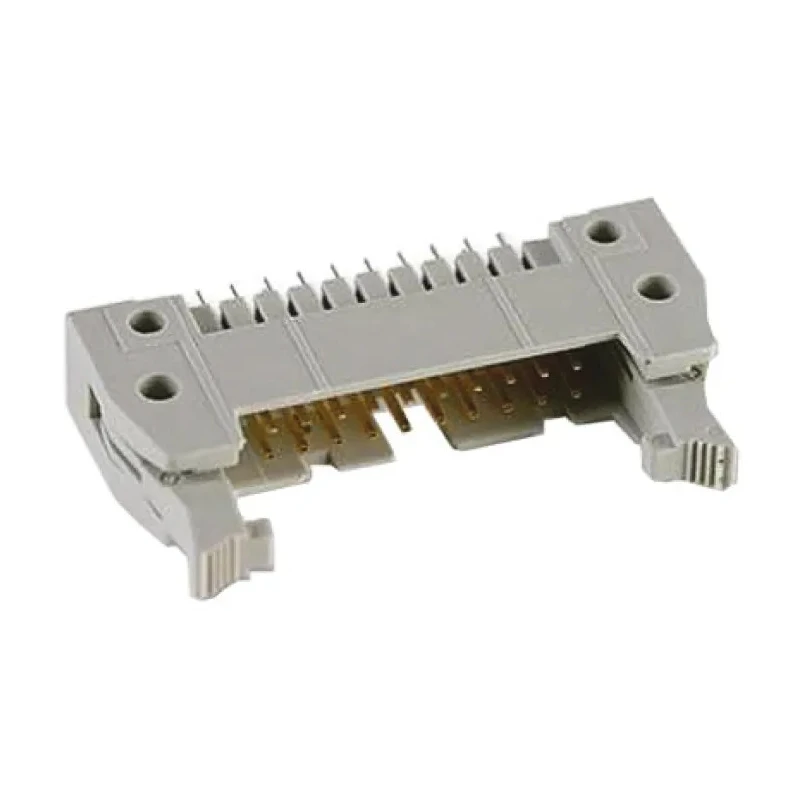

HARTING SEK 18 Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 09185207904

HARTING 09185207904 PCB Header is a precision-engineered electronic component designed for through-hole mounting on printed circuit boards (PCBs). Featuring 20 male contacts arranged in 2 rows with a standard 2.54 mm pitch, this shrouded header ensures secure and reliable connections in various electrical assemblies.

The housing is constructed from high-quality Polybutylene Terephthalate, providing excellent mechanical strength and thermal stability. The contacts are made of copper alloy with gold plating to maximize conductivity and corrosion resistance. Rated for 1 Ampere with a maximum operating voltage of 500 Volts, it is suitable for demanding industrial and electronic applications.

Operating temperature ranges from -55°C to 125°C make it adaptable for harsh environments. This product supports wire-to-board connection systems and features solder termination for dependable mechanical and electrical attachment to PCBs.

The shrouded design protects contacts, reducing damage risk, and aiding alignment during assembly. The 2-row configuration with a 2.54 mm row pitch conforms to standard PCB footprints, enabling compatibility with wide varieties of electronics equipment.

Typical applications include use in power connectors, electronic components manufacturing, and industrial assembly lines where consistent electrical connection and durability are critical.

Features straight through-hole mounting for robust PCB connectivity. 20 gold-plated copper alloy male contacts ensure reliable signal transmission. Constructed with durable Polybutylene Terephthalate housing material for extended lifespan.

Rated for 1A current and 500V voltage with a temperature range from -55°C to 125°C. Designed for wire-to-board connector systems with solder termination type. Row pitch is 2.54 mm, matching standard PCB layouts. Shrouded housing provides protection and prevents misalignment during assembly.

Suitable for use in electronic components, power connectors, and industrial applications.

This product is part of the HARTING SEK 18 series, known for high performance and reliability in electronic assemblies. Explore the full range of PCB Headers and connectors for compatible solutions through EnvMart.
