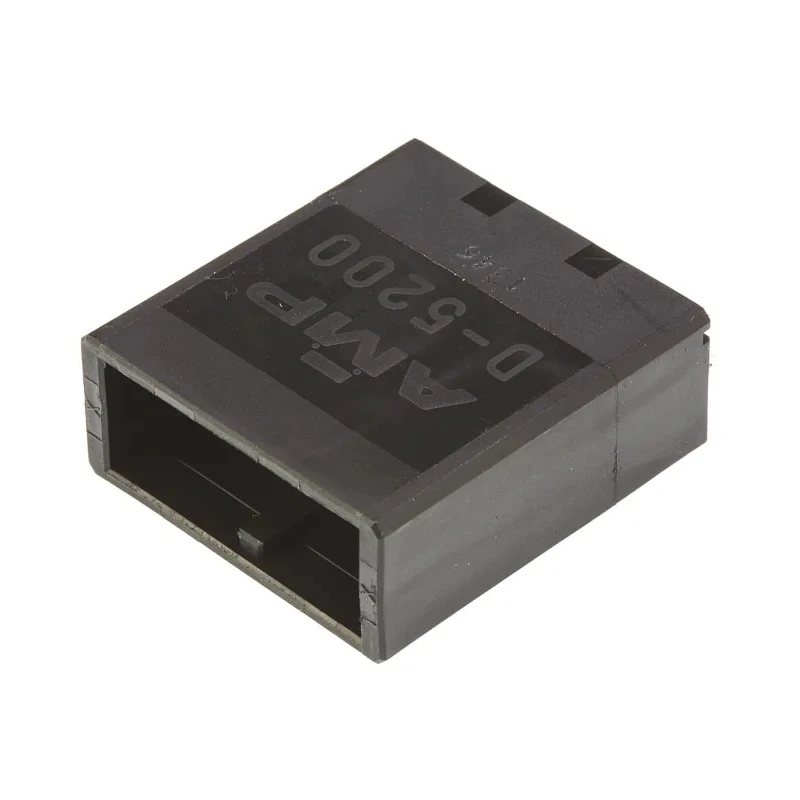

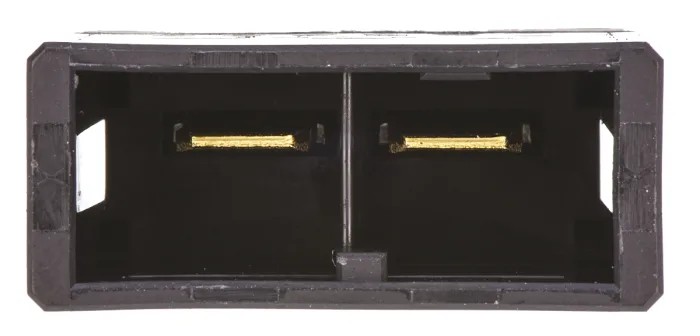

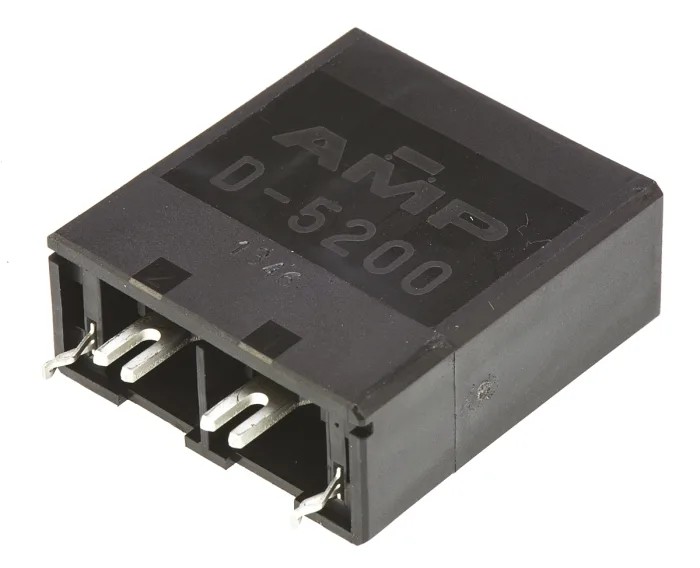

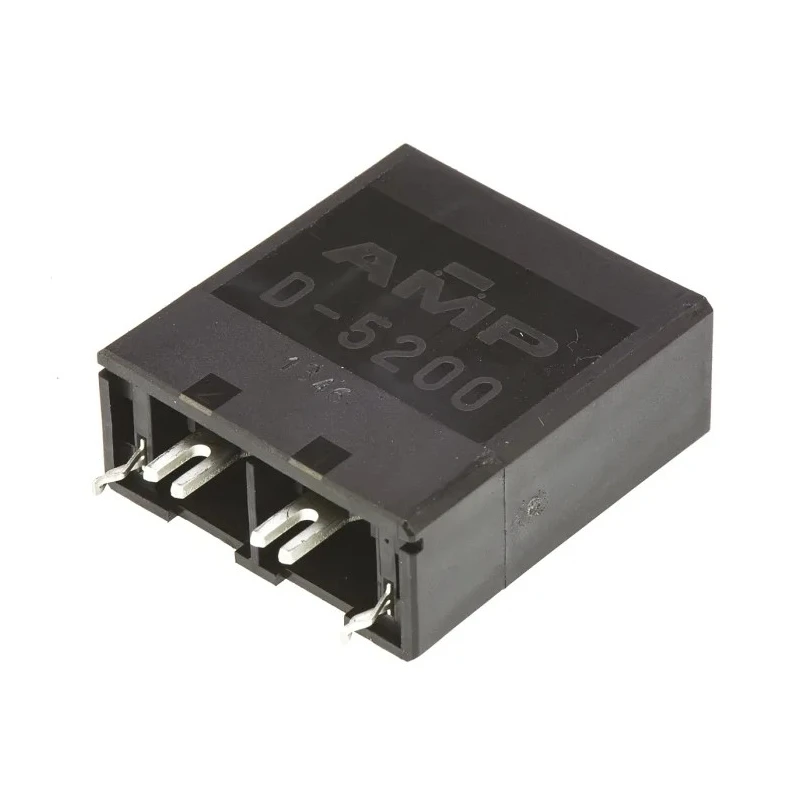

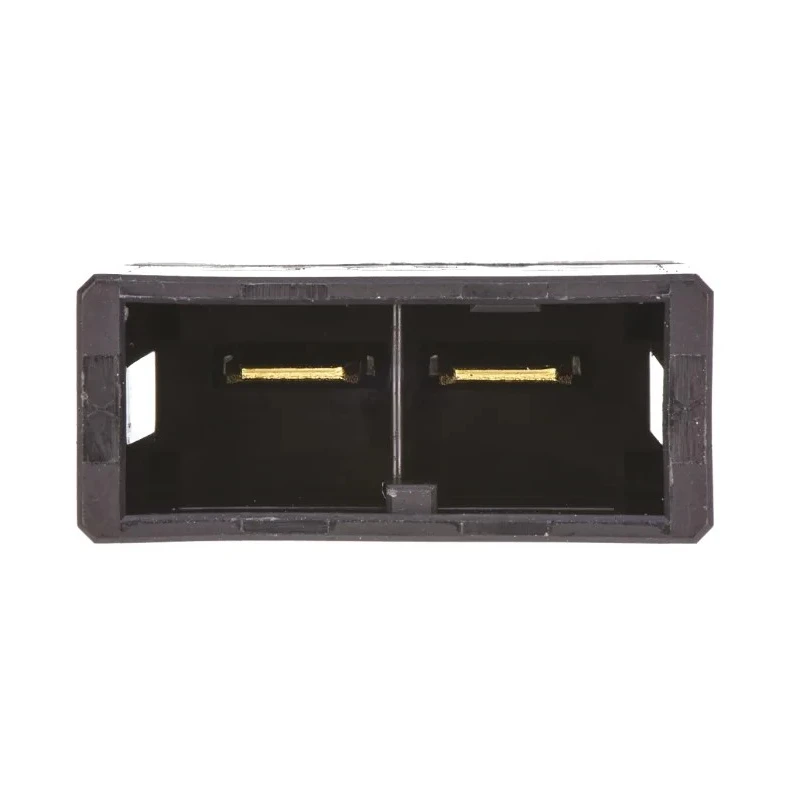

TE Connectivity Dynamic 5000 Series Straight Through Hole PCB Header, 2 Contact, 10.16 mm Pitch, 1 Row, Shrouded 1-353080-2

TE Connectivity 1-353080-2 Dynamic 5000 Series Straight Through Hole PCB Header is a high-performance electronic connector designed for demanding applications. It features 2 male copper alloy contacts with gold plating to ensure excellent conductivity and corrosion resistance. The housing is made of durable glass filled polyester material, which is shrouded for enhanced insulation and protection.

This PCB header has a pitch of 10.16 mm between contacts arranged in a single row, compatible with D-5200 series housings. The through hole mount type allows secure solder connection to printed circuit boards, suitable for wire-to-board connector systems in industrial electronics.

The connector is rated for a current of 30A and voltage up to 630V, capable of operating reliably within a wide temperature range of -65°C to 105°C. Contact terminations use soldering for a stable electrical connection. It is designed to meet rigorous industrial and electronic equipment standards, although it carries no special certifications.

This part is ideal for applications in industrial machinery, electronic components manufacturing, power distribution equipment, and laboratory instrumentation requiring robust PCB interconnections. The connector’s materials and plating ensure long-term durability and reliable performance in harsh conditions.

MECHANICAL DETAILS:. The header includes a retention leg plated with tin for enhanced mounting stability on PCB surfaces. The recommended PCB thickness for mounting these headers is between 1.6 mm and 2.4 mm.

PACKAGE CONTENTS:. The item is supplied in a tube for ease of handling and insertion efficiency during production. Designed for wire-to-board PCB connection with through hole mount type. Features a glass filled polyester shrouded housing for durability.

Contains 2 male contact copper alloy pins plated with gold for excellent conductivity. Rated for 30A current and 630V voltage operation. Operates reliably from a minimum temperature of -65°C up to a maximum of 105°C. Contact tabs are gold plated and solder terminated for stable electrical performance.

Pitch between pins is 10.16 mm, arranged in a single row format. Part of the Dynamic 5000 series, ensuring compatibility with D-5200 series housings. Suitable for industrial, electronic power connector, and laboratory applications.

Housing and contact materials support long-term mechanical and electrical stability.
