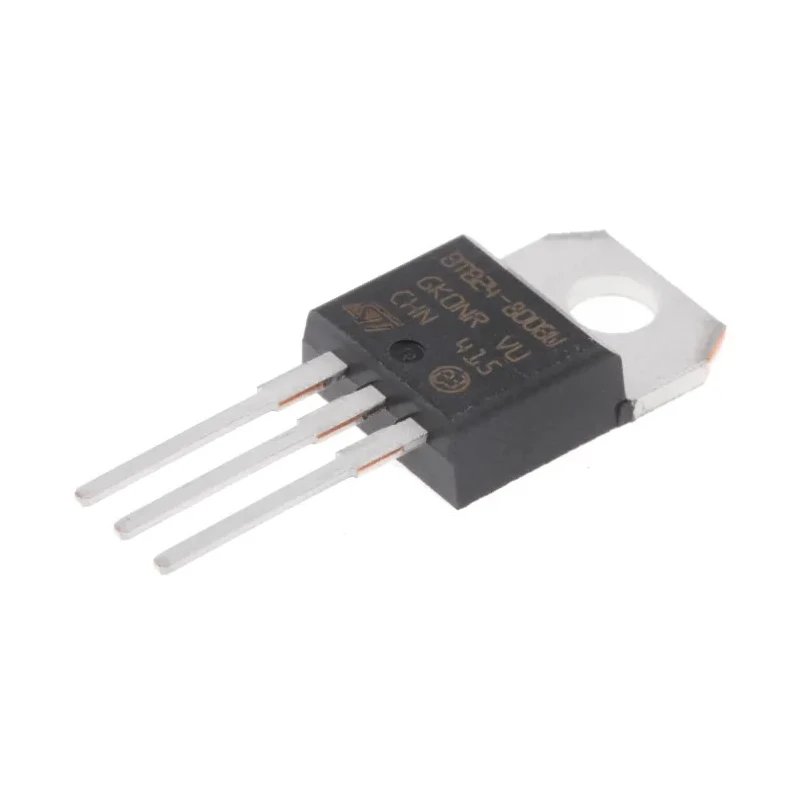

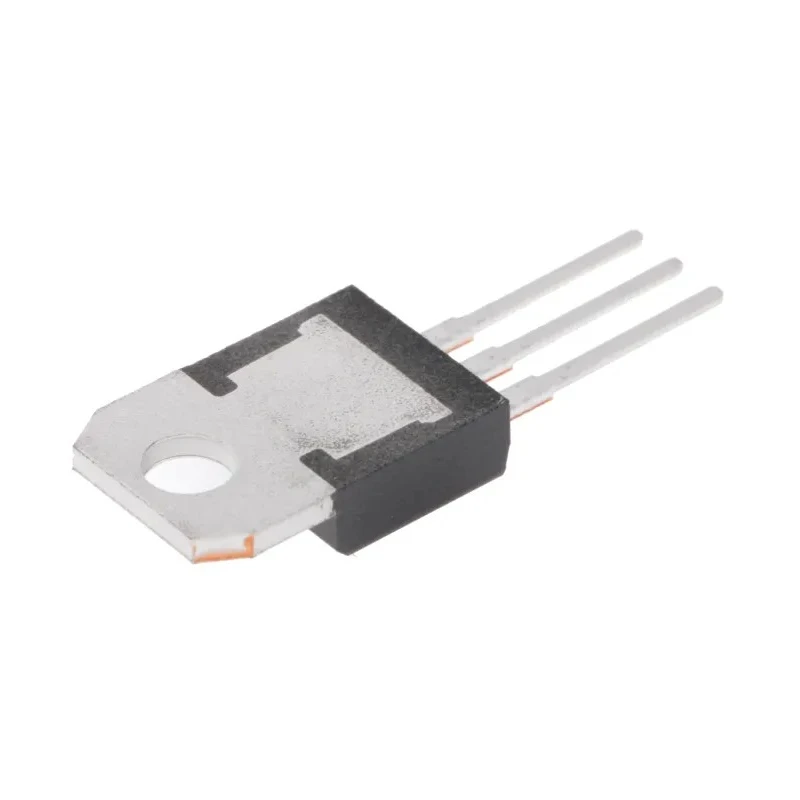

STMicroelectronics Through Hole 3-Pin TRIAC, 800 V Repetitive Peak Reverse Voltage, Gate Trigger 1.3 V BTB24-800BWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | BTB24-800BWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-2631Brand: STMicroelectronicsManufacturers Part No.: BTB24-800BWRGDistrelec Article No.: 304-43-851 |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Features a single configuration with 3 pins for through hole mounting.
- Supports a surge current rating of 260A ensuring high power durability.
- Maximum gate trigger current is 50mA for effective triggering control.
- Operates within a temperature range of -40°C to 125°C for varied environments.
- Constructed in TO-220 package type offering reliable thermal dissipation.
- Low peak on-state voltage of 1.55V enhances efficiency.
- Maximum holding current is 75mA ensuring stable conduction.
- Repetitive peak off-state current only 5μA minimizing leakage losses.
Product Description
STMicroelectronics BTB24-800BWRG is a through hole mounted TRIAC semiconductor device featuring 3 pins. It offers a rated average on-state current of 25A and a repetitive peak reverse voltage of 800V. The device triggers at a gate voltage of 1.3V and can handle surge currents up to 260A, making it suitable for robust switching applications. Its maximum gate trigger current is 50mA and it maintains stable conduction with a maximum holding current of 75mA.
The TRIAC's TO-220 package provides efficient thermal management with dimensions of 9.15 mm in height and 10.4 mm in length, suitable for compact electronic assemblies. It operates reliably within a temperature range from -40°C to 125°C, ensuring durability in industrial and commercial electronic equipment.
This semiconductor component has a peak on-state voltage of 1.55V and very low repetitive peak off-state current of 5μA, contributing to power efficiency and minimal leakage. The BTB24-800BWRG does not carry specific automotive standards but is designed for various applications requiring precise AC switching.
Three-pin configuration for easy through hole mounting. High surge current capability ensures reliable operation under transient conditions. Wide operating temperature range suitable for industrial environments. Compact TO-220 package type for space-constrained designs.
Low gate trigger voltage and current for efficient gate activation. Ideal for power control and switching in electronic circuits. Minimal leakage current reduces power loss during off states. Durable design supporting heavy-duty industrial applications.
Suitable for controlling resistive and inductive loads.
Used extensively in industrial automation, HVAC systems, motor controls, lighting dimming, and other power switching electronic applications. The BTB24-800BWRG combines reliable performance with ease of integration for seamless industrial and commercial deployment.
Explore more components like the BTB24-800BWRG in the Discrete Semiconductors category on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTB24-800BWRG has a maximum repetitive peak reverse voltage of 800V.
This TRIAC has a rated average on-state current of 25A.
It supports a surge current rating of 260A, ensuring high power durability.
The maximum gate trigger voltage is 1.3V, and the maximum gate trigger current is 50mA.
The BTB24-800BWRG is constructed in a TO-220 package type, which offers reliable thermal dissipation.
It operates reliably within a temperature range of -40°C to 125°C.
This TRIAC has a height of 9.15mm and a length of 10.4mm.
The peak on-state voltage of the BTB24-800BWRG is 1.55V.
The maximum holding current is 75mA, ensuring stable conduction.
It has a very low repetitive peak off-state current of 5μA, minimizing leakage losses.
It is suitable for controlling both resistive and inductive loads, making it versatile for various applications.
This TRIAC is extensively used in industrial automation, HVAC systems, motor controls, and lighting dimming applications.
