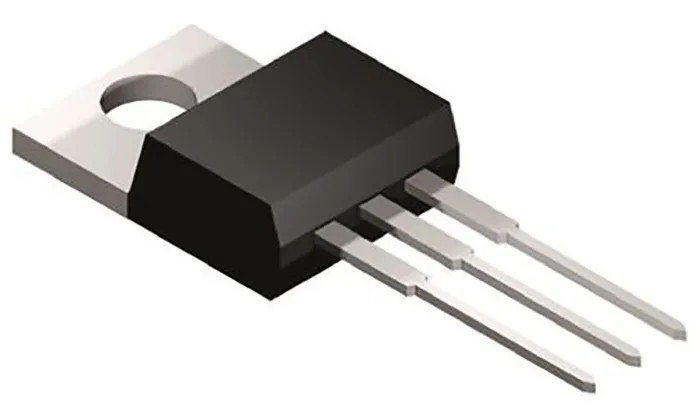

STMicroelectronics Through Hole 3-Pin TRIAC 600 V, Gate Trigger 1.5 V BTB06-600TRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.02mm |
| Length | 10.5mm |
| Model | BTB06-600TRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-2619Brand: STMicroelectronicsManufacturers Part No.: BTB06-600TRG |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 6A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 63A |
| Maximum Gate Trigger Current Igt | 5mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 0.01mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Designed for through-hole mounting with TO-220 package type.
- Maximum gate trigger current is 5 mA for efficient operation.
- Operates reliably from -40°C to 110°C ambient temperature.
- Capable of handling surge current up to 63 A for short periods.
- Low peak on-state voltage drop of 1.65 V ensures power efficiency.
- Features low repetitive peak off-state current of 0.01 mA to minimize leakage.
- Compact device with height 9.02 mm and length 10.5 mm dimensions.
- Maximum holding current of 15 mA guarantees stable triggering.
Product Description
STMicroelectronics BTB06-600TRG is a reliable 3-pin TRIAC designed for through-hole mounting in a TO-220 package, ideal for various electronic and power control applications. This discrete semiconductor device supports up to 6A of rated average on-state current and withstands a repetitive peak reverse voltage of 600 V, making it suitable for industrial, commercial, and consumer electronic designs.
The device features a low gate trigger voltage of 1.5 V and a maximum gate trigger current of 5 mA, enabling efficient triggering and control in circuits. It can operate effectively across a broad temperature range, from -40°C up to 110°C, assuring durability in demanding environments.
Its surge current rating of 63A allows it to handle transient loads, while the peak on-state voltage of 1.65 V ensures minimized conduction losses. With a compact form factor measuring 9.02 mm in height and 10.5 mm in length, the BTB06-600TRG fits well into space-constrained designs.
This TRIAC is a versatile component, widely used in AC power control applications such as dimmers, motor speed controllers, and temperature regulation systems in industrial, HVAC, water treatment, and manufacturing equipment.
Designed for through-hole mounting with TO-220 package format. Rated average on-state current of 6A for moderate power applications. Supports repetitive peak reverse voltage up to 600 V. Offers low gate trigger current of 5 mA for responsive switching.
Operating temperature range from -40°C to 110°C ensures environmental robustness. Compact dimensions of 9.02 mm height and 10.5 mm length facilitate PCB integration. Peak gate power dissipation rated at 1 W for reliable performance.
Repetitive peak off-state current minimal at 0.01 mA reduces leakage. Suitable for use in industrial, laboratory, HVAC, and manufacturing setups.
The BTB06-600TRG TRIAC from STMicroelectronics is a high-quality semiconductor component that meets demanding application requirements. Explore more products in the discrete semiconductor category at EnvMart for your industrial and commercial electronics needs.
Explore more products in our Discrete Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 6A, making it suitable for moderate power applications.
It can withstand a repetitive peak reverse voltage of 600V, which is suitable for various industrial and commercial applications.
The maximum gate trigger voltage is 1.5V and the maximum gate trigger current is 5mA, allowing for efficient triggering in circuits.
This unit operates effectively within a temperature range of -40°C to 110°C, ensuring reliability in various environments.
The surge current rating for this TRIAC is 63A, allowing it to handle transient loads during operation.
This model has a height of 9.02 mm and a length of 10.5 mm, making it compact for PCB integration.
The peak on-state voltage drop is 1.65V, which helps in minimizing conduction losses during operation.
The maximum holding current for this model is 15mA, which ensures stable triggering during operation.
This TRIAC is designed for through-hole mounting, specifically in a TO-220 package format.
The peak gate power dissipation is rated at 1W, ensuring reliable performance during operation.
This model has a pin count of 3, which is standard for TRIAC configurations.
This TRIAC is suitable for AC power control applications such as dimmers, motor speed controllers, and temperature regulation systems.
